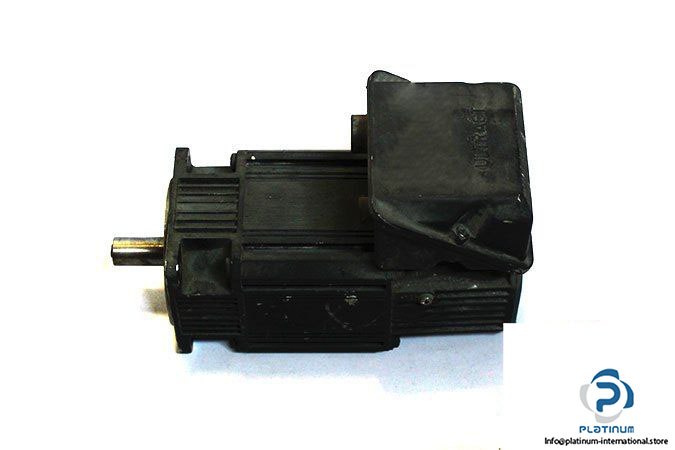

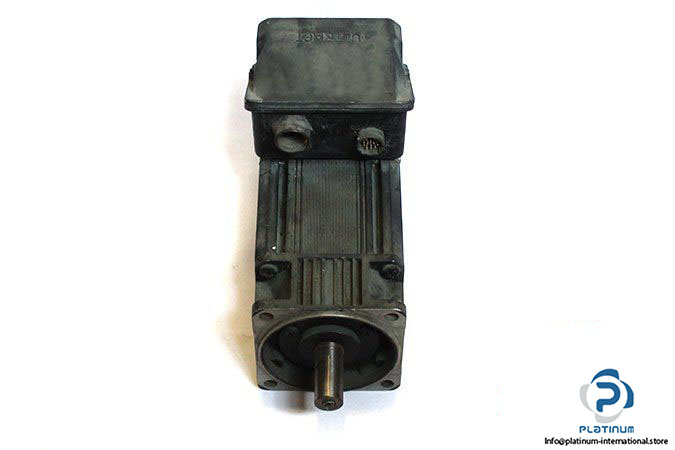

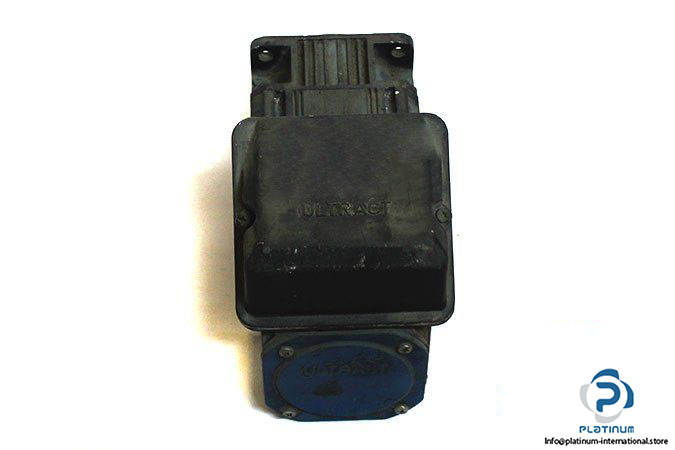

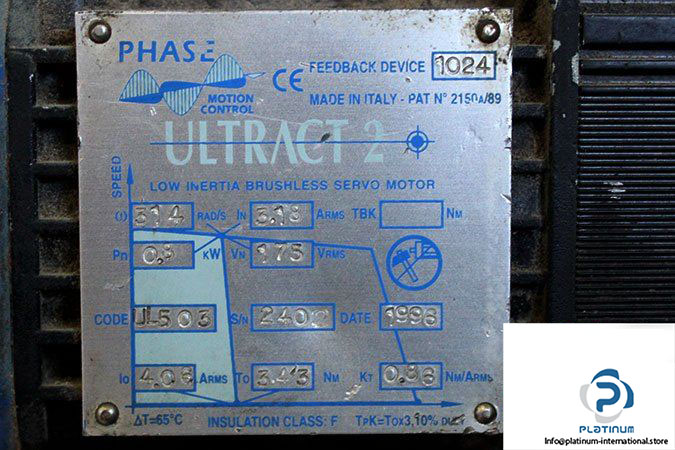

Phase Ultract 2 UL503 Brushless Servo Motor

Manufacturer: Phase Motion Control

Type: Brushless Servo Motor

Code: UL503



Rated Voltage: 175 V

Rated Current: 3.18 A

Stall Current: 4.06 A

Rated Power: 0.8 kW

Stall Torque: 3.43 Nm

Torque Constant: 0.86 Nm/A

Temperature: 65 °C

Insulation Class: F

Weight: 4.94 kg
