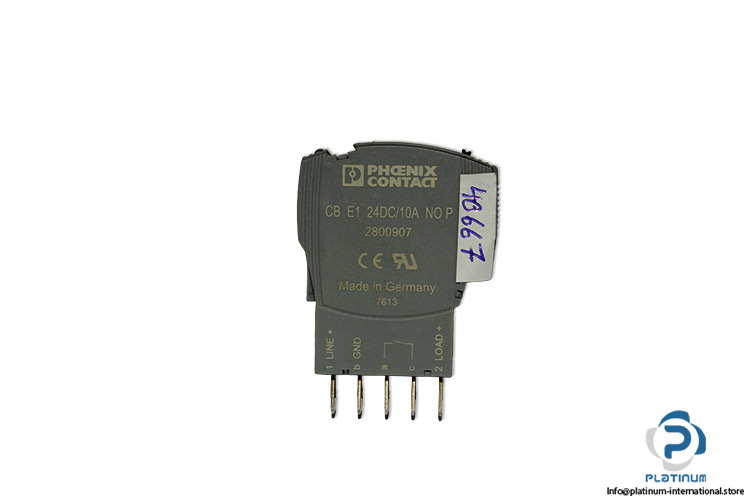

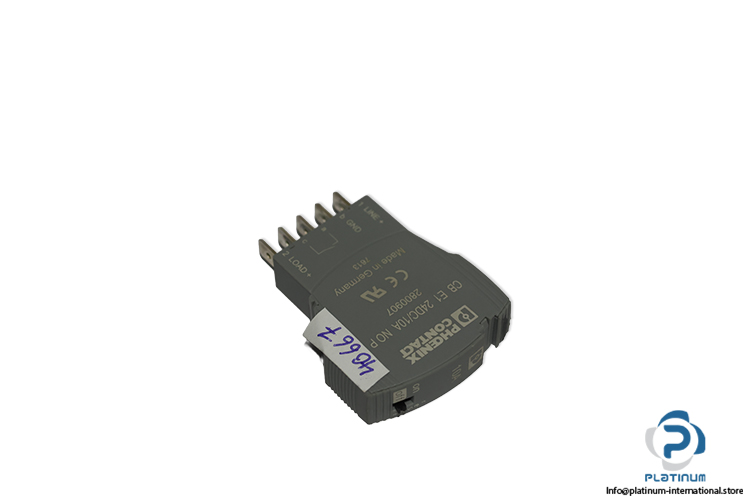

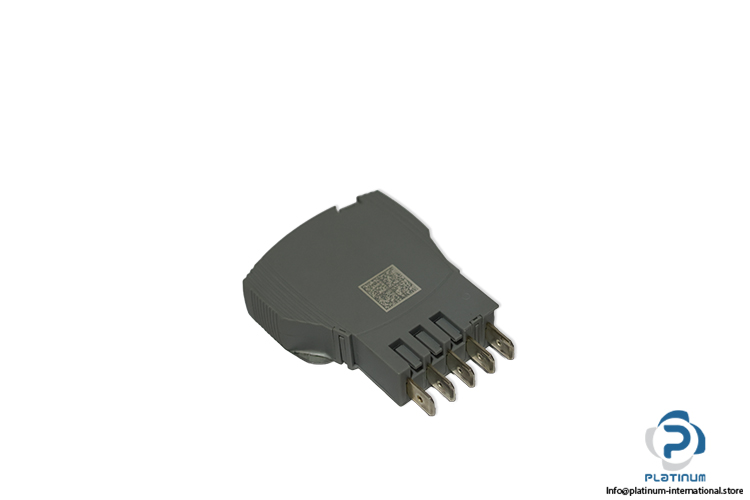

Phoenix Contact CB E1 24DC/10A NO P Electronic Circuit Breaker
Gebraucht
Auf Lager1 EinheitVersandbereit
PHOENIX CONTACT CB E1 24DC/10A NO P electronic circuit breaker, item number 2800907, with 24 V DC operating voltage, 10 A nominal current, electronic tripping, pluggable connection, and IP30 protection for industrial DC circuits.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Item number | 2800907 |
| Operating voltage | 24 V DC 18 V DC ... 30 V DC |
| Nominal current IN | 10 A |
| Rated surge voltage | 0.5 kV |
| Tripping method | E (electronic) |
| Fuse | electronic |
| Closed circuit current I | typ. 8 mA (When switched on) 0/ typ. 17 mA (With alarm output) |
| Power dissipation | 1.61 W (Nominal operation) |
| Fail-safe element | 15 A DC |
| Minimum operating current | 10 mA |
| Max. operating current | 0.5 A |
| Connection method | pluggable |
| Degree of protection | IP30 |
| Ambient temperature | -25 °C ... 50 °C |
| Dimensions | 12.3 x 45 x 52mm |
| Condition | Used |
| Stock key | CON003 |
| SKU | 1105053 |
| Weight | 0,02 |
