Phoenix Contact DEK1.5 Solid-State Relay

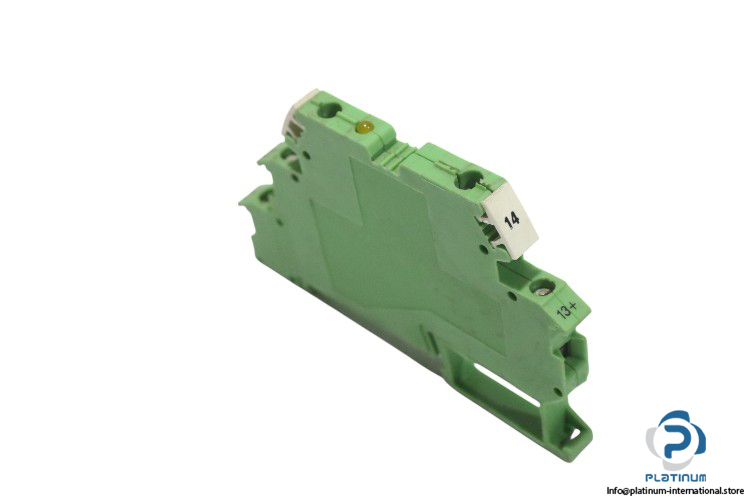

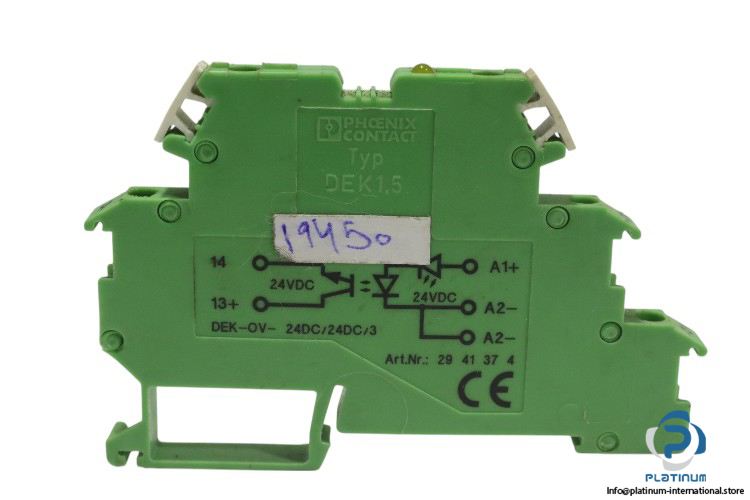

PHOENIX CONTACT DEK 1.5 Solid-State Relay

The PHOENIX CONTACT DEK 1.5 is a compact and efficient solid-state relay designed for reliable signal switching in automation and control systems. With a 24 V DC input and robust performance characteristics, it ensures safe and maintenance-free operation for demanding industrial environments.

Manufacturer: PHOENIX CONTACT

Type: Solid-State Relay

Model: DEK 1.5

Art No.: 29 41 37 4

MNR: DEK-OV-24DC/24DC/3

Technical Data:

• Input Voltage: 24 V DC (19.2 / 28.8 V DC)
• Typical Input Current: 7 mA
• Power (max): 3 mW
• Output Voltage Range: 3 / 30 V DC
• Limiting Continuous Current: 3 A
• Contact Type: 1 N/O contact
• Connection Method: Screw connection
• Operating Temperature: -20 / +60 °C
• Dimensions: 6.2 x 80 x 56 mm
