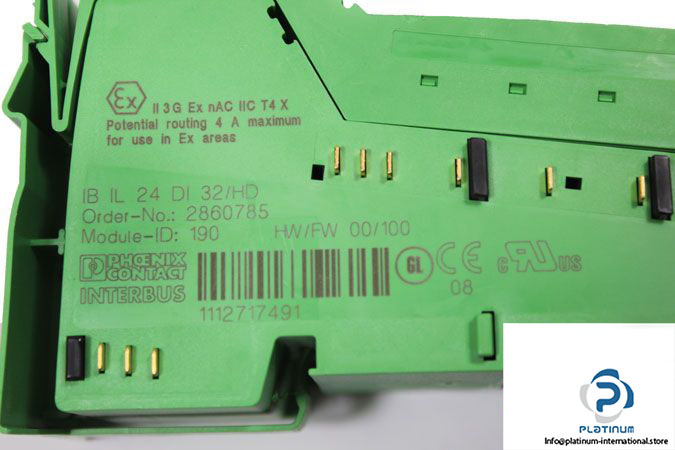

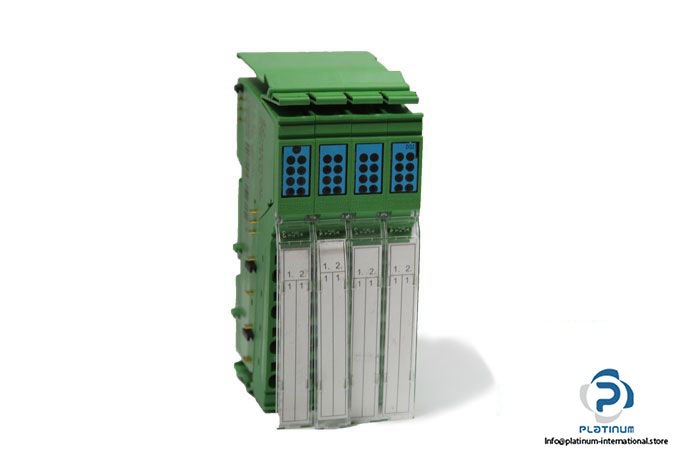

Phoenix Contact IB IL 24 DI 32/HD – 2860785 Inline Terminal
Manufacturer: Phoenix Contact
Type: Inline Terminal
Model: IB IL 24 DI 32/HD
Order No.: 2860785
PAC: IB IL 24 DI 32/HD-PAC – 2862835
Nominal Input Current: 2.8 mA
Input Voltage: 24 VDC
Input Voltage Range “0” Signal: -3 V DC … 5 V DC
Input Voltage Range “1” Signal: 15 V DC … 30 V DC
Typical Input Current Per Channel: 2.8 mA
Input Connection Method: Spring-cage connection
Connection Technology: 1-wire
Number of Inputs: 32
Typical Response Time: 2 ms
Input Name: Digital inputs
Interfaces Designation: Inline local bus
Interfaces Connection Method: Inline data jumper
Air Pressure (Operation): 70 … 106 kPa
Color: green
Degree of Protection: IP20
Ambient Temperature (Operation): -25 … 55 °C
Dimensions: 119.8 X 48.8 X 71.5 mm
Weight: 0.12 Kg
