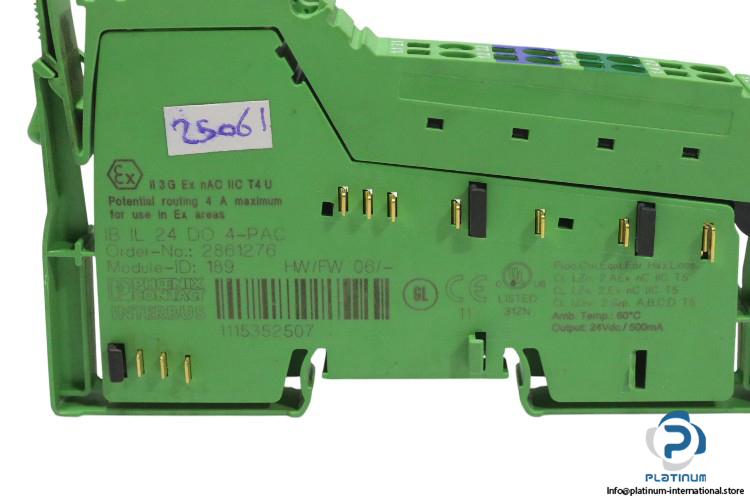

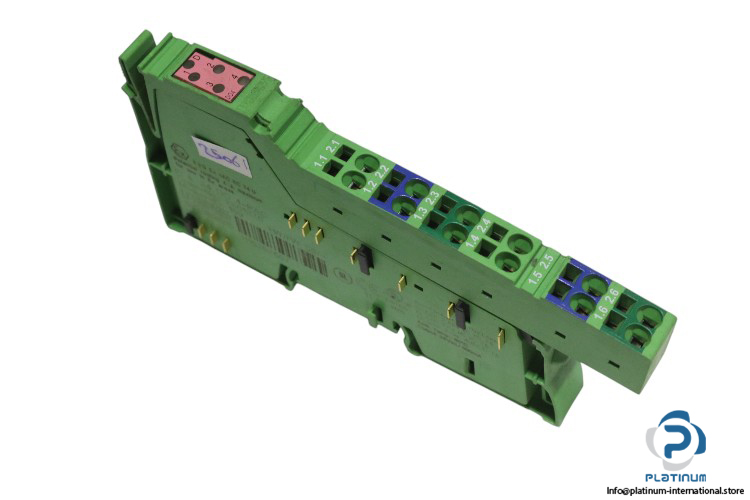

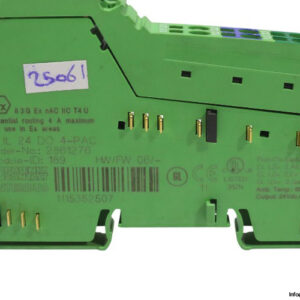

Phoenix Contact IB IL 24 DO 4-PAC Digital Module

Phoenix Contact IB IL 24 DO 4-PAC Digital Module

The Phoenix Contact IB IL 24 DO 4-PAC is a compact and efficient digital output module designed for use in industrial automation and control systems. With four 24 V DC output channels and robust spring-cage connections, this module supports high-speed communication and is optimized for use in distributed I/O systems.

• Manufacturer: Phoenix Contact
• Type: Digital Module
• Model: IB IL 24 DO 4-PAC
• Part No.: 2861276

Technical Specifications:

• Output Voltage: 24 V DC
• Output Current Max.: 500 mA per channel, 2 A per device
• Nominal Load (Lamp): 12 W
• Number of Outputs: 4
• Number of Interfaces: 2
• Connection Method: Spring-cage connection
• Connection Technology: 3-conductor
• Inline Data Jumper: Yes
• Transmission Speed: 500 kbps
• Stripping Length: 8 mm
• Degree of Protection: IP20
• Ambient Temperature (Operation): -25 °C to 55 °C
• Dimensions (H x W x D): 140.5 x 12.2 x 71.5 mm

Applications:

• Automation control systems
• Distributed I/O modules
• Industrial equipment control
