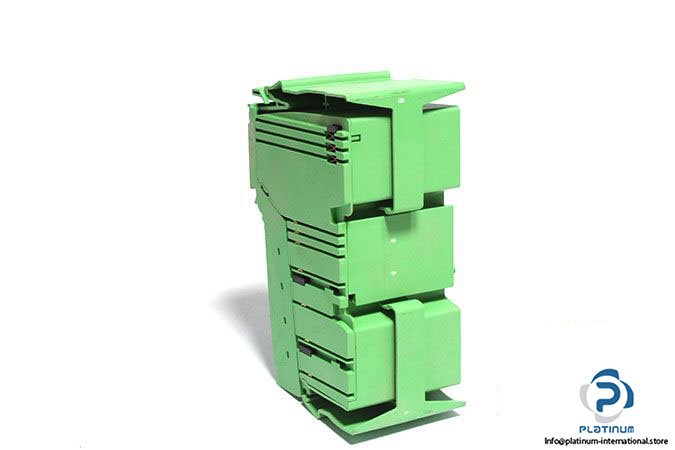

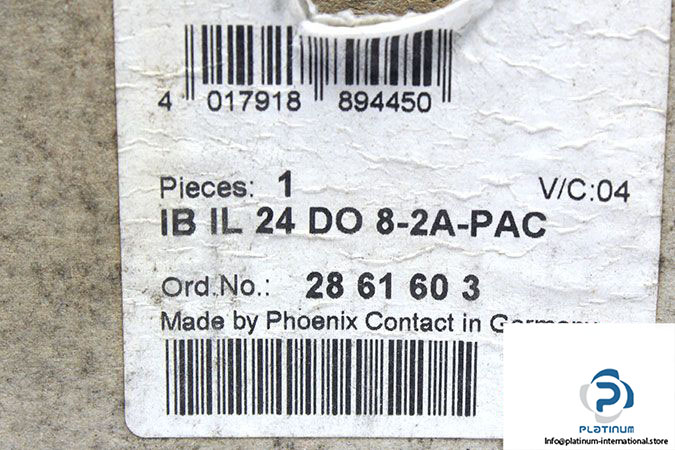

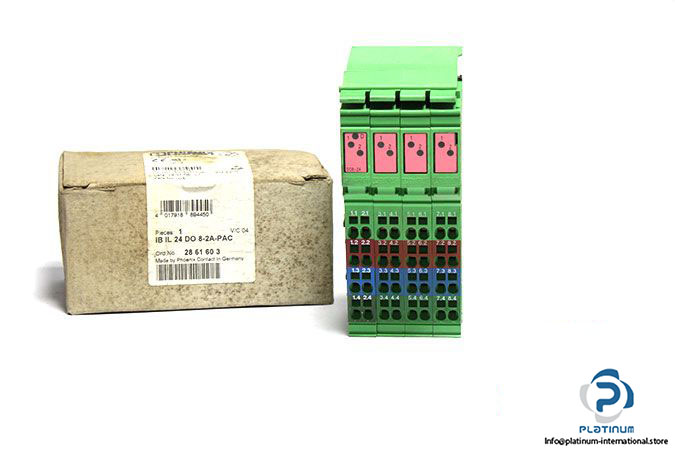

Phoenix Contact IB IL 24 DO 8-2A-PAC – 2861603 Inline Terminal
Neu
Auf Lager2 EinheitenVersandbereit
149,99$
INLINE TERMINAL Phoenix Contact IB IL 24 DO 8-2A-PAC Inline-Terminal mit 8 digitalen Ausgängen, 24 VDC, Federklemmanschluss, IP20-Schutz und kompakter Bauweise 119,8 x 48,8 x 71,5 mm.
2424VDC88-2A-PACAutomationBlockCageconnectionContactDigitalDOIBILIndustrialInlineIP20ModuleOutputoutputsPhoenixspringterminal
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
PHOENIX CONTACT IB IL 24 DO 8-2A-PAC INLINE TERMINAL
The Phoenix Contact IB IL 24 DO 8-2A-PAC Inline Terminal is designed for reliable digital output control in industrial automation systems. With 8 digital outputs, spring-cage connection, and robust design, it provides efficient performance under demanding conditions.
Manufacturer: Phoenix Contact
Type: Inline Terminal
Model: IB IL 24 DO 8-2A-PAC
Order No.: 2861603
| Nominal Output Voltage | 24 VDC |
| Output Current | 2 / 8 A |
| Nominal Load, Inductive | 48 W |
| Number of Outputs | 8 Digital Outputs |
| Output Name | Digital outputs |
| Output Connection Method | Spring-cage connection |
| Interface Designation | Inline local bus |
| Interface Connection Method | Inline data jumper |
| Air Pressure (Operation) | 70 / 106 kPa |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 / 55 °C |
| Dimensions | 119.8 x 48.8 x 71.5 mm |
| Include | IB IL 24 DO 8-2A “ 2742117 Module |
You May Also Need
Mehr von PHOENIX CONTACT
Neu
PHOENIX CONTACT
Phoenix Contact BES-6 Component Connector
SKU: 1099242
Menge: 1
Auf Anfrage erhältlich
Neu
PHOENIX CONTACT
Phoenix Contact FL Switch Sfnb 5TX Industrial Ethernet Switch
SKU: 1092812
Menge: 3
Auf Anfrage erhältlich
GebrauchtAuf Anfrage verfügbar
PHOENIX CONTACT

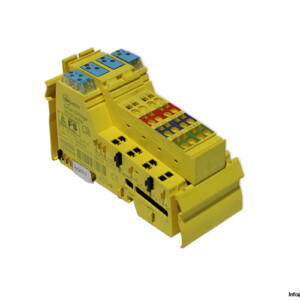

Phoenix Contact IB IL AI 8/SF Inline Terminal
