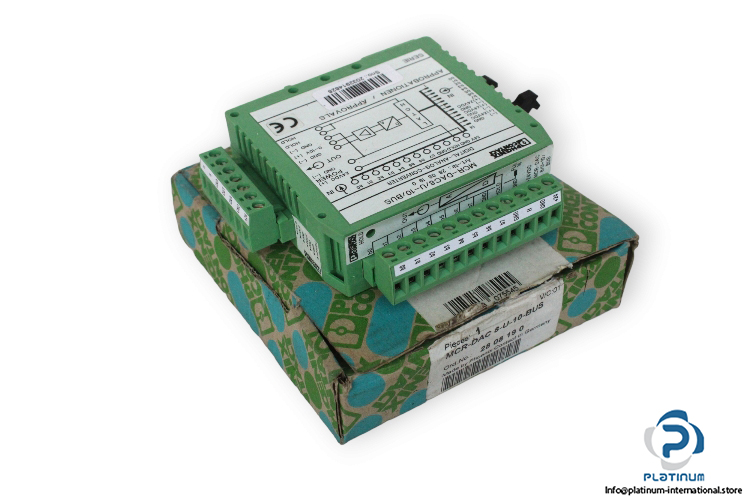

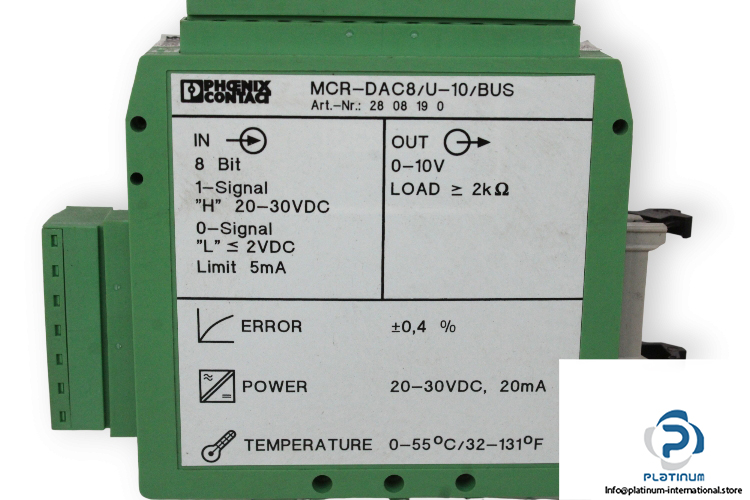

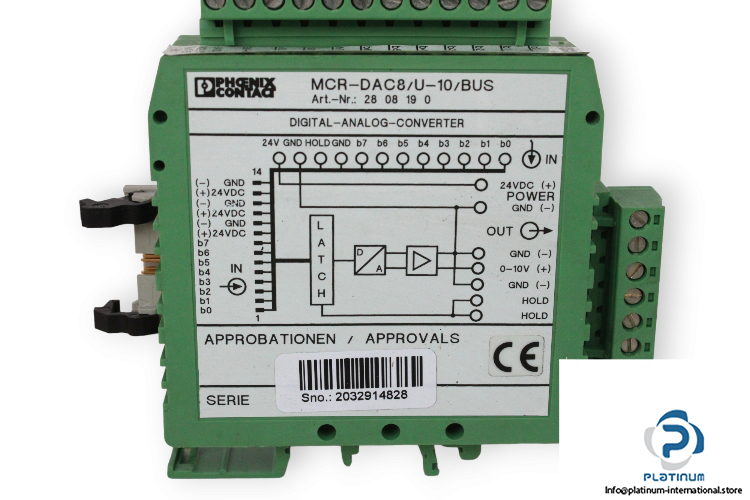

PHOENIX CONTACT MCR-DAC8/U-10-BUS DIGITAL/ANALOG CONVERTER
The Phoenix Contact MCR-DAC8/U-10-BUS is a compact and reliable digital-to-analog converter designed for precise signal conversion in industrial automation systems. With an 8-bit input, wide supply voltage range, and robust housing, it ensures stable operation and accurate performance in demanding environments.
Manufacturer: Phoenix Contact
Type: Digital/Analog Converter
Model: MCR-DAC8/U-10-BUS
Art No.: 28 08 19 0
Input Voltage Range:
| No. of Input Signal Digital Bits | 8 bits |
| Nominal Supply Voltage | 24 V DC (20 / 30 V DC) |
| Max. Current Consumption | 20 mA |
| Power Dissipation (max) | < 480 mW |
| Signal Level "1" | 20 / 30 V DC |
| Signal Level "0" | ‰¤ 2 V DC |
| Max. Current Input Signal | ‰¤ 5 mA |
| Voltage Output Signal | 0 / 10 V |
| Load/Output Load Voltage Output | ‰¥ 2 kΩ |
| Connection Method | Screw connection |
| Stripping Length | 8 mm |
| Screw Thread | M3 |
| Housing Material | Polyamide PA non-reinforced |
| Mounting Type | DIN rail mounting |
| Ambient Temperature (Operation) | 0 / 55 °C |
| Dimensions | 25 x 79 x 93 mm |
