Phoenix Contact Mini MCR-SL-PT100-UI-NC Temperature Signal Conditioner

Name: PHOENIX CONTACT MINI MCR-SL-PT100-UI-NC TEMPERATURE SIGNAL CONDITIONER
Brand: PHOENIX CONTACT
SKU: 980468
Availability: LimitedAvailability

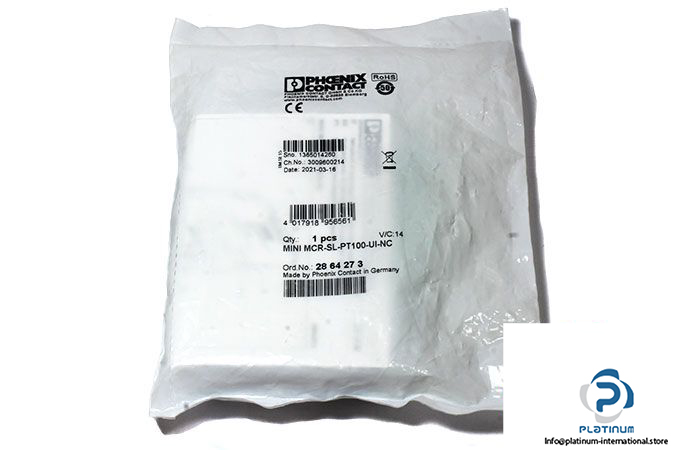

phoenix-contact-mini-mcr-sl-pt100-ui-nc-temperature-signal-conditioner-1

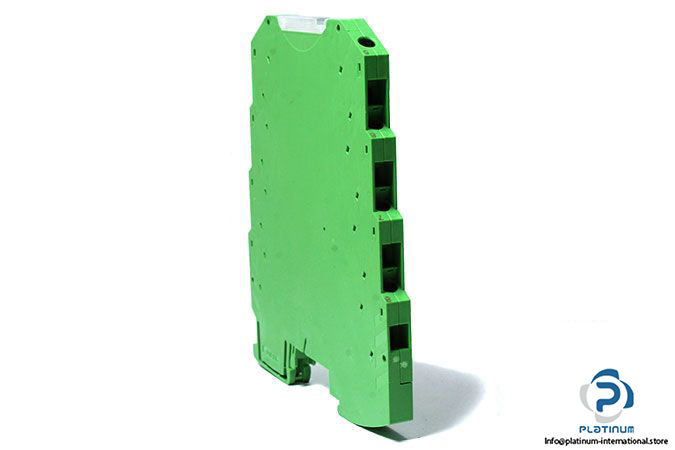

phoenix-contact-mini-mcr-sl-pt100-ui-nc-temperature-signal-conditioner-2

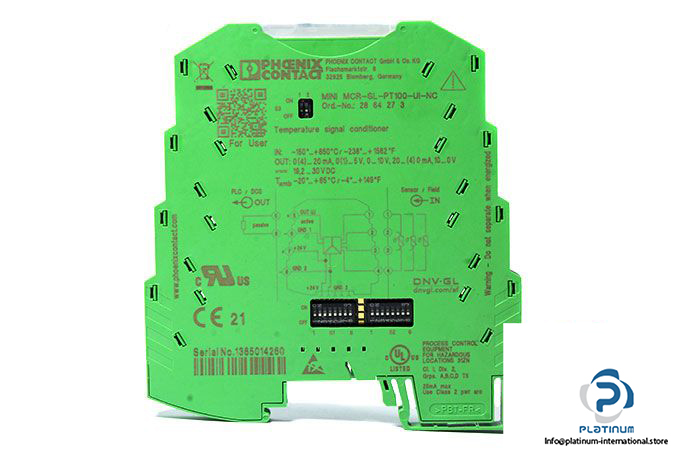

phoenix-contact-mini-mcr-sl-pt100-ui-nc-temperature-signal-conditioner-3

Neu

Auf Lager1 EinheitVersandbereit

Temperature Signal Conditioner

The PHOENIX CONTACT MINI MCR-SL-PT100-UI-NC converts Pt100 sensor signals into selectable voltage or current outputs, offering 24 V DC operation, DIP switch configuration, and compact IP20 housing.

Hersteller

PHOENIX CONTACT

SKU

980468

Kategorie

PLC Modules

Zustand

Neu

24 C Conditioner Contact Converter Current dc Industrial IP20 MCR MCR-SL-PT100-UI-NC Mini Module Output Phoenix Pt100 Signal Temperature Transducer V voltage

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

PHOENIX CONTACT MINI MCR-SL-PT100-UI-NC Temperature Signal Conditioner

The PHOENIX CONTACT MINI MCR-SL-PT100-UI-NC is a compact and reliable temperature signal conditioner designed for precise signal conversion from Pt100 temperature sensors. It offers flexible configuration through DIP switches and delivers stable output signals suitable for industrial monitoring and control systems.

Manufacturer: PHOENIX CONTACT

Type: Temperature Signal Conditioner

Model: MINI MCR-SL-PT100-UI-NC

Order No.: 28 64 27 3

Description	MCR temperature transducer for Pt100 sensors, DIP switch configuration, screw connection, not pre-configured
Number of Inputs	1
Number of Outputs	1
Nominal Supply Voltage	24 V DC
Power Consumption	500 mW
Voltage Output Signal	0 to 10 V, 10 to 0 V, 0 to 5 V, 1 to 5 V
Current Output Signal	0 to 20 mA, 4 to 20 mA, 20 to 0 mA, 20 to 4 mA
Degree of Protection	IP20
Type of Housing	PBT green
Dimensions	6 x 93 x 101 millimeters
Ambient Temperature (Operation)	minus 20 to 65 degree Celsius
