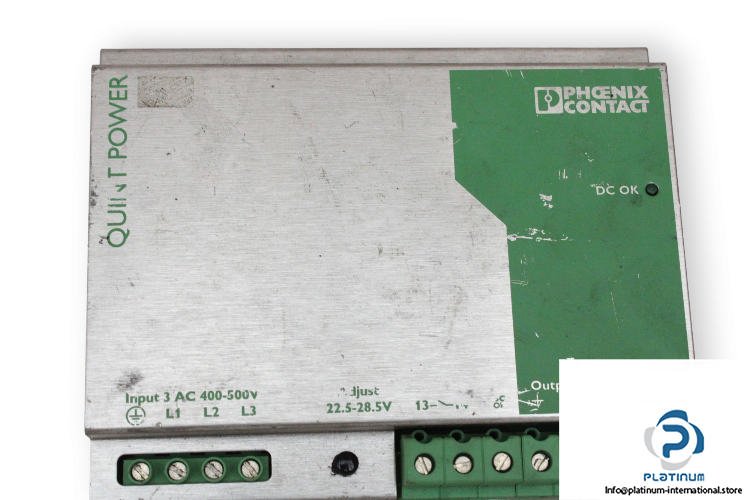

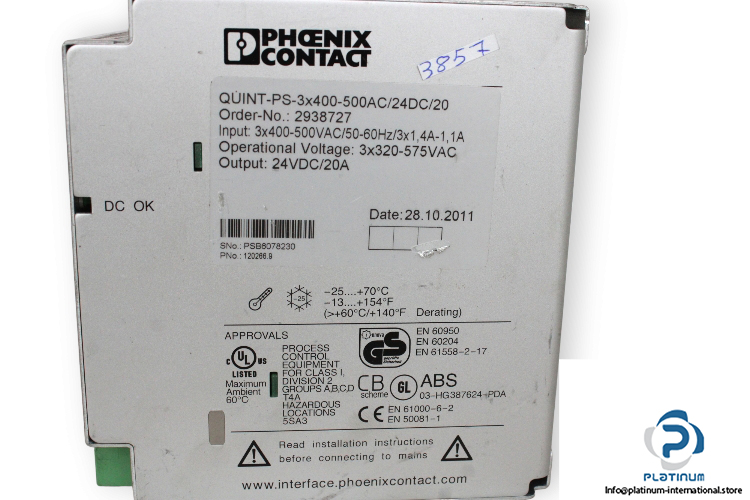

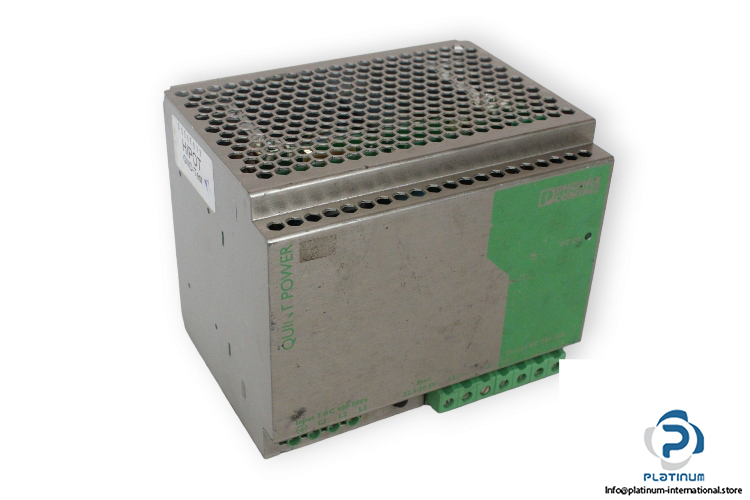

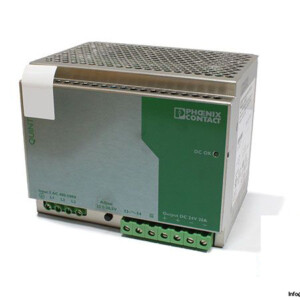

Phoenix Contact QUINT-PS-3X400-500AC/24DC/20 Power Supply
Manufacture: Phoenix Contact
Type: Power supply
Model: QUINTPS3X400500AC/24DC/20
Order No.: 2938727
Input:
Nominal Input Voltage Range: 3 phase/ 400 … 500 VAC
Input Voltage Range: 3 phase/ 320 … 575 VAC
Current: 1.4 … 1.1 A/3-phase
Frequency: 50 … 60 Hz
Nominal Power Consumption: 526 W
Type of Protection: Transient surge protection
Discharge Current: < 3.5 mA
Output:
Nominal Output Voltage: 24 V DC
Setting Range of the Output Voltage: 22.5 … 28.5 V
Nominal Output Current: 20 A
Degree of Pollution: 2
Degree of Protection: IP20
Ambient Temperature: -25 … 70 °C
Dimensions: 130 X 160 X 125 mm
