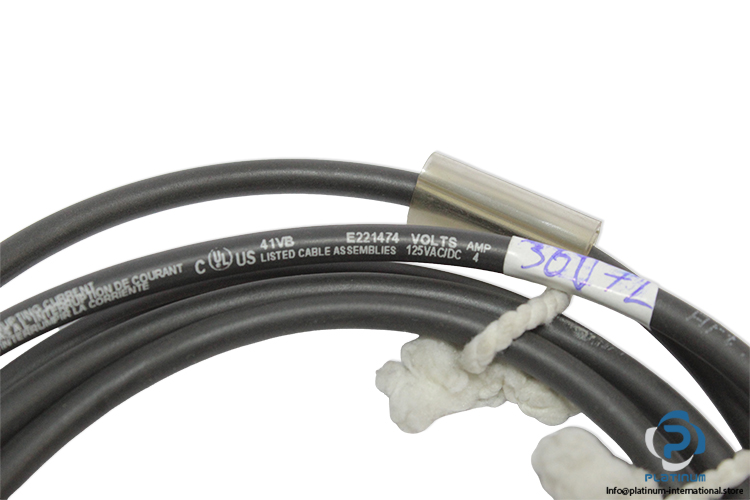

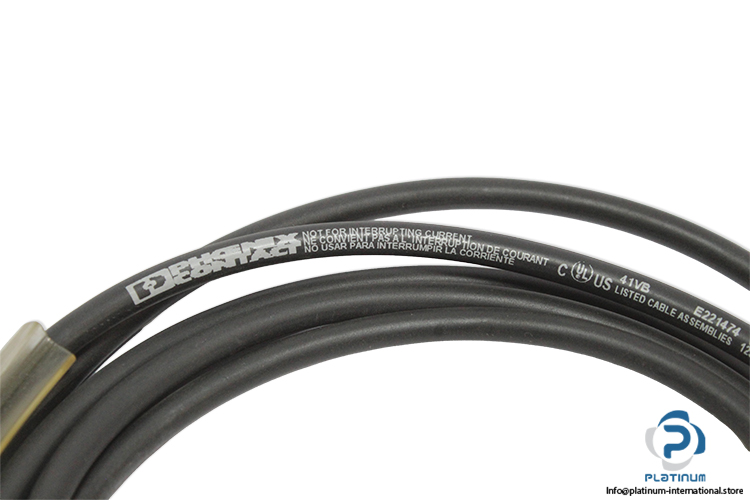

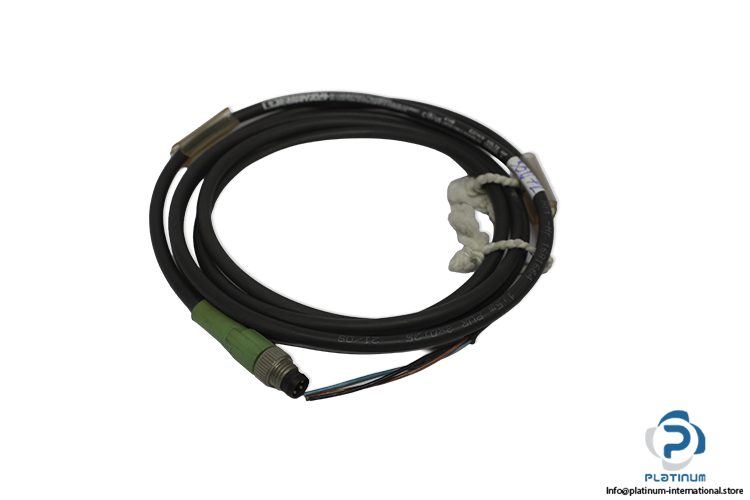

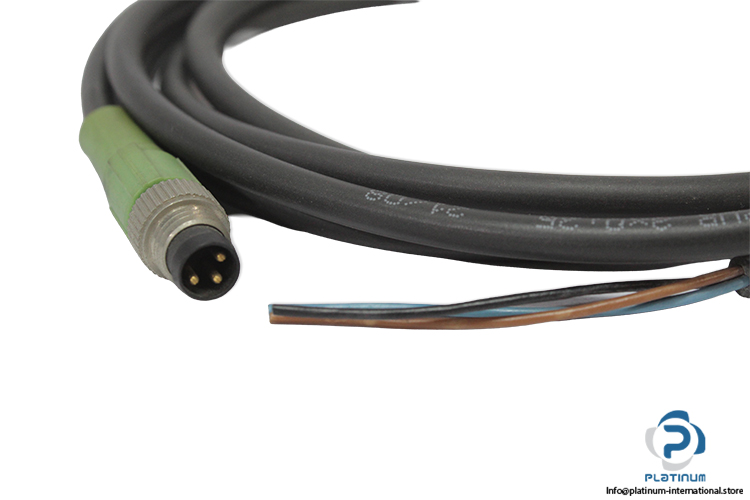

Phoenix Contact SAC-3P-M 8MS/1,5-PUR Sensor/Actuator Cable
Vorinstalliertes M8 Sensor/Aktor-Kabel, 3 Positionen, 1,5 m PUR-Kabel, 48 V AC / 60 V DC, 4 A, A-codiert.
PHOENIX CONTACT SAC-3P-M 8MS/1,5-PUR Sensor/Actuator Cable
The PHOENIX CONTACT SAC-3P-M 8MS/1,5-PUR is a preassembled sensor/actuator data cable designed for reliable signal and power transmission in industrial environments. With a robust PUR cable sheath and M8 connector configuration, it ensures secure connectivity and long service life in standard applications.
Manufacturer: PHOENIX CONTACT
Type: Sensor/Actuator Cable
Model: SAC-3P-M 8MS/1,5-PUR
Order No.: 1681664
Connection 1
Connection 2
Ambient Temperature (Operation)
| Cable Length | 1.5 m |
| Product Type | Data Cable Preassembled |
| Application | Standard |
| Number Of Positions | 3 |
| No. Of Cable Outlets | 1 |
| Shielded | No |
| Coding | A |
| Overvoltage Category | II |
| Degree Of Pollution | 3 |
| Flammability Rating According To UL 94 | HB |
| Seal Material | NBR |
| Material Of Grip Body | TPU, Hardly Inflammable, Self-Extinguishing |
| Contact Material | CuSn |
| Insulation Resistance | ‰¥ 100 MΩ |
| Nominal Voltage (UN) | 48 V AC, 60 V DC |
| Nominal Current (IN) | 4 A |
| Number Of Positions | 3 |
| Coding Type | A |
| Cable, Fixed Installation | -40 °C ... 80 °C |
| Cable, Flexible Installation | -25 °C ... 80 °C |
