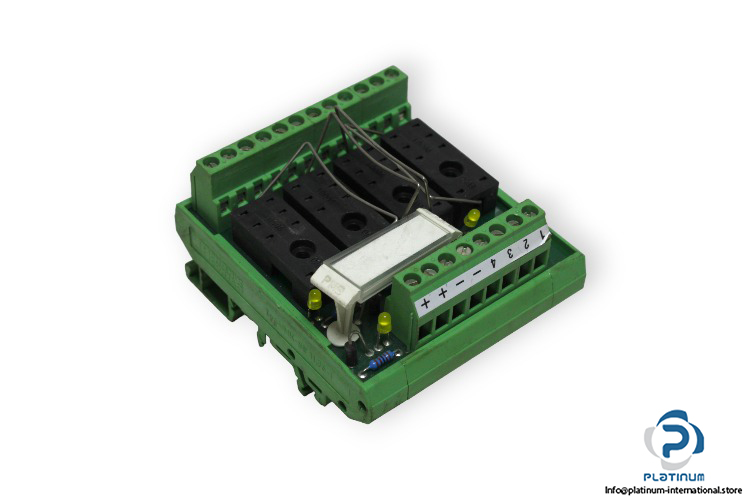

Phoenix Contact UMK-4 RM 24DC Multiple Relay Module

Manufacturer: Phoenix Contact

Type: Multiple Relay Module

Model: UMK-4 RM 24DC

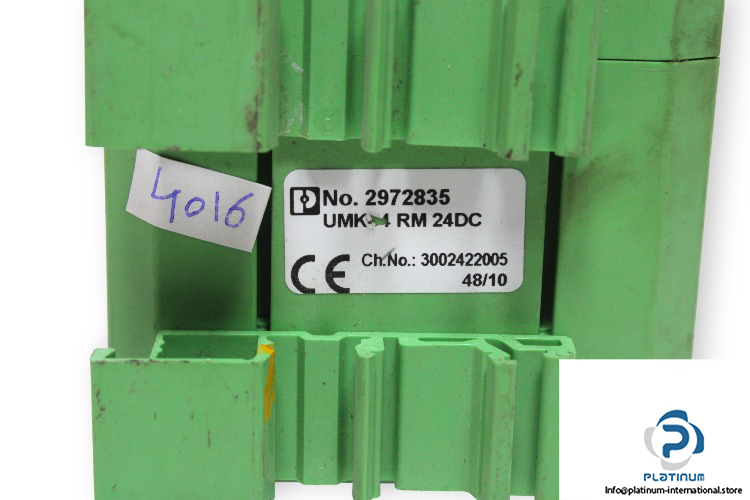

Part No.: 2972835

Rated insulation voltage: 260 V AC

Nominal input voltage Un: 24 V DC

Input voltage range: 0.8 … 1.1 V

Typical input current at Un: 2 mA

Contact type: 1 changeover contact

Maximum switching voltage: 250 V AC/DC

Limiting continuous current: 5 A

Maximum inrush current: 8 A

Connection method: Screw connection

Screw thread: M3

Mounting type: DIN rail mounting

No. of connections: 2

No. of channels: 4

Pollution degree: 2

Degree of protection: IP00

Operation ambient temperature: -20 … 65 °C

Dimensions: 67.5 x 77 x 59 mm
