Phoenix Contact VAL-CP-3S-350 Surge Arrester

Auf Lager1 EinheitVersandbereit

Surge Arrester

Phoenix Contact VALCP3S350 offers advanced surge protection for three-phase power networks. With a discharge capacity up to 40 kA, robust IP20 housing, and DIN rail mounting, it ensures reliable safety for electrical installations.

Hersteller
PHOENIX CONTACT
SKU
1082120
Kategorie
Safety Relays
Zustand
Gebraucht
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

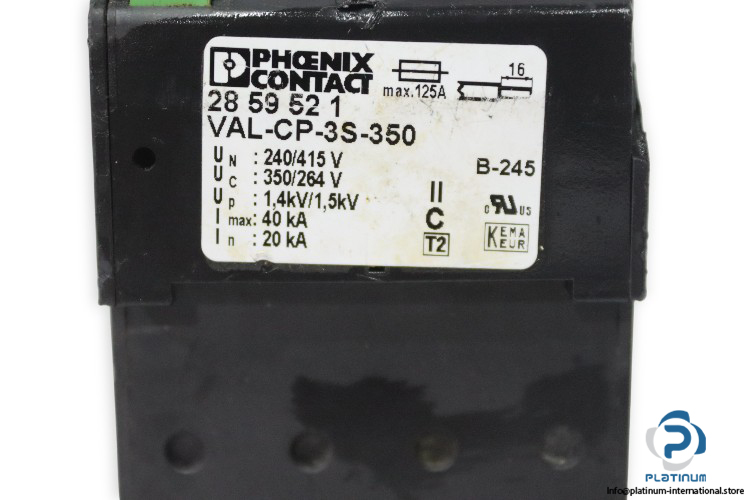

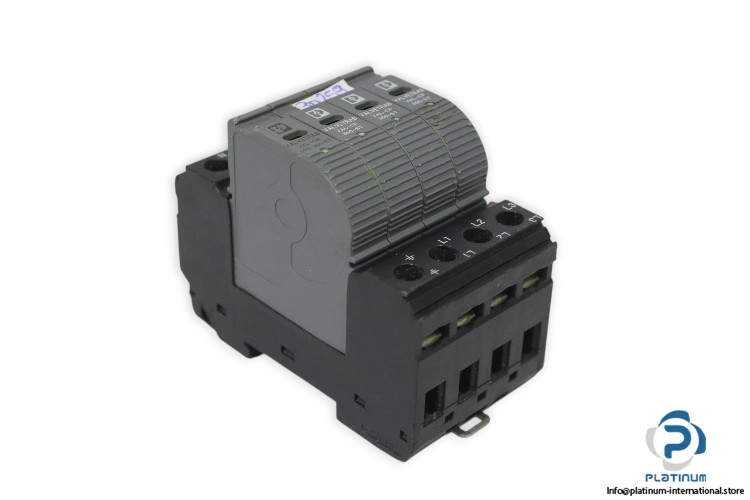

Phoenix Contact VALCP3S350 Surge Arrester

The Phoenix Contact VALCP3S350 is a high-performance surge arrester designed for three-phase power networks. Built with VALVETRAB (VAL-CP) technology, it provides reliable protection against transient overvoltages, ensuring safe operation of electrical systems in industrial environments.

Manufacturer: Phoenix Contact

Type: Surge Arrester for Three-Phase Power Networks

Model: VALCP3S350

Order No.: 28 59 52 1 / 2859521

Code: B-245

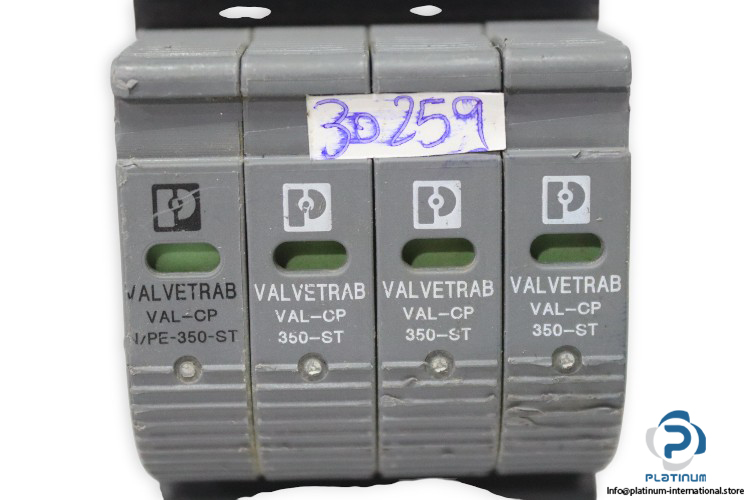

Arrester: VALVETRAB (VAL-CP) 350-ST

Peak Voltage (Uc)L“N and L“PE: 350 V AC, N“PE: 264 V AC
Nominal Operating Voltage (UN)240 / 415 V AC
Nominal Discharge Current (In, 8/20 µs)L“N: 20 kA, N“PE: 20 kA
Maximum Discharge Current (Imax)L“N: 40 kA, N“PE: 40 kA
Voltage Protection Level (Up)L“N: ‰¤ 1.4 kV, N“PE: ‰¤ 1.5 kV
Residual Voltage (at In)L“N: ‰¤ 1.4 kV; at 10 kA: ‰¤ 1.2 kV; at 5 kA: ‰¤ 1.1 kV; at 3 kA: ‰¤ 1.0 kV; N“PE: ‰¤ 0.5 kV (at In), ‰¤ 0.3 kV (at 10 kA)
Rated Through-Current (IL)40 A
Connection NameRemote Fault Indicator Contact
Switching FunctionChangeover Contact
Connection MethodScrew Connection
Mounting TypeDIN Rail 35 mm
Dimensions49.2 x 98 x 71.5 mm
Degree of ProtectionIP20
Ambient Temperature (Operation)-40 °C to 80 °C

Mehr von PHOENIX CONTACT

PHOENIX CONTACT VS-09-PROFIBUS-SP D-SUB connector
Neu

PHOENIX CONTACT

PHOENIX CONTACT VS-09-PROFIBUS-SP D-SUB connector

SKU: 1105134

Menge: 1

Auf Anfrage erhältlich
Phoenix Contact TRIO-PS-2G/3AC/24DC/10 Power Supply Unit
Neu

PHOENIX CONTACT

Phoenix Contact TRIO-PS-2G/3AC/24DC/10 Power Supply Unit

SKU: 1104154

Menge: 1

Auf Anfrage erhältlich
Phoenix Contact PLC-BSC-24DC/1IC/ACT Relay Base
Neu

PHOENIX CONTACT

Phoenix Contact PLC-BSC-24DC/1IC/ACT Relay Base

SKU: 1104211

Menge: 2

Auf Anfrage erhältlich
Phoenix Contact D-ST6 END Cover
Gebraucht

PHOENIX CONTACT

Phoenix Contact D-ST6 END Cover

SKU: 1104082

Menge: 1

Auf Anfrage erhältlich
Phoenix Contact PLC-BSC-24DC/21-21 Relay Base
Neu

PHOENIX CONTACT

Phoenix Contact PLC-BSC-24DC/21-21 Relay Base

SKU: 1104257

Menge: 1

Auf Anfrage erhältlich
Festo 31001 Double Solenoid Valve
Gebraucht

Festo 31001 Double Solenoid Valve

SKU: 989302

Menge: 2

60,00$
Allen-Bradley 1747-L20C Ser.b Processor Unit
Gebraucht

ALLEN BRADLEY

Allen-Bradley 1747-L20C Ser.b Processor Unit

SKU: 978178

Menge: 1

850,00$
YIHAO YH 5um / 2200 LINEAR GRATING RULER
NeuAuf Anfrage verfügbar

YIHAO

YIHAO YH 5um / 2200 LINEAR GRATING RULER

SKU: 980402

Auf Anfrage verfügbar

Auf Anfrage erhältlich
Herion S6VH10G0200016OV Directional Control Valve
Neu

HERION

Herion S6VH10G0200016OV Directional Control Valve

SKU: 974568

Menge: 1

150,00$
IFM ID9922 Inductive Sensor
Neu

IFM

IFM ID9922 Inductive Sensor

SKU: 883396

Menge: 18

58,88$
Platinum International
Überschuss, Neu & Gebraucht – Immer zuverlässig
PHOENIX CONTACT SKU: 1082120
Phoenix Contact VAL-CP-3S-350 Surge Arrester
Phoenix Contact VAL-CP-3S-350 Surge Arrester
PreisAuf Anfrage
Lager1 Auf Lager
HerstellerPHOENIX CONTACT
KategorieSafety Relays
ZustandGebraucht
SKU1082120

Surge Arrester

Phoenix Contact VALCP3S350 offers advanced surge protection for three-phase power networks. With a discharge capacity up to 40 kA, robust IP20 housing, and DIN rail mounting, it ensures reliable safety for electrical installations.

Beschreibung
Peak Voltage (Uc)L“N and L“PE: 350 V AC, N“PE: 264 V AC
Nominal Operating Voltage (UN)240 / 415 V AC
Nominal Discharge Current (In, 8/20 µs)L“N: 20 kA, N“PE: 20 kA
Maximum Discharge Current (Imax)L“N: 40 kA, N“PE: 40 kA
Voltage Protection Level (Up)L“N: ‰¤ 1.4 kV, N“PE: ‰¤ 1.5 kV
Residual Voltage (at In)L“N: ‰¤ 1.4 kV; at 10 kA: ‰¤ 1.2 kV; at 5 kA: ‰¤ 1.1 kV; at 3 kA: ‰¤ 1.0 kV; N“PE: ‰¤ 0.5 kV (at In), ‰¤ 0.3 kV (at 10 kA)
Rated Through-Current (IL)40 A
Connection NameRemote Fault Indicator Contact
Switching FunctionChangeover Contact
Connection MethodScrew Connection
Mounting TypeDIN Rail 35 mm
Dimensions49.2 x 98 x 71.5 mm
Degree of ProtectionIP20
Ambient Temperature (Operation)-40 °C to 80 °C
Technische Spezifikationen
Weight0,38 kg
ConditionUsed
Shelf No.250920
Type of ProductSurge Arrester for three-phase power networks
Part No.28 59 52 1 / 2859521
ManufacturerPHOENIX CONTACT
