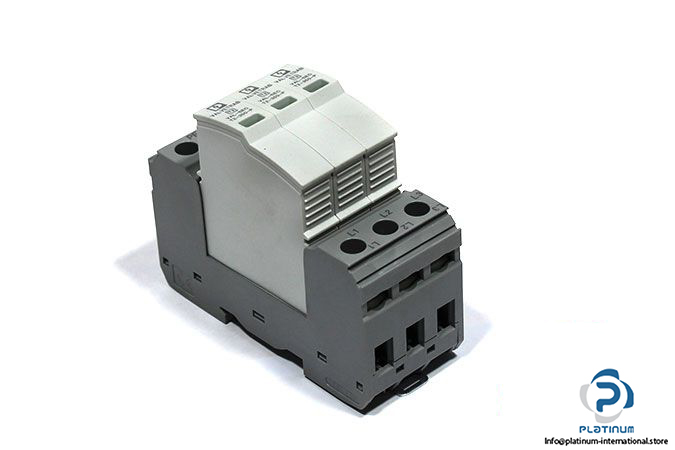

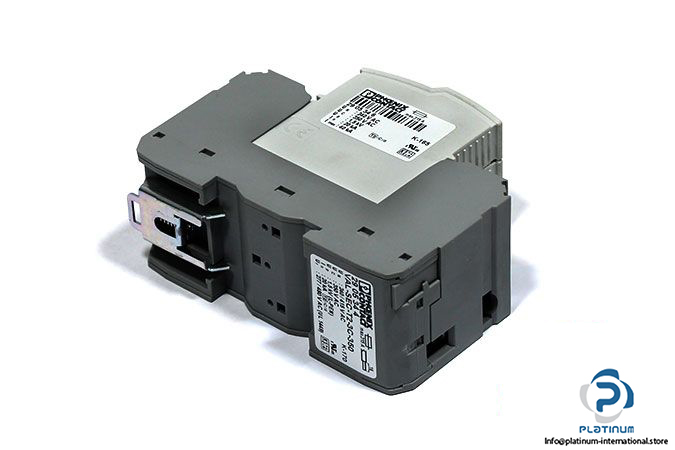

Phoenix VAL-SEC-T2-3C-350 Surge Arrester

Manufacturer: Phoenix Contact

Type: Surge Arrester

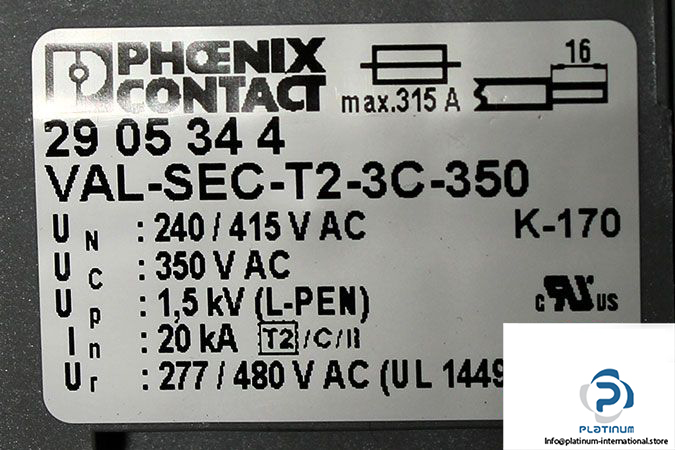

Model: VAL-SEC-T2-3C-350

Order No: 29 05 34 4 / 2905344

MRN: 3007559953

Replacement Plug: 2905346 VAL-SEC-T2-350-P

Nominal Voltage: 277/480 V AC

Nominal Discharge Current: 20 kA

Max. Discharge Current: 40 kA

Protection Level: ≤ 1,5 kV

Stripping Length: 16 mm

Tightening Torque: 4.5 Nm

Ambient Temperature: -40…80 °C

Protection Class: IP20

Dimensions: 90 x 37 x 74 mm

Weight: 0.32 kg
