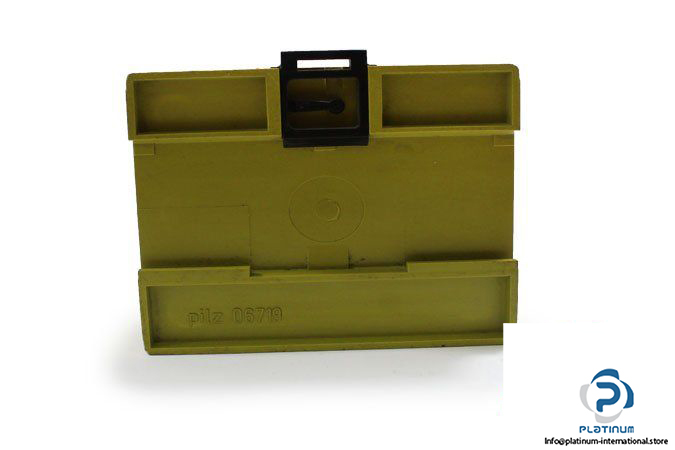

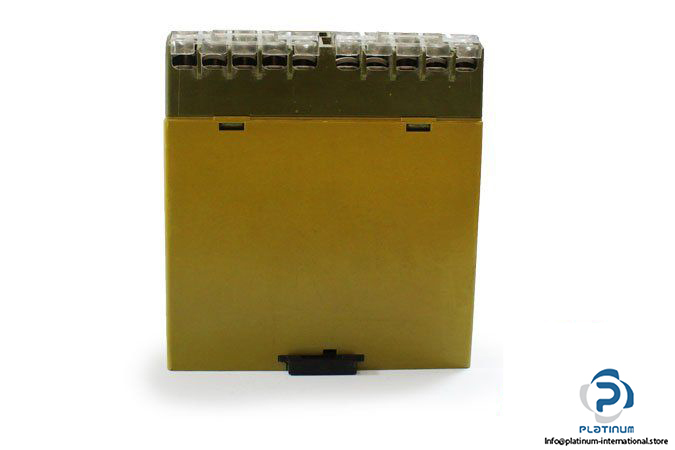

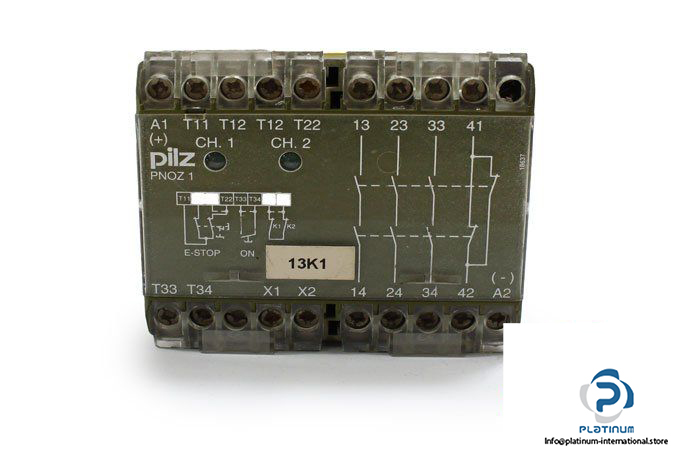

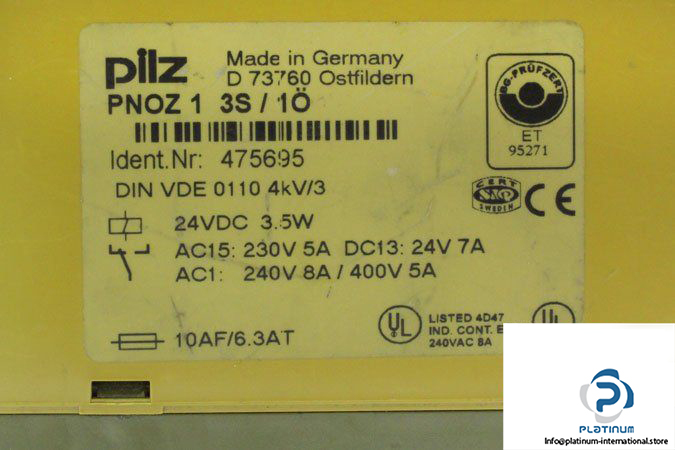

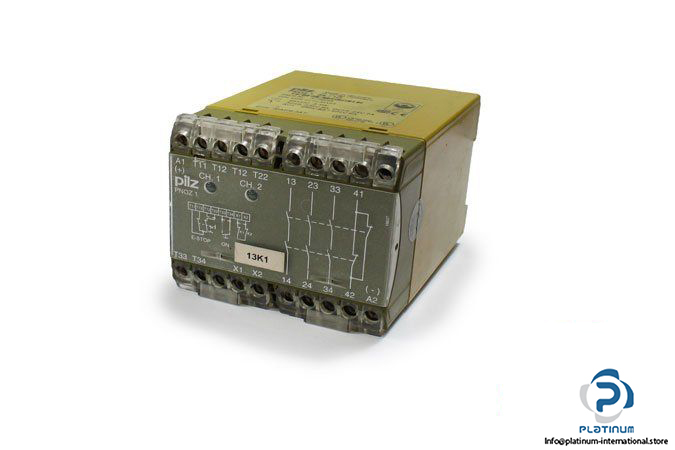

Pilz Pnoz 1 3S/1O Emergency Stop Relay

Manufacturer: PILZ

Type: EMERGENCY STOP RELAY, SAFETY GATE MONITOR

Model: PNOZ 1 3S/1O

Part No.: 475695

Supply Voltage: 24 VDC

Power Consumption: 3.5 W

Storage Temperature: -25 … +85 °

Output Contacts: 3 safety contacts (N/O), 1 auxiliary contact (N/C)

Contact Fuse Protection: 10 A quick or 6 A slow

Delay-on Energisation / De-Energisation: Max. 250 ms /50 ms

Torque Setting on Connection Terminals: 1.2 Nm (screws)

Tolerance: 85 … 110 %

Dimension: 75 X 90 X 110 mm

Protection Class: IP 20
