Pilz Pnoz ML1P Expansion Module
Pilz Erweiterungsmodul (Modell: PNOZ ML1P, Teil-Nr.: 773540) bietet 32 virtuelle Ein-/Ausgänge mit einer Versorgungsspannung von 24 V DC, einem Leistungsaufnahme von 5 W und arbeitet im Frequenzbereich von 10-55 Hz. Ideal zum Ausbau von Pilz Sicherheitssystemen.

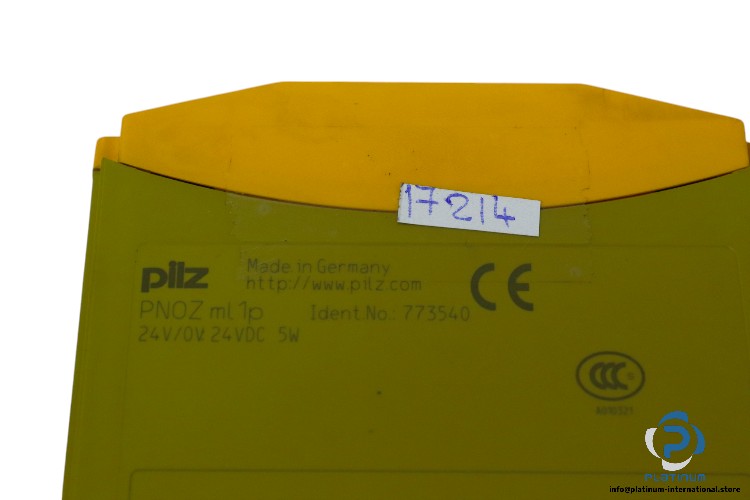

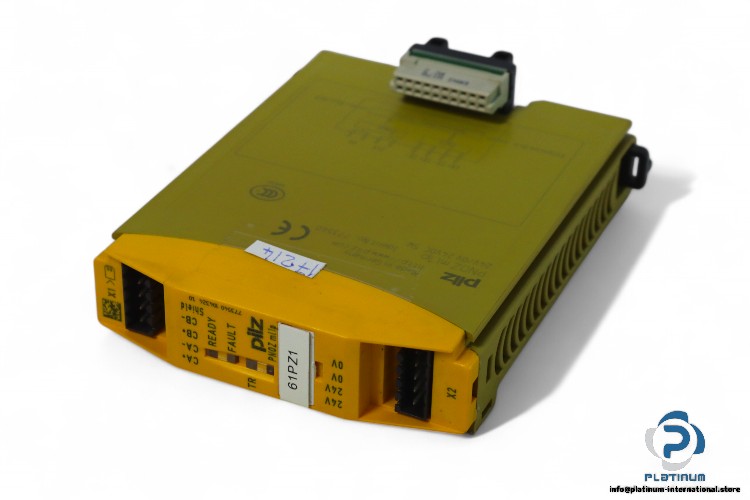

Pilz Expansion Module (Model: PNOZ ML1P, Part No.: 773540)
The Pilz Expansion Module (Model: PNOZ ML1P, Part No.: 773540) is designed for expanding the functionality of Pilz safety systems. It features a compact design and provides 32 virtual inputs/outputs, making it an ideal solution for enhancing your system’s capabilities. The module operates with a 24 V DC supply voltage and consumes just 5 W of power, ensuring efficient performance even in demanding environments. With a frequency range of 10-55 Hz and protection class IP20, it can withstand various industrial conditions.
- Manufacturer: Pilz
- Type: Expansion Module
- Model: PNOZ ML1P
- Part No.: 773540
- Supply Voltage: 24 V DC
- Power Consumption: 5 W
- Number of Inputs/Outputs: 32 virtual
- Frequency: 10-55 Hz
- Protection Class: IP20
- Temperature Range: 0 to 60 °C
- Dimensions: 94 x 22.5 x 121 mm
