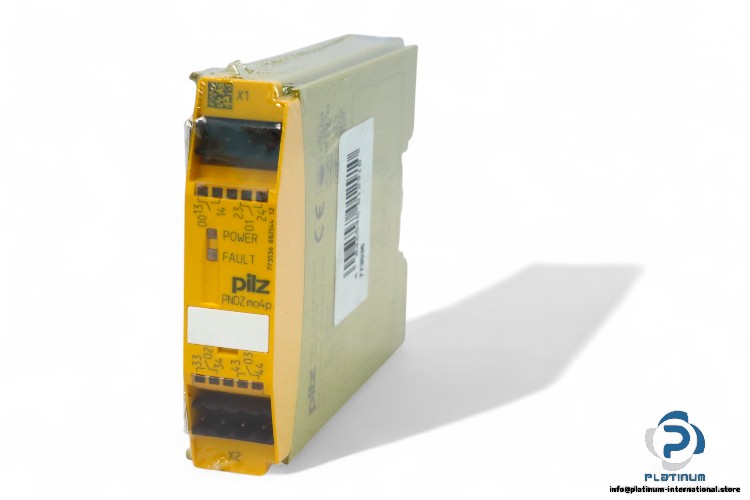

Pilz Pnoz MO4P Safety Relay

Manufacturer: Pilz
Type: SAFETY RELAY
Model: PNOZ MO4P
Part No.: 773536

No. of Relay outputs: 4
Supply voltage: 5 V dc
Rated insulation voltage: 250 V
Rated impulse withstand voltage: 6 k V
Power consumption: 2,5 W
Voltage AC15 safety cont.: 230 V, 3 A
Voltage AC safety cont.: 240 V, 6 A
Voltage DC safety cont.: 24 V, 6 A
Voltage DC13 safety cont.: 24 V, 3 A
Dimension: 94 x 22.5 x 121 mm
Temperature range: -25 – 70 °C
Frequency: 10-150 Hz
Protection type: IP54, Mounting area / IP20 , Housing and Terminals
