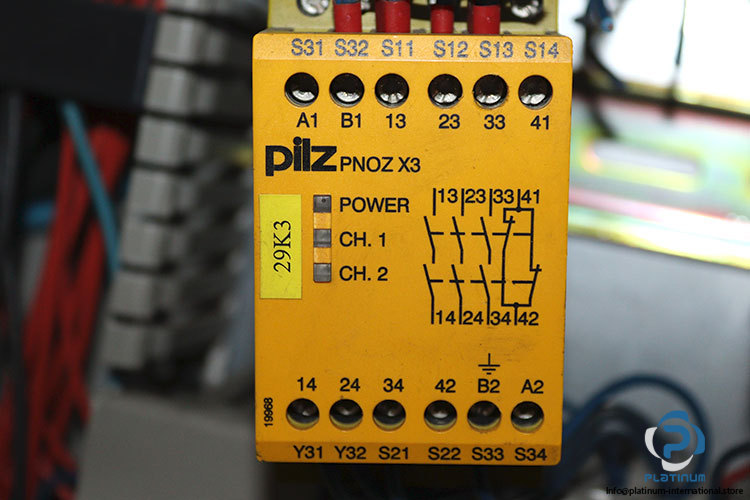

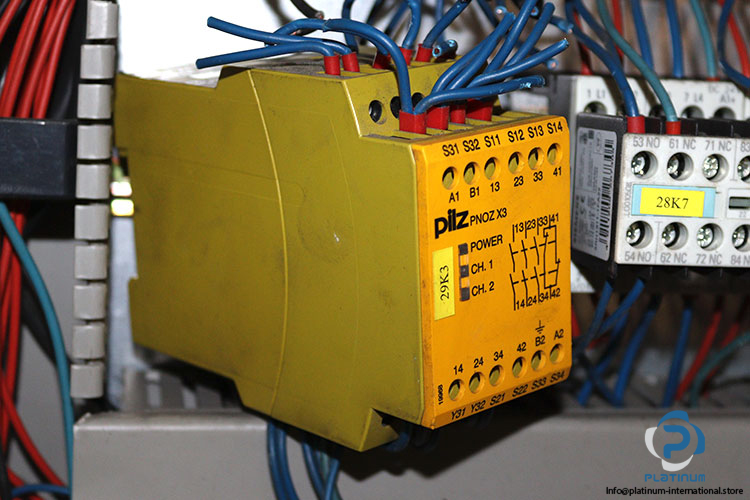

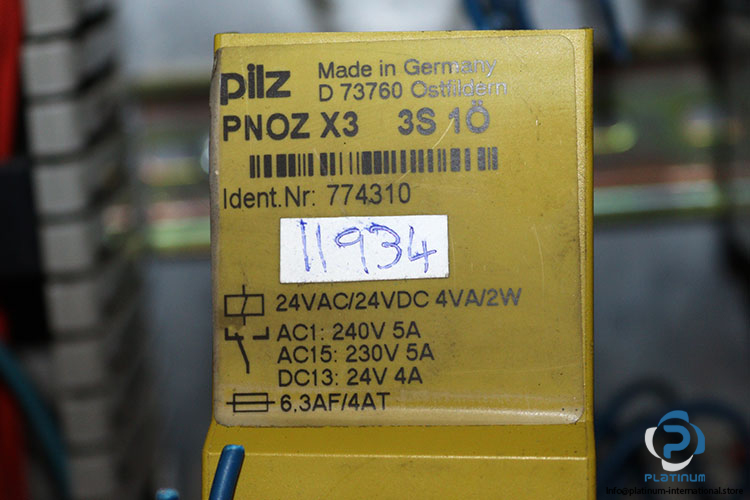

Pilz Pnoz X3 3S 1O Safety Relay

Manufacturer: PILZ
Type: Safety Relay
Model: X33S1O
Part No.: 774310

Rated Supply Voltage: 24 V AC / DC
Rated Current: 6.3 A
Power Consumption: 2 W / 5 VA
Frequency: 50 … 60 Hz
Inputs No.: 2
Semicond. Outputs No.: 1
Contact: 3 Normally Open (NO) + 1 Normally Closed (NC)
Rated Contact Voltage:
AC1: 240 V
AC15: 230 V
DC13: 24 V
Rated Contact Current:
AC1 240 V / AC15 230 V: 5 A
DC13 24 V: 4 A
Type of Electrical Connection: Screw terminals
Housing Material:
Front Plate: ABS UL 94 V0
Upper Part: PPO UL 94 V1
Protection Class: IP54
Ambient Temperature: -20 … 55 °C
Dimensions (H x W x D): 87 x 45 x 121 mm
