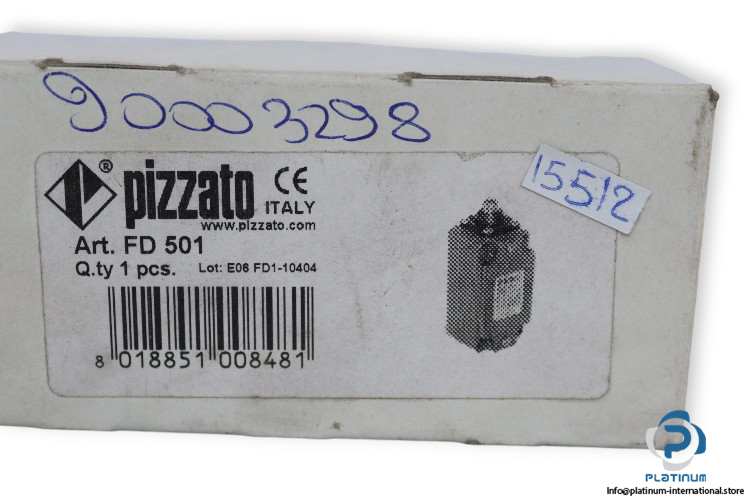

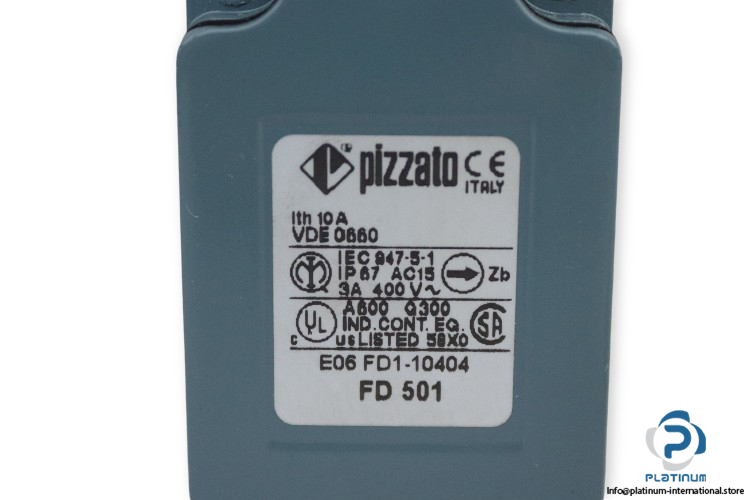

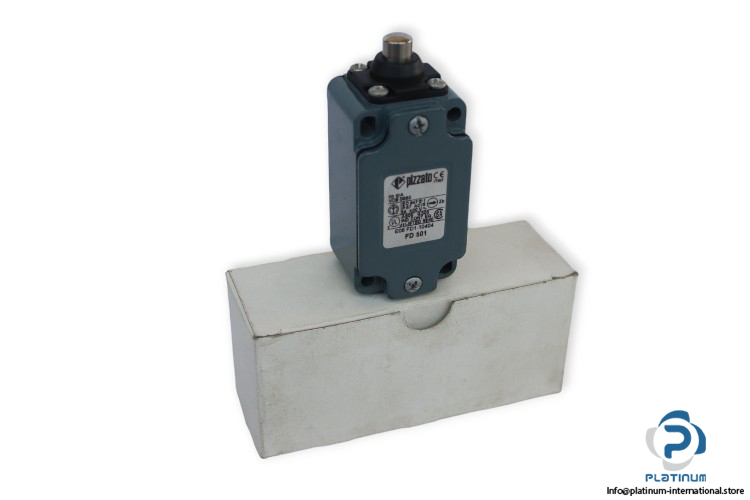

Pizzato FD 501 Position Switch

Manufacturer: PIZZATO
Type: Position Switch
Model: FD501
Part No.: E09FD110404

Series: FD
Rated Voltage: 400 V AC
Rated Current: 3 A
Rated Thermal Current: 10 A
Frequency: 50 … 60 Hz
Contact: 1 Normally Open (NO) + 1 Normally Closed (NC)
Actuator Type: Pin Plunger
Housing Material: Metal
Protection Class: IP67
Temperature: -25 … 80 °C
Dimensions: 40 x 60 x 30 mm
