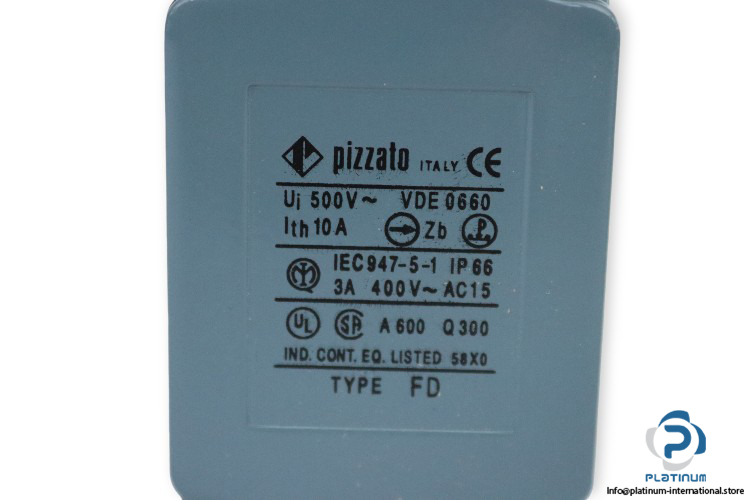

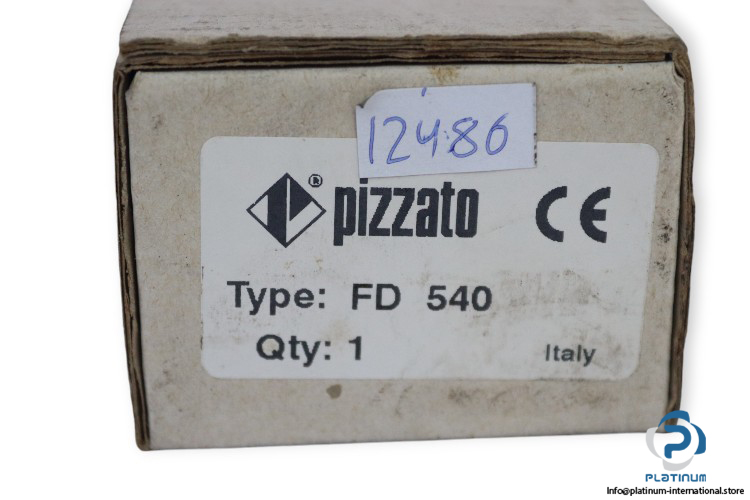

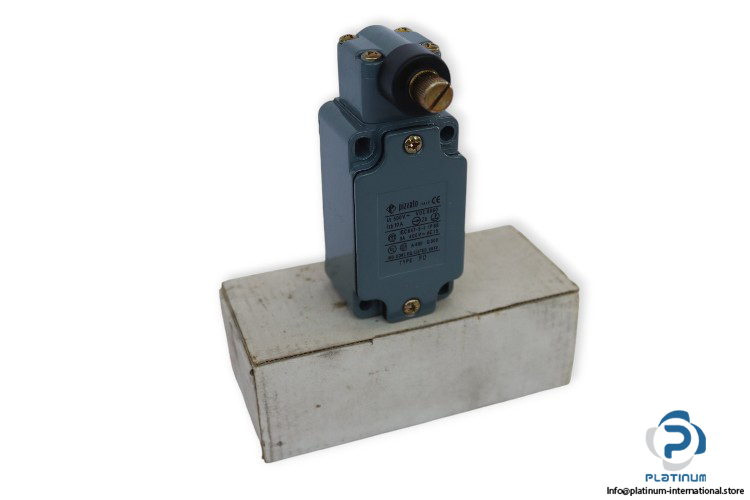

Pizzato FD 540 Position Switch

Manufacturer: Pizzato
Type: Position Switch with Two Stable Position
Model: FD540
Series: FD

Insulation Voltage Ui: 500 V AC
Thermal current Ith: 10 A
Contact rating: 400 V AC,3 A
Contact: 1 NO + 1 NC, Snap action
Protection degree: IP67
Standard: VDE 0660, IEC947-5-1
Max. actuation frequency: 3600 operating cycles/hour
Ambient temperature: -25 … +80°C
Housing material: metal
Dimensions: 43 x 88 x 40 mm
