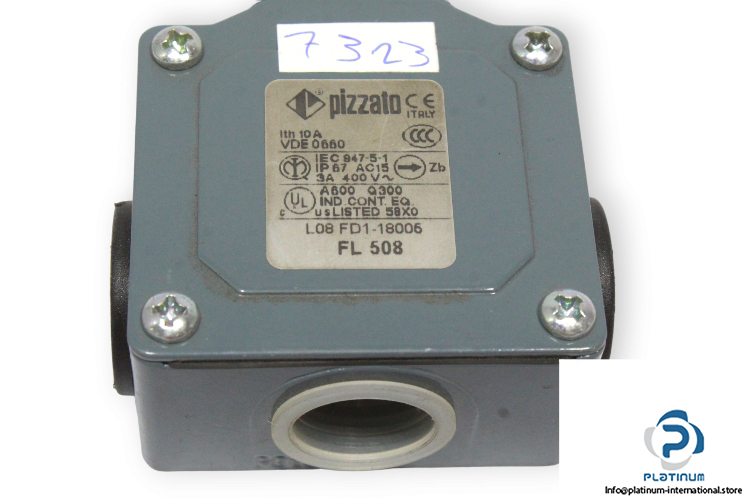

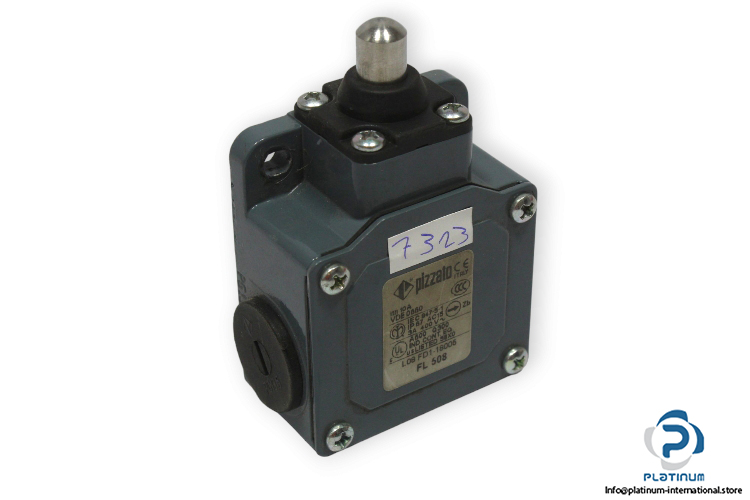

Pizzato FL 508 Pizzato Position Switch

Manufacturer: Pizzato
Type: Pizzato Position Switch
Model: FL 508

Voltage: 400 V AC
Current: 3 A
Thermal Current: 10 A
Contact Configuration: 1 Normally Open, 1 Normally Close
Contact Rating: 250 … 500 V AC (6 … 1 A)/ 24 … 250 V DC (6 … 0.4 A)
Housing: Metal Housing coated with baked epoxy powder
Operating Temperature: -25 … 80 °C
Degree of protection: IP67
Dimensions: 56 X 86 X 33 mm
