Pizzato MS 09 Micro Limit Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
MICRO LIMIT SWITCH
Pizzato MS 09 Micro Limit Switch with snap action contacts, push plunger actuator, and cable connection. Rated 250 V AC, 5 A with IP20/IP40 protection and compact 39x21x54 mm size.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

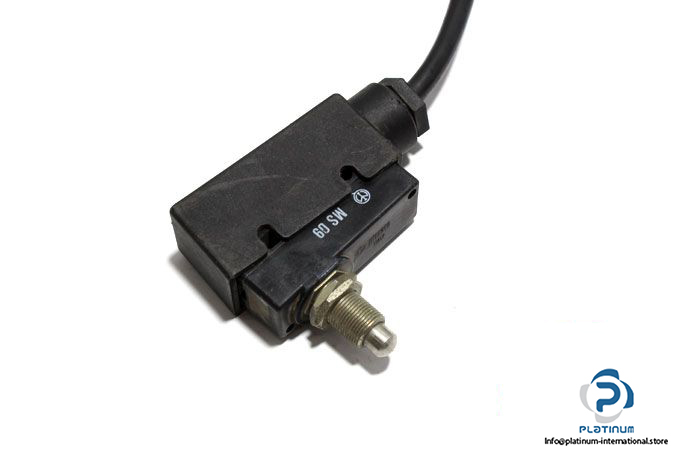

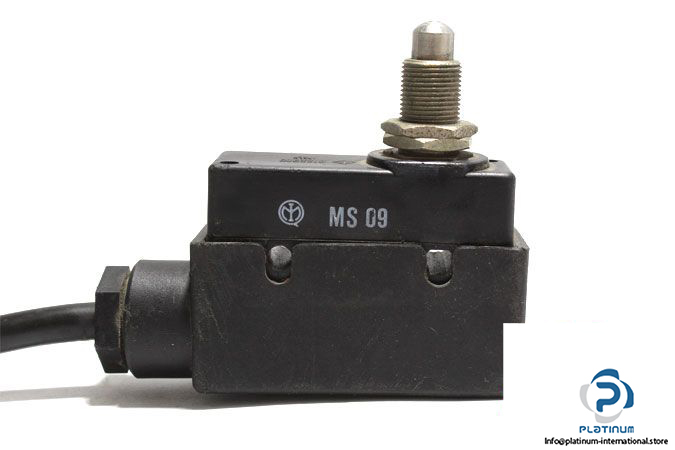

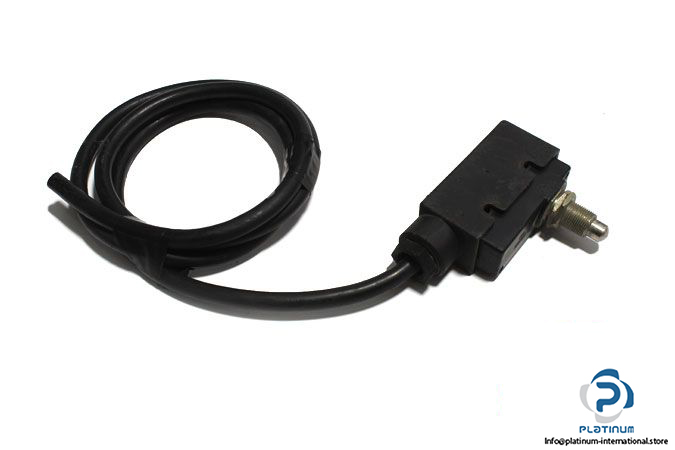

PIZZATO MS 09 MICRO LIMIT SWITCH
The Pizzato MS 09 is a compact and reliable micro limit switch designed for precision control in industrial automation systems. With snap action contacts and push plunger actuator, it ensures fast and accurate switching operations in a wide range of environments.
Manufacturer: Pizzato
Type: Micro Limit Switch
Model: MS 09
| Output Configuration | 1 Normally Open + 1 Normally Closed |
| Contact Operation | Snap Action |
| Actuator Type | Push Plunger |
| Switching Voltage Max. | 250 V AC |
| Contact Current Max. | 5 A |
| Connection | Cable |
| Protection Class | IP20/IP40 |
| Ambient Operating Temperature | -25 / 85°C |
| Dimensions | 39 x 21 x 54 mm |
