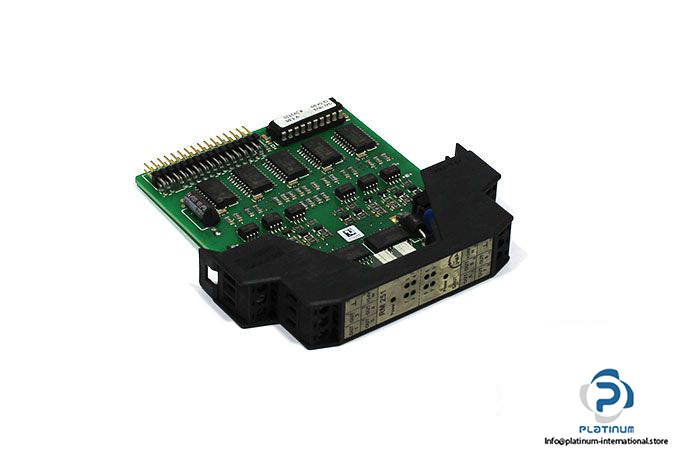

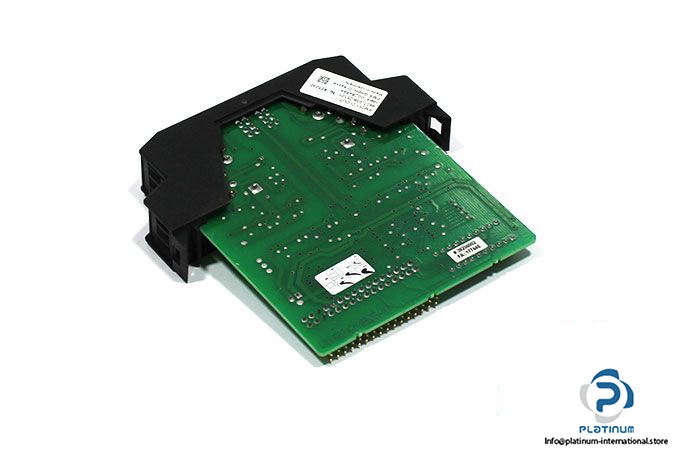

PMA RM251 9407-738-25101 Digital Output Module

Manufacturer: PMA

Type: Digital Output Module

Model: RM251

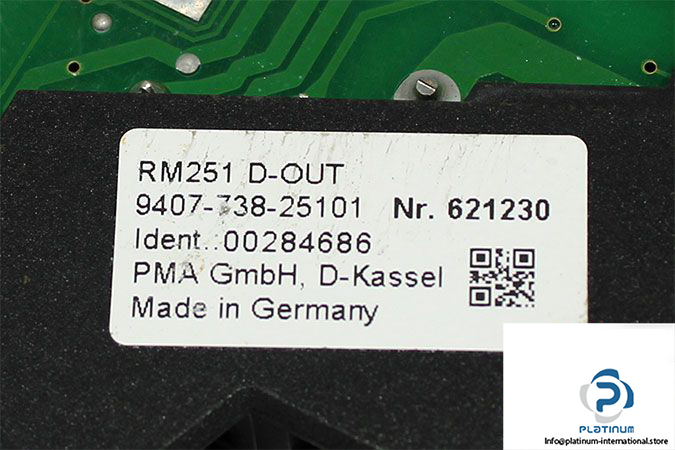

Part No: 9407-738-25101

Art No: 621230

ID No: 00284686

Application: 8-channel output module, 24 V DC, high side driver, e.g. for direct connection of 24 V valves

Power Consumption: max. 850 mW

Cycle Times: The maximum write cycle time of the 8 outputs is 10 ms.

Ambient Temperature: 0…50 °C

Protection Class: IP20

Dimensions: 99 x 17.5 x 114.5 mm

Housing: Polyamide PA 6.6, combustibility class V0 according to UL 94

Weight: 80 g
