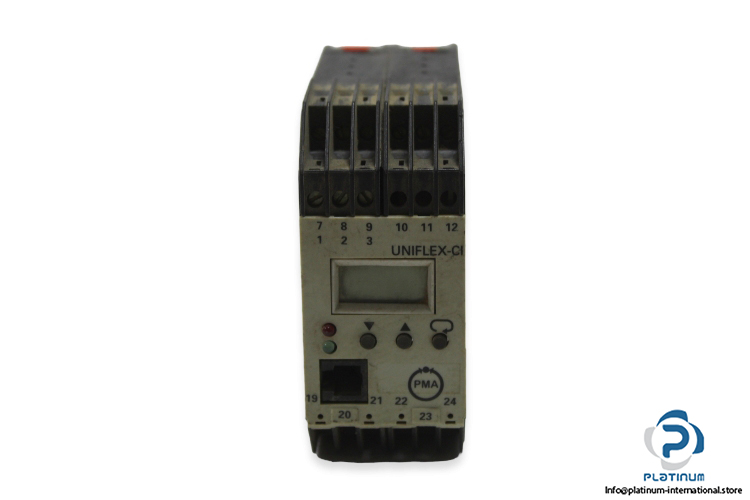

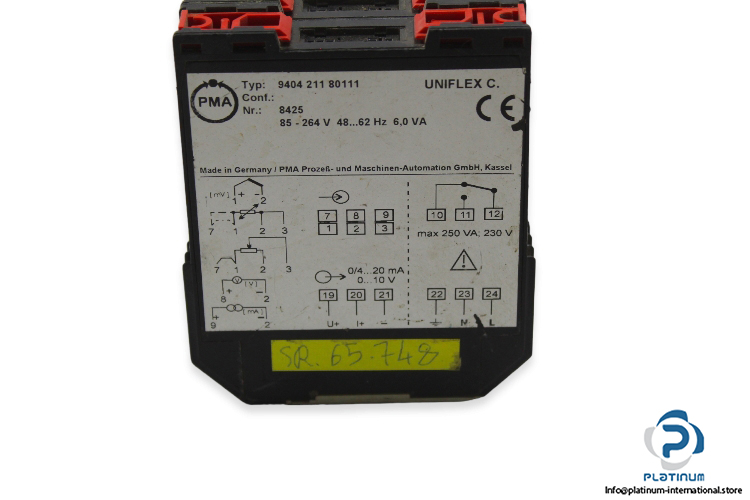

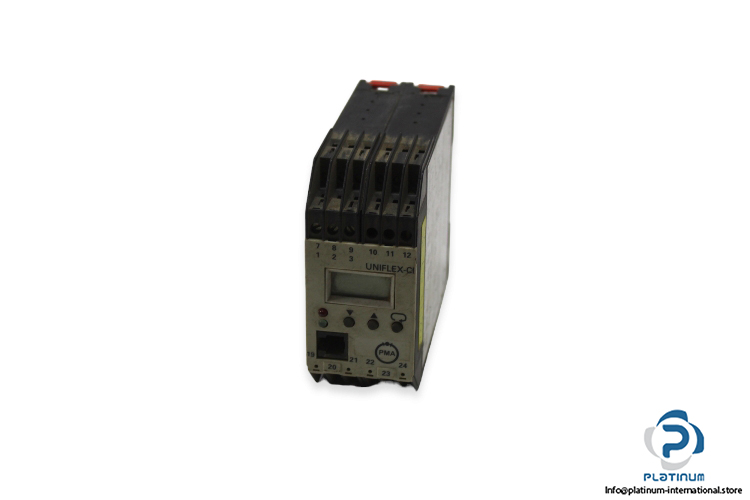

PMA Uniflex CL 9404 211 80111 Universal Transmitter

Manufacturer: Pma

Type: Universal Transmitter

Model: UNIFLEX CL 9404 211 80111

Part No.: 8425

Supply voltage (UC): 85 … 265 V AC

Frequency: 48 … 62 Hz

Power consumption: 6 VA

Standard Current Signal: 0(4) … 20 mA

Standard Voltage Signal: 0 … 10 V

Relay contact: 1 Change-over contact (Single pole double through) MAX. 250VA, 230 V

Operating Temperature: -10 … + 60 °C

Electrical Connection: screw terminals for max. 2,5 mm2

Degree of Protection: IP30

Housing Material: Polycarbonate, glasfibre reinforced, self-extinguishing

Dimensions: 93 x 111 x 40 mm
