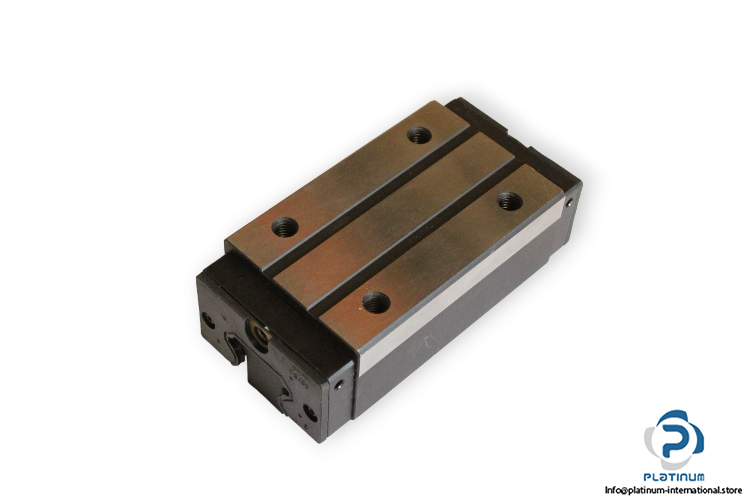

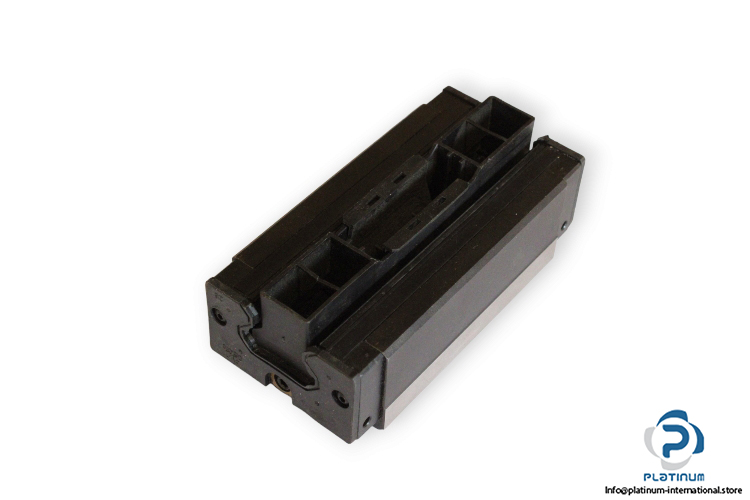

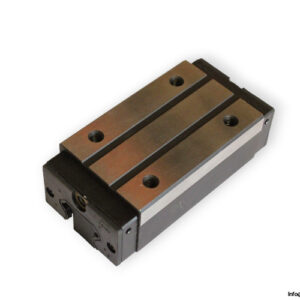

PMI MSA30LSSSF0 Linear Guideway Block

Manufacturer: PMI
Type: Linear Guideway Block

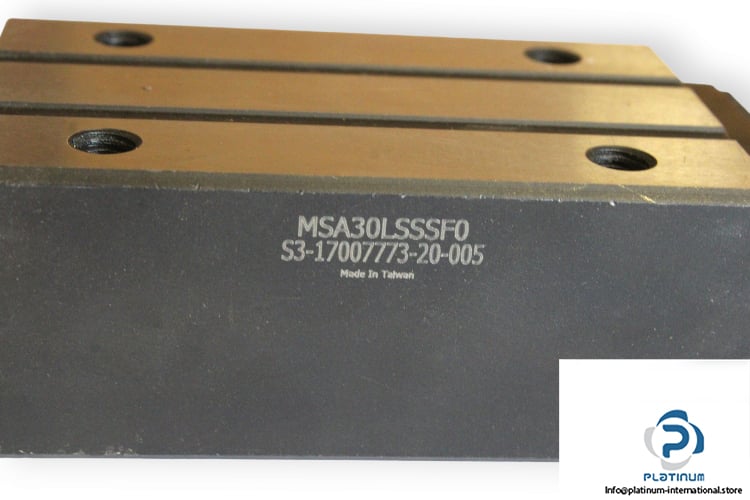

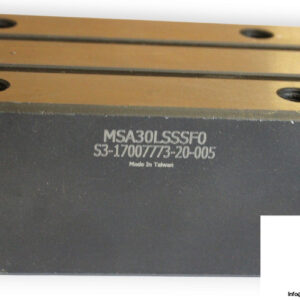

Model: MSA30-LS-SS-F0

Size: 30 mm
Carriage type: Ultra heavy load, LS: Square type
Preload grade: F0; Medium preload
Basic Load Ratings:
Dynamic C: 47.9 kN
Static C₀: 77 kN
Accuracy Grade: N

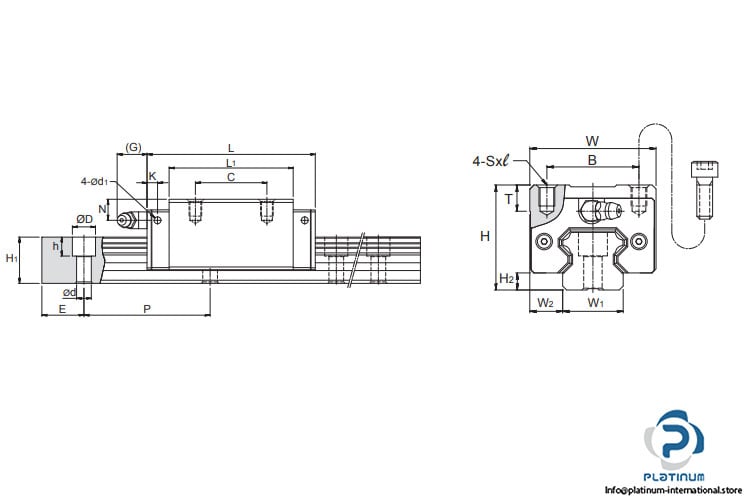

Dimensions:
Height system H: 45 mm
Width carriage W: 60 mm
Overall length carriage L: 119.2 mm
L₁: 93.6 mm
B: 40 mm
C: 60 mm
Contamination Protection: SS; Bidirectional end seal+Bottom seal
