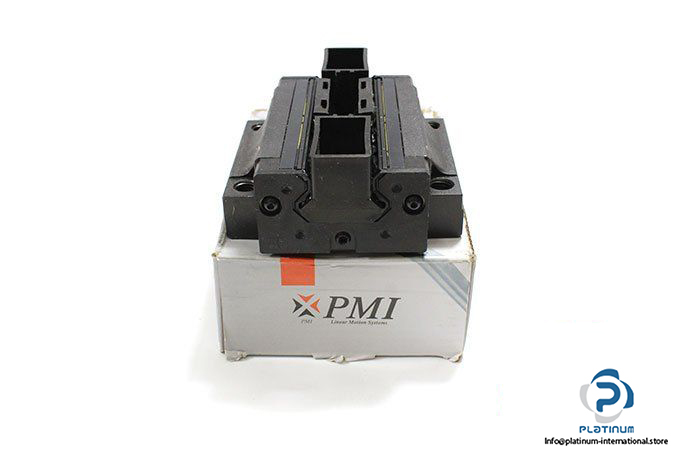

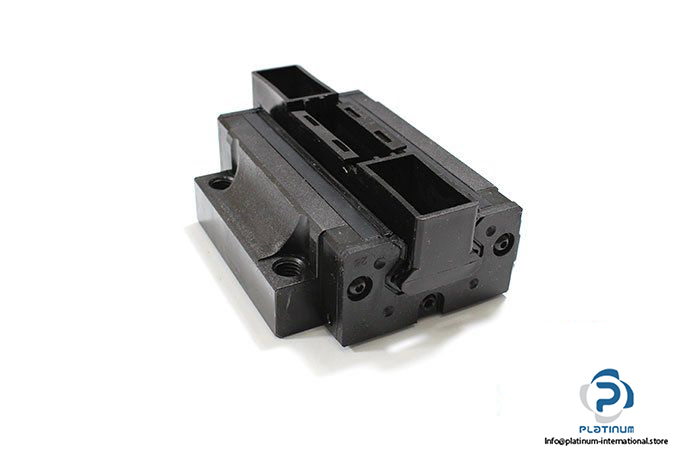

PMI MSA35A Linear Guideway Block

Manufacturer: PMI

Type: LINEAR GUIDEWAY BLOCK

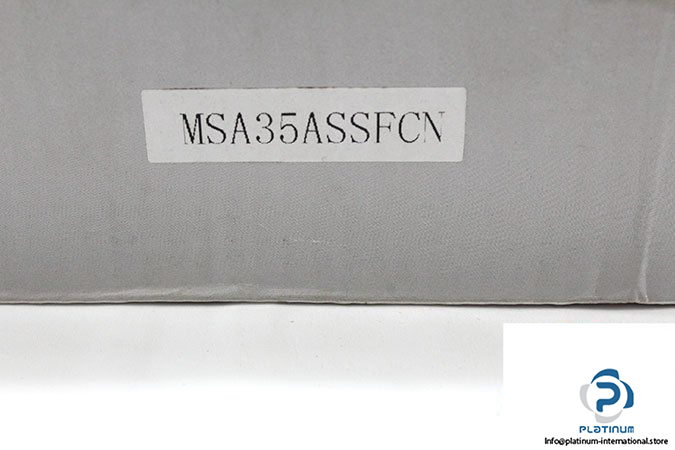

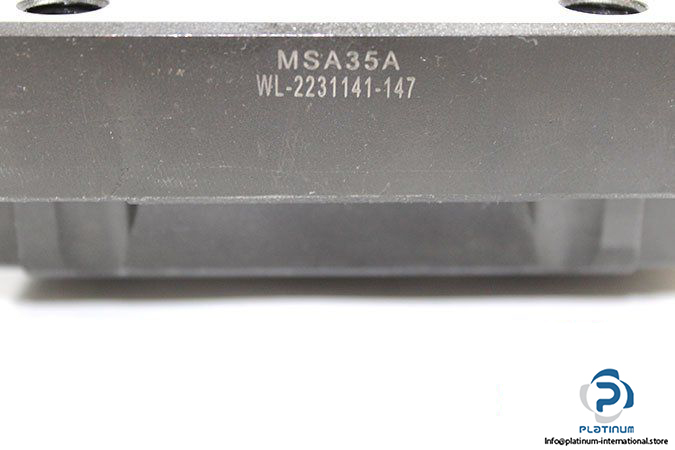

Model: MSA 35 ASSFCN

Size: 35 mm

Block Type: Flange

Load Type: Heavy Load

Preload: FC

Accuracy Grade: N

Basic Load Ratings:

Dynamic C: 52 kN

Static C₀: 75.5 kN

Static Moment Rating About:

X axis M_R: 1.25 kN-m

Y axis M_Y: 0.93 kN-m

Z axis M_P: 0.93 kN-m

Dimensions:

Height system H: 48 mm

Width carriage W: 100 mm

Overall length carriage L: 111.2 mm

B: 82 mm

C: 62 mm

Weight: 1.72 kg
