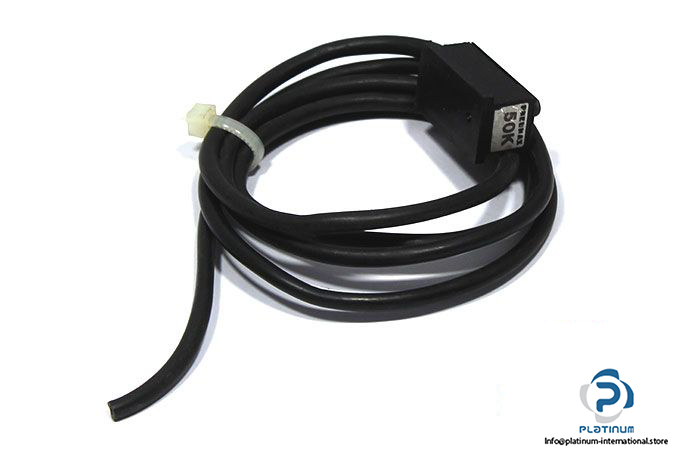

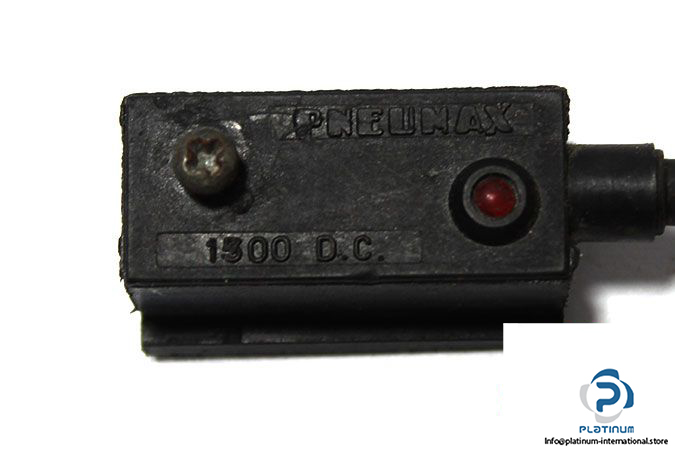

Pneumax 1500 D.C Magnetic Sensor

Manufacturer: Pneumax

Type: Magnetic Sensor

Model: 1500.D.C

Uses: for Cylinders and Microcylinders

Voltage Range: 12…30 VDC

Maximum Permanent Current: 1.2 A

Maximum Current: 1.5 A

Maximum Permanent Power: 32 W

Connecting Time: 2 ms

Disconnecting Time: 1 ms

Repetition of Intervention Point: ± 0,1 mm

Cable Section: 2×0,35 mm²

Protection Class: IP65

Working Temperature: -20…50°C

Connection: Cable 2 Wire

Housing: PBT
