Posital Gmbh OCD-DPC1B-1212-SA10-HCC Absolute Rotary Encoder
Gebraucht
Auf Lager4 EinheitenVersandbereit
ABSOLUTER DREHGEWINDESENSOR Posital GmbH OCD-DPC1B-1212-SA10-HCC ist ein hochpräziser optischer Drehgeber mit 4096 SPR Auflösung, Profibus DP Schnittstelle, IP65 Schutz und Edelstahlschaft – ideal für anspruchsvolle industrielle Automatisierungsumgebungen.
AbsoluteDPEncoderFlangeHighIndustrialIP65OCD-DPC1B-1212-SA10-HCCOpticalPositalProfibusResolutionRotaryshaftstainlessSteelSynchro
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

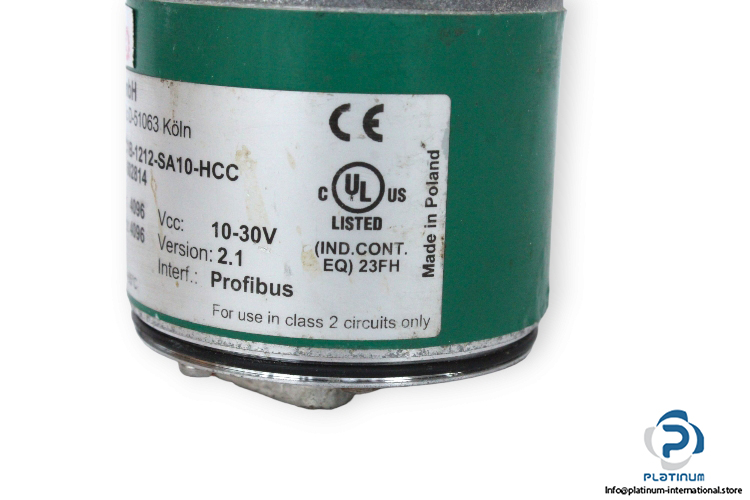

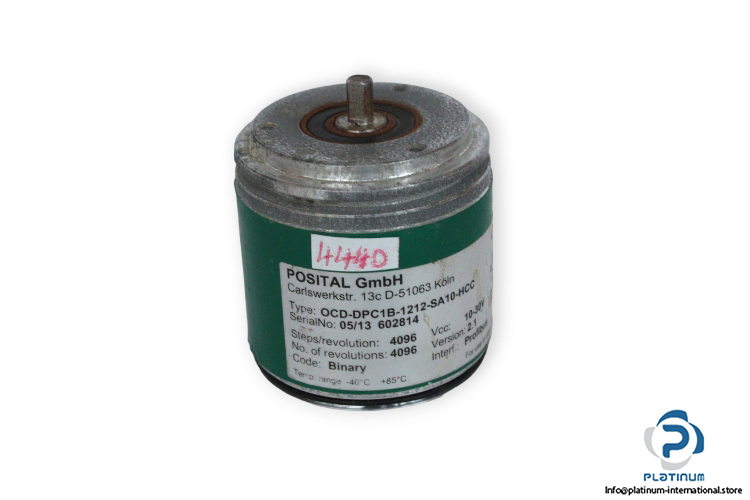

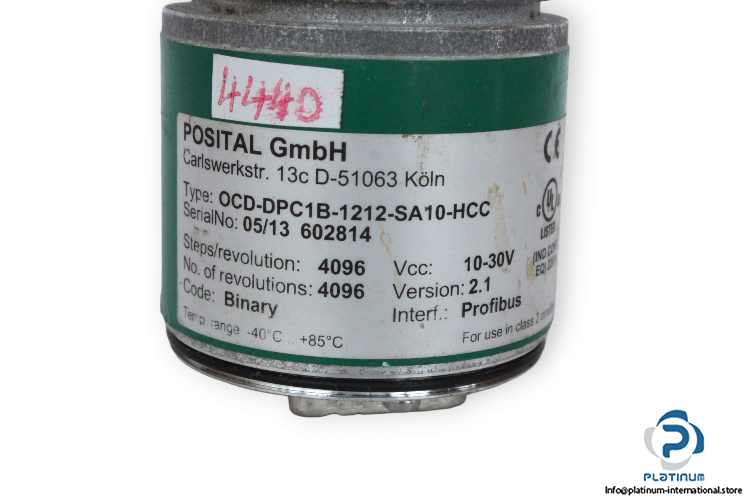

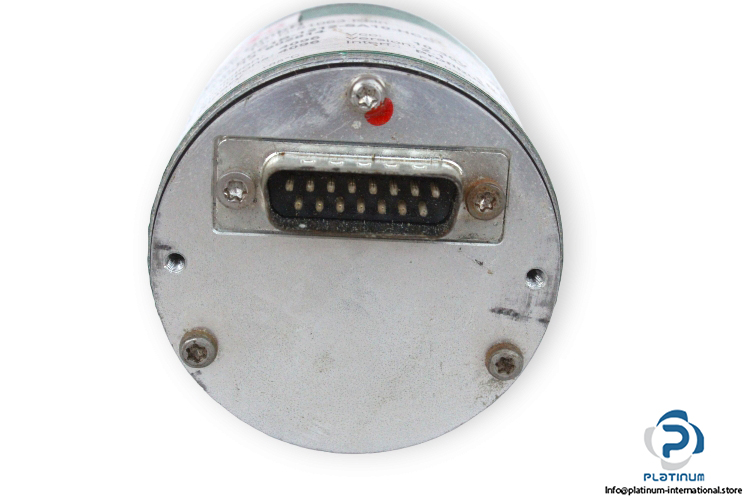

POSITAL GMBH ABSOLUTE ROTARY ENCODER “ OCD-DPC1B-1212-SA10-HCC
This industrial-grade absolute rotary encoder from Posital GmbH offers high-resolution performance with robust environmental protection. Engineered for precision feedback in automation and motion control applications, it delivers dependable and accurate data even in harsh environments.
Manufacturer: Posital GmbH
Type: Absolute Rotary Encoder
Model: OCD-DPC1B-1212-SA10-HCC
Serial No.: 05/13 602814
| Input Voltage | 10 / 30 V DC |
| Power Consumption | ‰¤ 1.5 W |
| Flange Type | Synchro, ø 58 mm (S) |
| Flange Material | Aluminum |
| Interface | Profibus DP |
| Sensor Technology | Optical |
| Shaft Type | Solid, Double Flat, Length = 10 mm |
| Shaft Diameter | 6 mm (0.24³) |
| Shaft Material | Stainless Steel V2A (1.4305, 303) |
| Direction Type | Radial |
| Housing Material | Steel |
| No. of Revolutions | 4096 SPR |
| Protection Class | IP65 |
| Code | Binary |
| Operating Temperature | -40 / +85°C |
