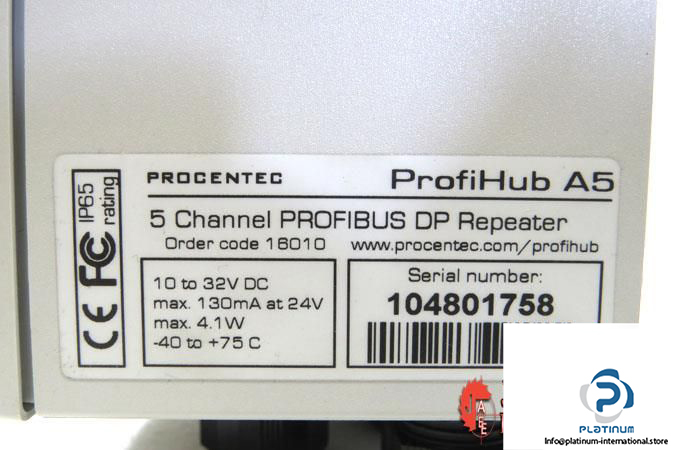

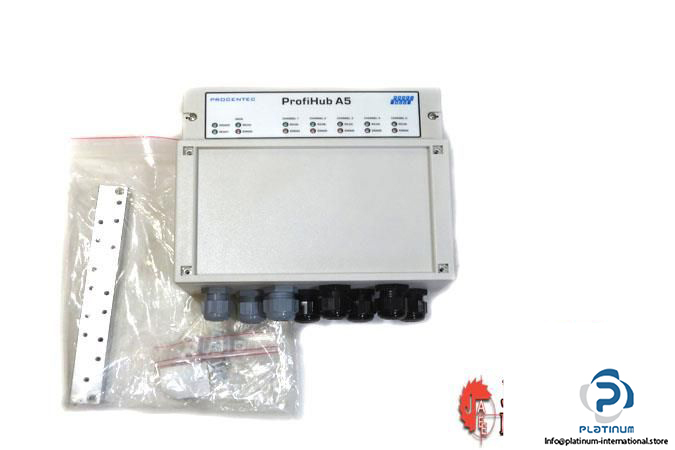

Procentec Profihub A5 Repeater

Manufacturer: PROCENTEC

Type: 5 CHANNEL PROFIBUS DP REPEATER

Model: PROFIHUB A5

Order code: 16010

Nominal supply voltage: 10 … 30 VDC

Current consumption: 130 mA

Power supply: 24 V

Power dissipation: max. 4.1 W

Operating temperature: -40 … +75 °C

Connection speed: 9.6 Kbps – 12 Mbps

Cable lengths: max. 1200 m segment

Connectors: screw terminals

Mounting screws: 4 … 5 mm

Number of devices: max. 31 per channel

Wire diameter: < 2.5 mm²

Dimensions (L X W X H) with glands: 213 X 210 X 95 mm

Protection class: IP65

Condition: New
