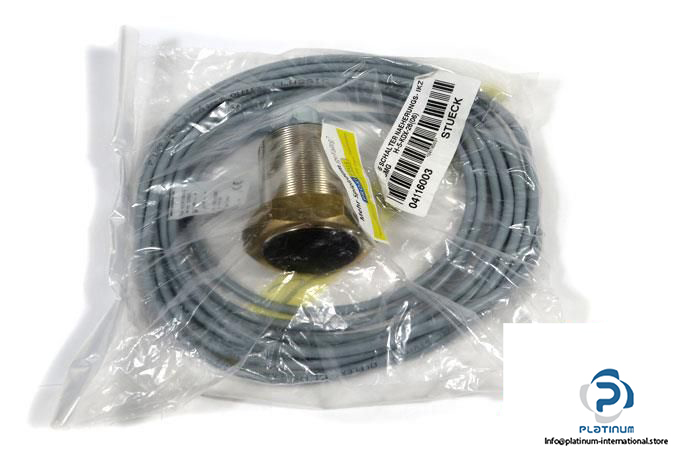

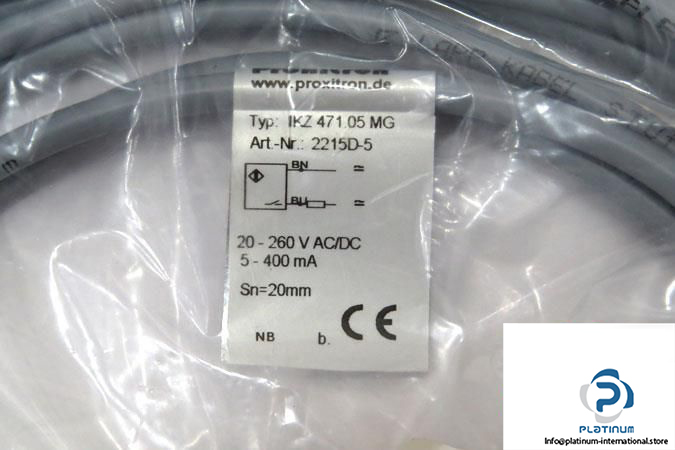

Proxitron IKZ 471.05 MG Inductive Proximity Switch

Manufacturer: PROXITRON

Type: INDUCTIVE PROXIMITY SWITCH

Model: IKZ 471.05 MG

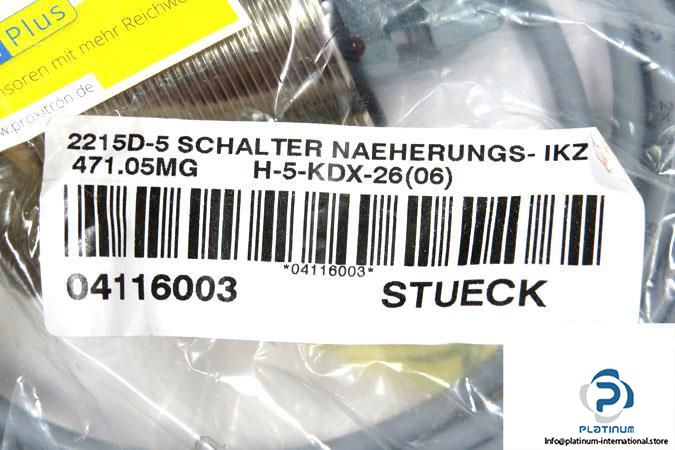

Part No.: 2215D-5

Sensing Range: 20 mm

Operating Voltage: 20 … 260 V AC/DC, at 40 … 440 Hz for AC

Switching frequency: 100 Hz

Load current max.: 0 … 400 mA DC

Output Function: Normally open

Connector type, length: PVC Cable, 5 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -20 … 80°C

Diameter, Housing length: 46 , 70 mm

Material: Nickel-Plated brass

Weight: 0.77 Kg

Supplied Accessories: 2 lock nuts

Condition: New
