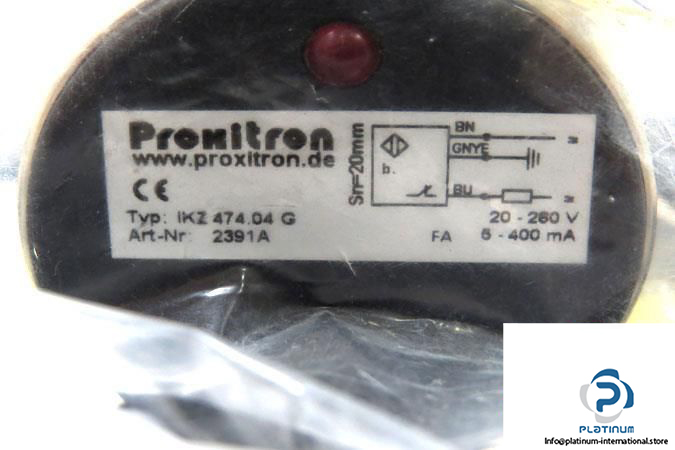

Proxitron IKZ 474.04 G Inductive Proximity Switch

Manufacturer: PROXITRON

Type: INDUCTIVE PROXIMITY SWITCH

Model: IKZ 474.04 G

Art Nr.: 2391A

Sensing Range: 20 mm

Operating Voltage: 20 … 280 V AC/DC

Switching frequency (AC, DC): 20, 100 Hz

Load current max.: 5 … 400 mA

Output Function: Normally closed

Connector type, length: Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 46, 70 mm

Material: Nickel-plated Brass

Mounting: Flush mountable

Condition: New
