Reflex MBS 3000 Pressure Transmitter

Name: REFLEX MBS 3000 PRESSURE TRANSMITTER
SKU: 1083983
Availability: LimitedAvailability

reflex-mbs3000-pressure-transmitter(used)

reflex-mbs3000-pressure-transmitter(used)-1

reflex-mbs3000-pressure-transmitter(used)-2

reflex-mbs3000-pressure-transmitter(used)-3

reflex-mbs3000-pressure-transmitter(used)-4

Gebraucht

Auf Lager1 EinheitVersandbereit

Pressure Transmitter

The REFLEX MBS 3000 pressure transmitter provides 0 to 10 bar measurement range, 4 to 20 mA output, stainless steel AISI 316 L housing, and reliable performance from minus 40 to 85 degree Celsius.

Hersteller

Reflex

SKU

1083983

Kategorie

Pressure Switches

Zustand

Gebraucht

060G1931 20 3000 316L 4 Aisi by connection G1 Industrial mA MBS Measurement Pressure Reflex s Sensor stainless Steel to Transmitter

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

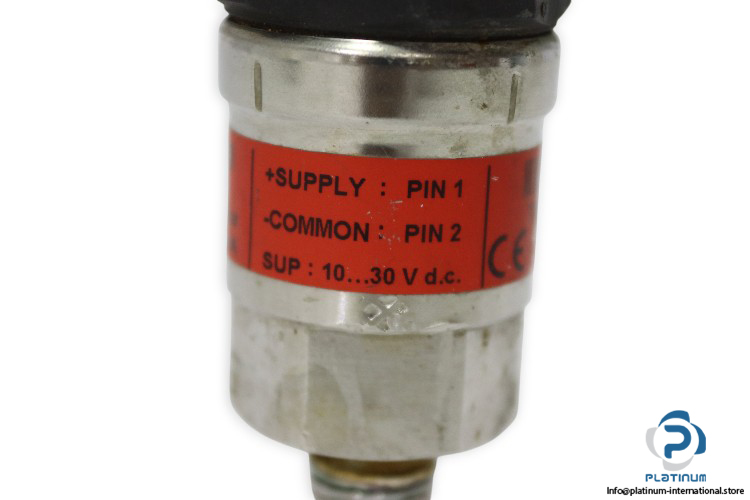

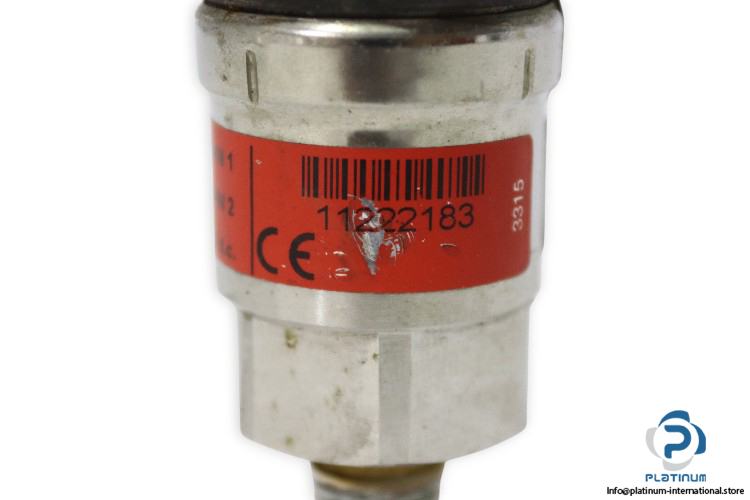

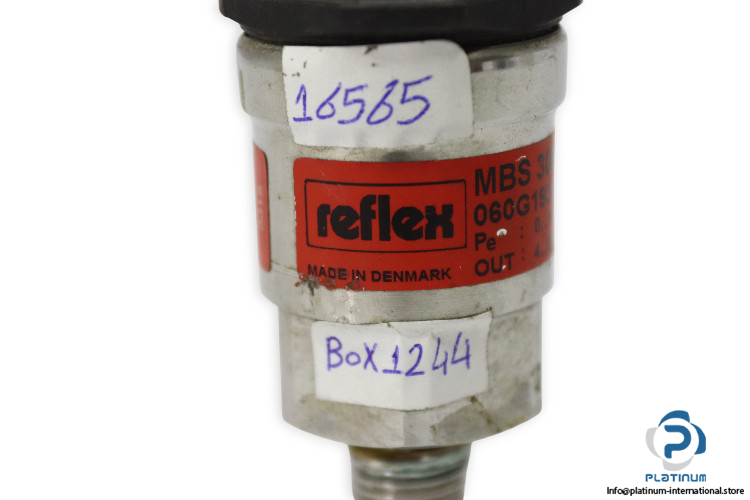

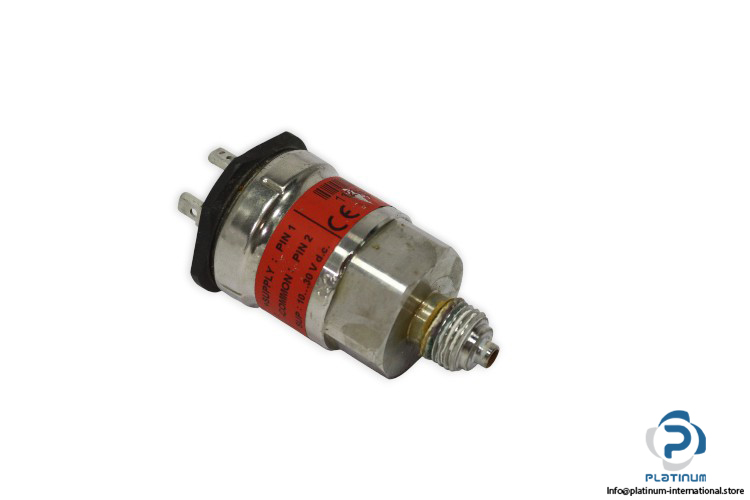

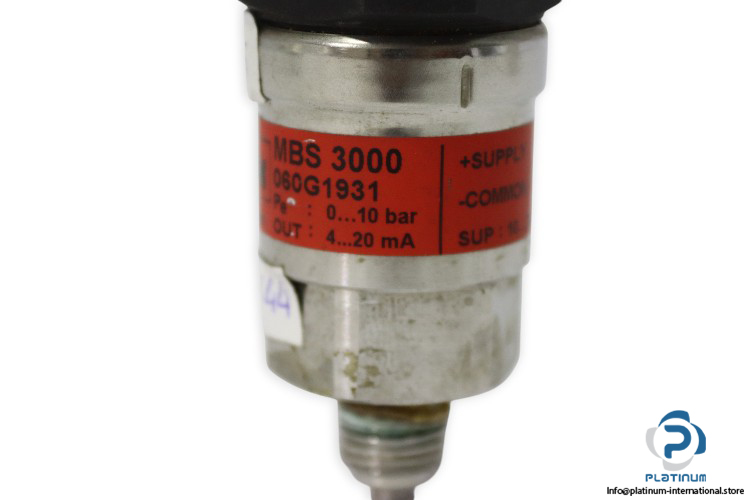

REFLEX MBS 3000 Pressure Transmitter

The REFLEX MBS 3000 Pressure Transmitter is a high-quality industrial sensor designed for accurate pressure measurement in hydraulic, pneumatic, and process systems. Built with stainless steel materials, it provides long-term stability, corrosion resistance, and reliable analog signal output for precise control and monitoring.

Manufacturer: REFLEX

Type: Pressure Transmitter

Model: MBS 3000

Part Number: 060G1931

Serial Number: 11222183

Code: 3315

Materials	Wetted parts EN 10088-1; 1.4404 (AISI 316 L)
Enclosure	EN 10088-1; 1.4404 (AISI 316 L)
Pressure Range (Pe)	0 to 10 bar
Output Signal	4 to 20 mA
Supply Voltage (SUP)	10 to 30 V DC
Electrical Connection	2 pin
Pressure Connection	Male thread standard G1 by 4
Ambient Temperature Range	minus 40 to 85 degree Celsius
