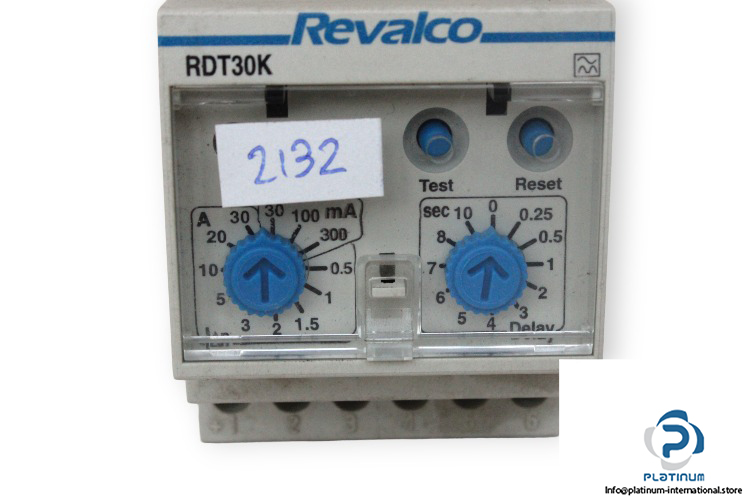

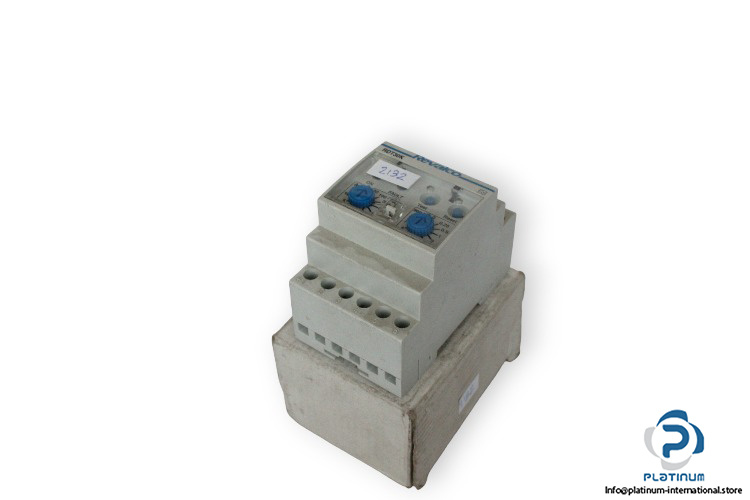

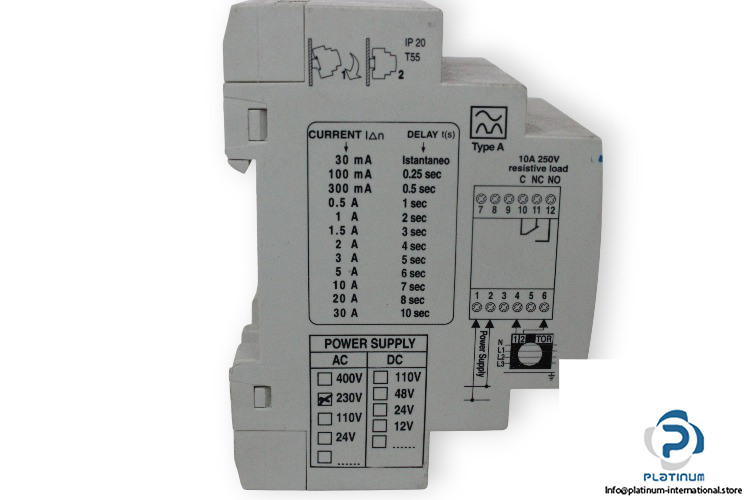

Revalco RDT30K Earth Leakage Relay

Manufacturer: Revalco

Type: Earth Leakage Relay

Model: RDT30K

Power supply: 230 V AC, 40/60 Hz

Trip Current Adjustment:

* 0.5 – 1 – 1.5 – 2 – 3 – 5 – 10 – 20 – 30 A

* 30 – 100 – 300 mA

ime Delay Adjustment: 0 … 10sec

Contact: 1 Changeover contact (Single pole double through)

Output Pulse: NC – C – NO Relay 10A / 250VAC

Operating Temperature: -10 … +55 °C

Degree of protection: IP20 on Terminals, IP40 on Front

Dimensions: 5 x 52.5 x 58 mm
