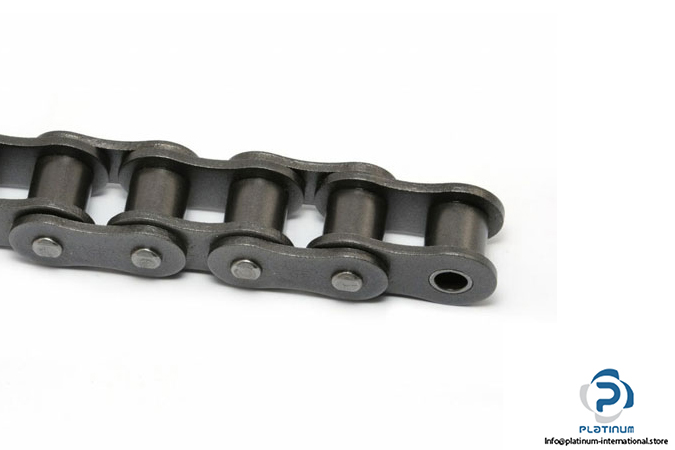

Name: REXNORD 20B-1 SIMPLEX ROLLER CHAIN
SKU: 1001924
Availability: LimitedAvailability

Manufacturer: REXNORD
Type: Simplex Roller Chain
Model: 20B-1

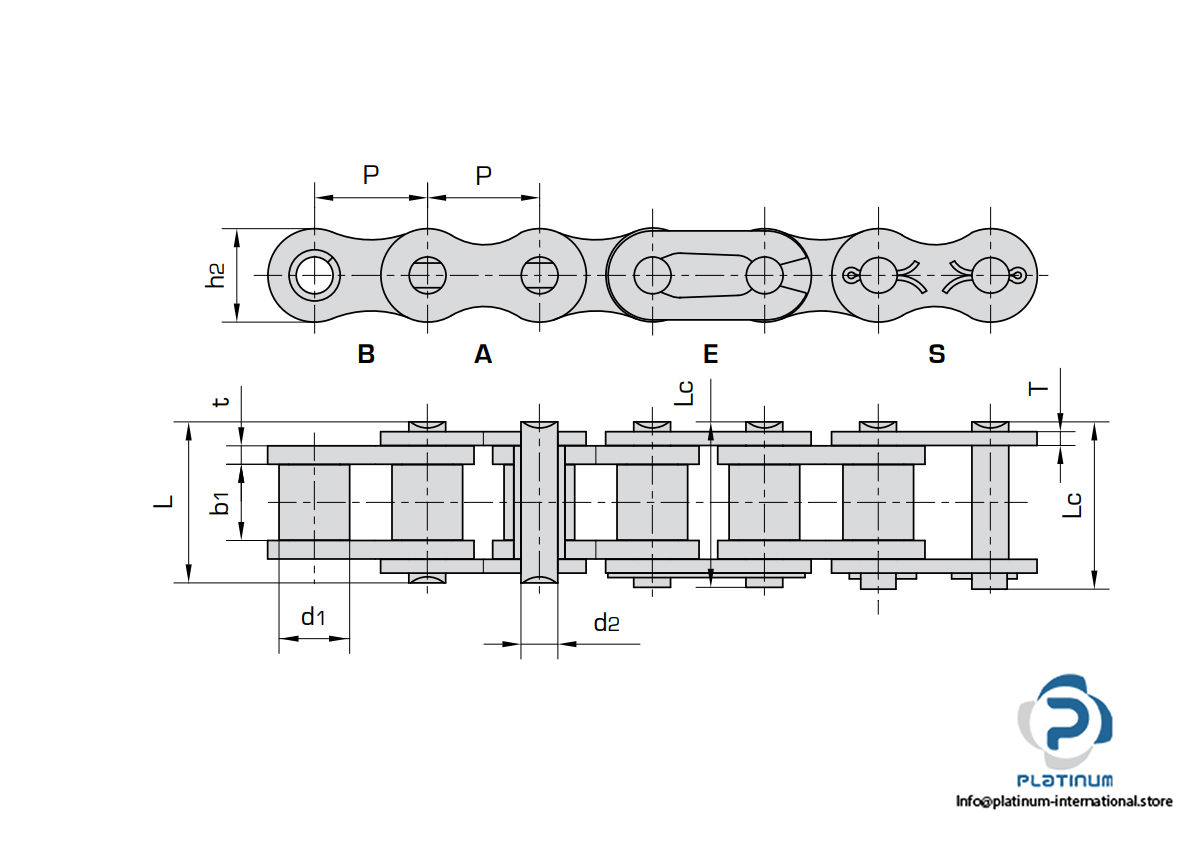

DIN/ISO 606
Chain no. 20B-1
PitchP: 31.75 mm
Roller diameter d1: 19.05 mm
Width between inner plates b1: 19.56 mm
Pin diameter d2 max/L max: 10.19/41.30 mm
Pin length Lc max: 45 mm
Plate thickness T: 4.50/3.5mm
Ultimate tensile strength Q min: 95.0/21591 kN/lbf
Average tensile strength Q0: 112.8 kN
Weight per meter q: 3.7 kg/m

Spezifikation	Wert
Condition	New / Used
Part No.	N/A
Shelf No.	230304
Brand	REXNORD

Preis	Auf Anfrage
Lager	Auf Anfrage verfügbar
Kategorie	Single Strand Roller Chains
Zustand	Neu & Gebraucht
SKU	1001924

Condition	New / Used
Part No.	N/A
Shelf No.	230304
Brand	REXNORD

Rexnord 20B-1 Simplex Roller Chain
