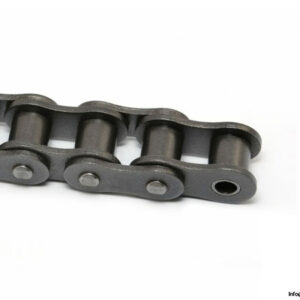

Rexnord 56B-1 Simplex Roller Chain

Manufacturer: REXNORD
Type: Simplex Roller Chain
Model: 56B-1

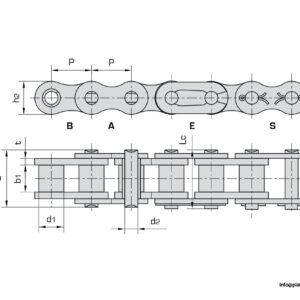

DIN/ISO 606
Chain no. 56B-1
PitchP: 88.9 mm
Roller diameter d1: 53.98 mm
Width between inner plates b1: 53.34 mm
Pin diameter d2 max/L max: 34.32/114.6 mm
Pin length Lc max: 123 mm
Plate thickness T: 13.50/12.0mm
Ultimate tensile strength Q min: 850.0/193180 kN/lbf
Average tensile strength Q0: 940 kN
Weight per meter q: 35.78 kg/m
