Rexroth 167-061-000-0 ISO Cylinder
Neu
Auf Lager1 EinheitVersandbereit
ISO Cylinder
The REXROTH MECMAN 167-061-000-0 ISO Cylinder features a **63 mm bore diameter**, **100 mm stroke length**, and **male piston rod end**, providing reliable performance in industrial pneumatic systems.10100167-061-000-0203/863AirbarboreCompressedconnectionCylinderdiameterDoubleGISOLengthmaleMaxMecmanmmOneOperationPistonPneumaticPressureRexrothRODShapeSquareStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

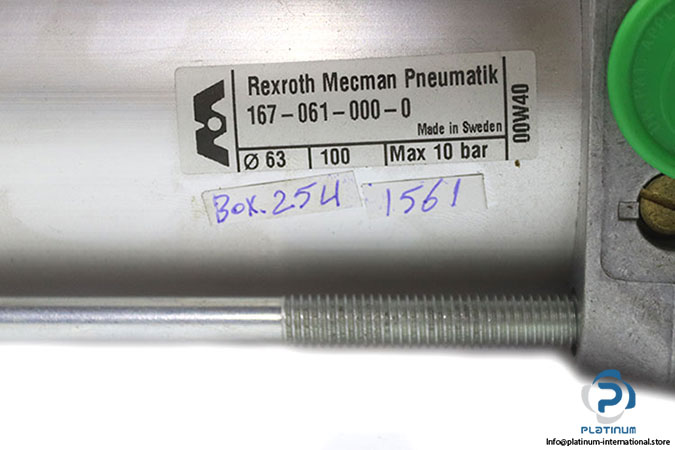

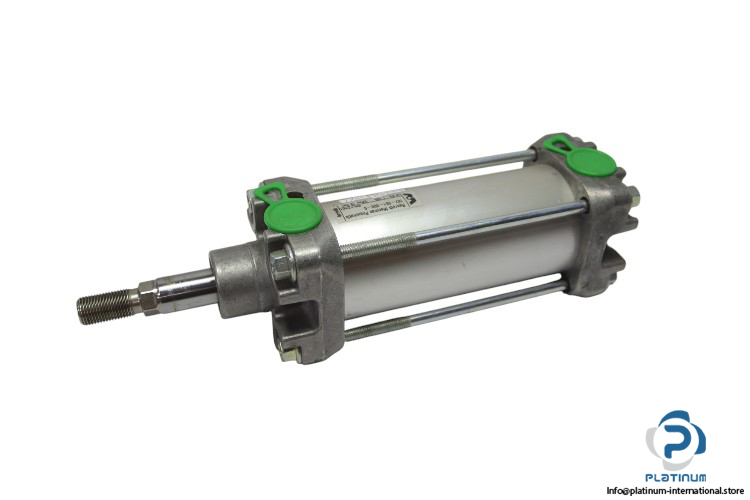

REXROTH MECMAN 167 061 000 0 ISO Cylinder
The REXROTH MECMAN 1670610000 ISO Cylinder is a high-quality pneumatic cylinder designed for reliable operation in industrial environments. Featuring a 63 mm bore diameter and 100 mm stroke length, this cylinder ensures efficient performance with a male piston rod end and square shape design.
Manufacturer: REXROTH MECMAN
Type: ISO Cylinder
Model: 167-061-000-0
| Media | Compressed Air |
| Bore Diameter | 63 mm |
| Stroke Length | 100 mm |
| Bore x Stroke | 63 x 100 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 83 x 215 mm |
| Pneumatic Connection | G 3/8 |
| Max Pressure | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
