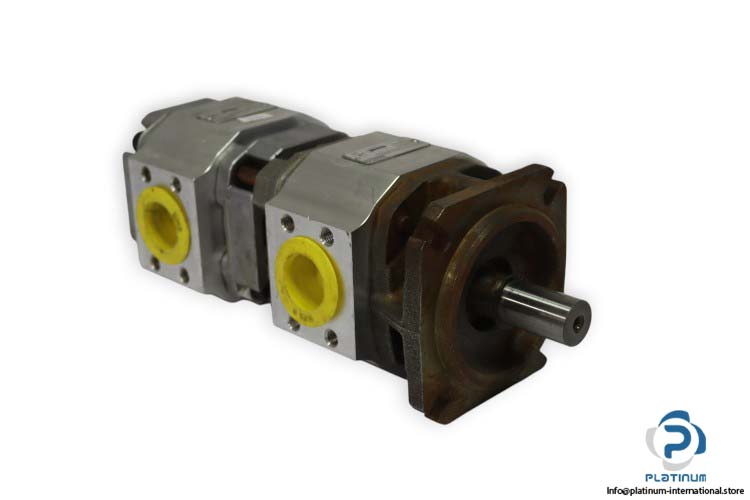

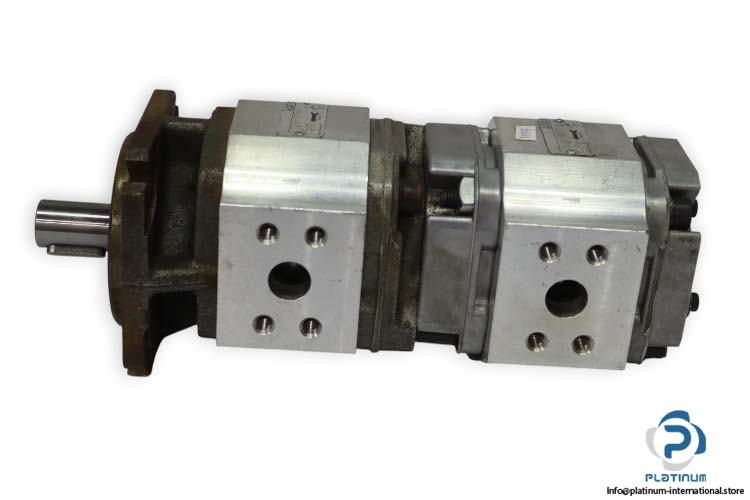

Rexroth 1PF2GF3-31/032RL07VM Double Gear Pump

REXROTH ECKERLE 1PF2GF3-31/032RL07VM + 1PF2GF3-30/032RH07VE4 GEAR PUMPS

This unit combines two Rexroth Eckerle high-performance gear pumps engineered for heavy-duty hydraulic applications. Both pumps feature 32 cm³/rev displacement, clockwise rotation, and compact design for integrated fluid systems. Ideal for synchronized systems requiring double-stage gear pumps.

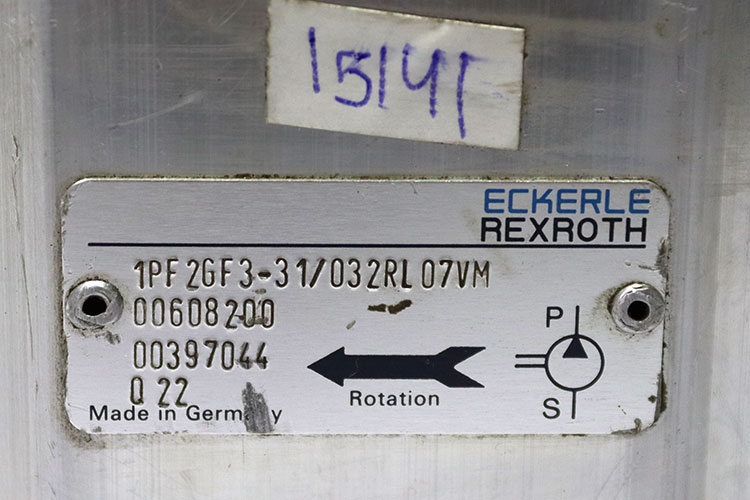

Primary Unit:
Manufacturer: Rexroth Eckerle
Type: Gear Pump
Model: 1PF2GF3-31/032RL07VM
Part No.: 00608200 / 00397044
Code: 022
Connection: 19 & 31 mm
Size: 32
Displacement: 32 cm³/rev
Direction of Rotation: R (Clockwise)

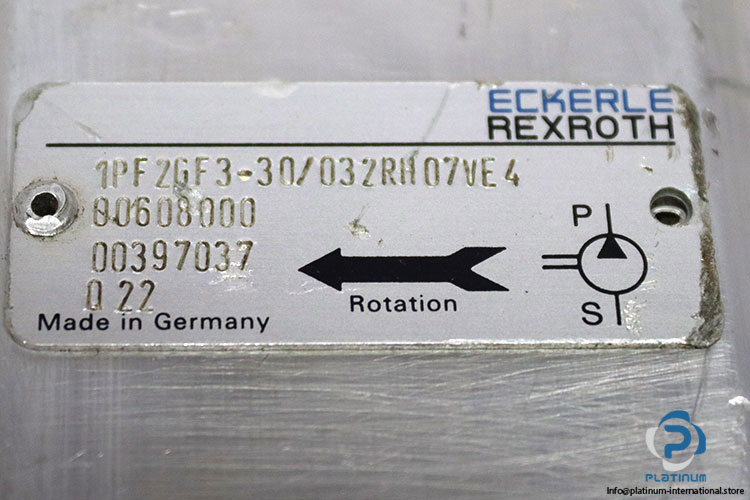

Attached Unit:
Manufacturer: Rexroth Eckerle
Type: Gear Pump
Model: 1PF2GF3-30/032RH07VE4
Part No.: 00608000 / 00397037
Code: 022
Size: 32
Displacement: 32 cm³/rev
Direction of Rotation: R (Clockwise)
