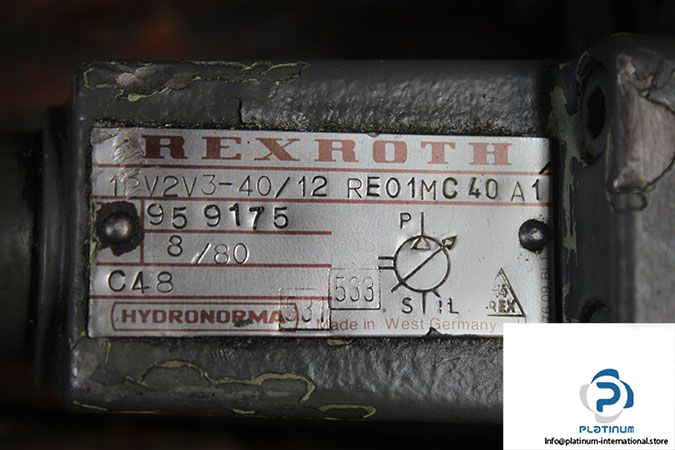

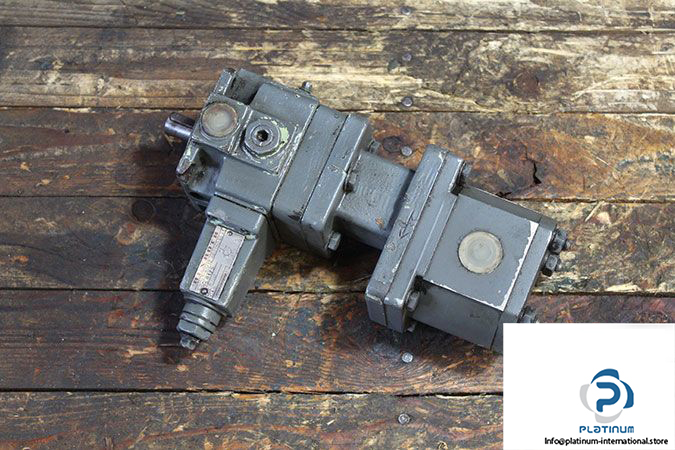

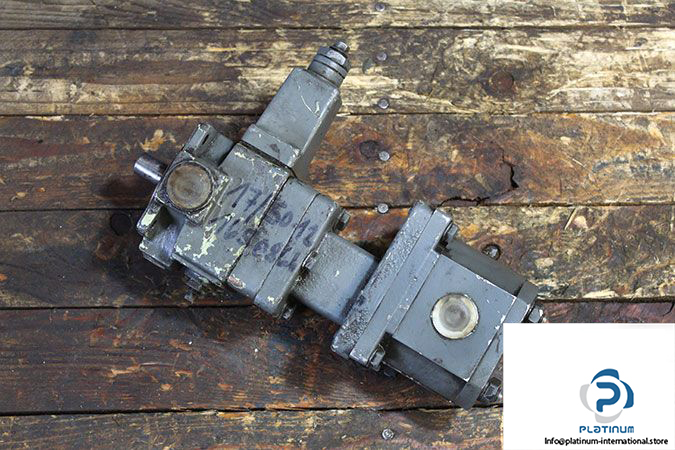

Rexroth 1PV2V3-40/12RE01MC40A1 Variable Vane Pump

Manufacturer: Rexroth

Type: Variable vane pump

Model: 1PV2V3-40/12RE01MC40A1



size: 12

Displacement: 8.5 cm³

Direction of Rotation: Clockwise

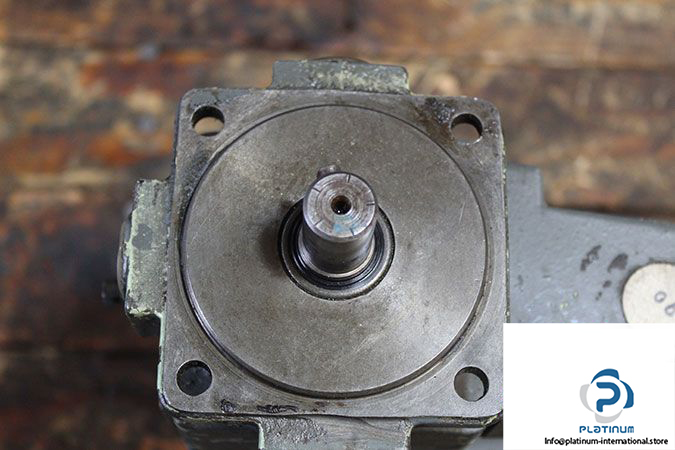

Shaft Diameter: 18 mm

Operating pressure: 40 bar

Drive Speed: 950 …. 1800 rpm

Flow Rate at 1450 rpm: 13 l/m

Torque at 100 bar: 54 N.m

Viscosity Range: 16 ….  160 mm²/s

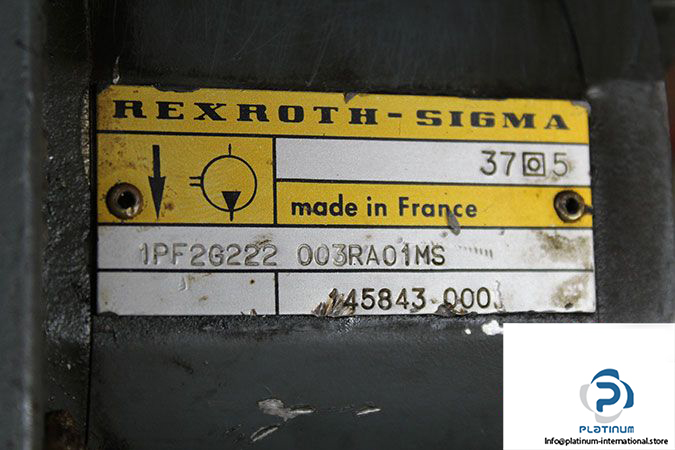

Attachment: REXROTH 1PF2G222 003RA01MS EXTERNAL GEAR PUMP

Manufacturer: Rexroth

Type: External Gear Pump

Model: 1PF2G222 003RA01MS

Weight: 11.5 Kg
