Rexroth 1PV2V4-17/50RE01MC160A1 Variable Vane Single Pump

Manufacturer: Rexroth

Type: Variable Vane Single Pump

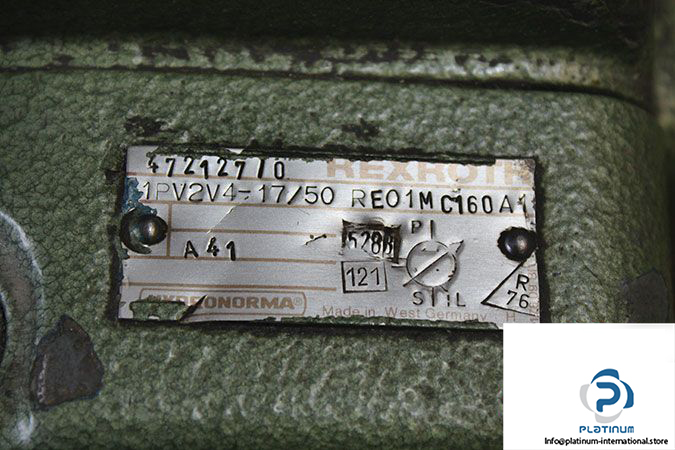

Model: 1PV2V4-17/50RE01MC160A1

size: 50

Displacement: 55.2 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 38 mm

Operating pressure: 160 bar

Speed Range: 900 …. 1800 rpm

Flow Rate at 1450 rpm: 72.5 l/m

Power at 1450 rpm: 23 KW

Torque at 100 bar: 510 N.m

Viscosity Range: 16 ….  160 mm²/s

Attachment: REXROTH 1PV2V4-18/32RG01MC160A1 VARIABLE VANE PUMP

Manufacturer: Rexroth

Type: Variable Vane Pump

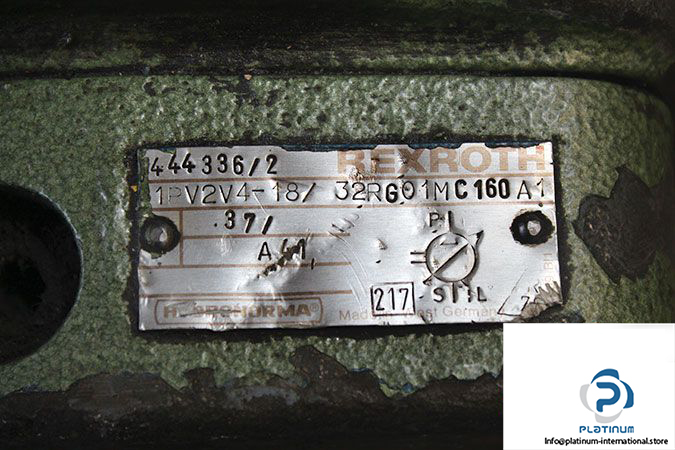

Model: 1PV2V4-18/32RG01MC160A1

size: 32

Displacement: 34.5 cm³

Operating pressure: 160 bar

Flow Rate at 1450 rpm: 46.4 l/m

Power at 1450 rpm: 14.5 KW

Weight: 77 Kg
