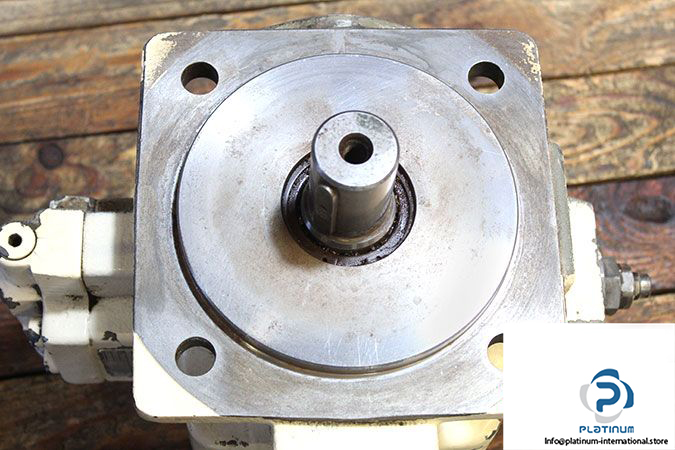

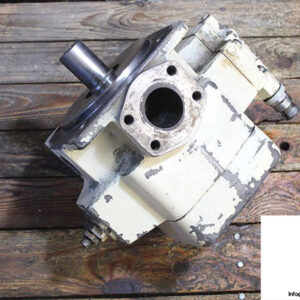

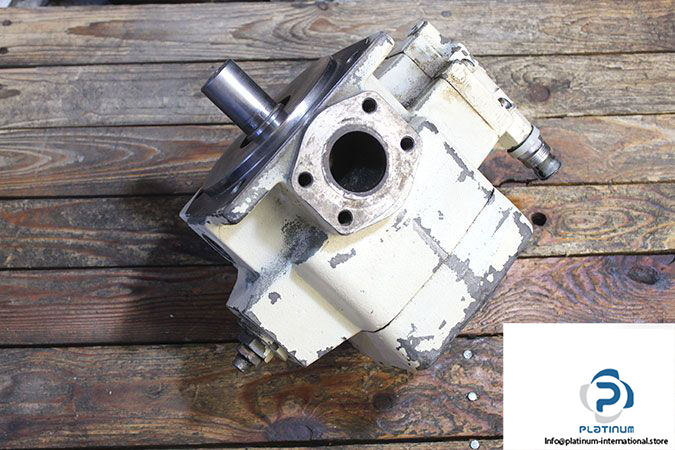

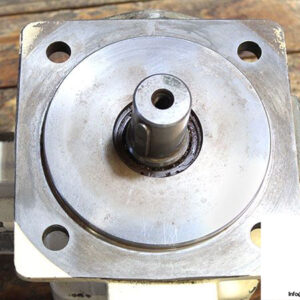

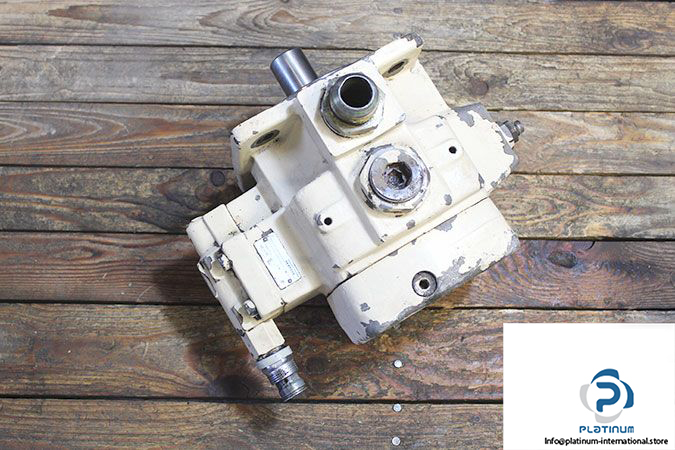

Rexroth 1PV2V4-33/80RA37MC3-16A1 Variable Vane Pump

Manufacturer: Rexroth

Type: Variable vane pump

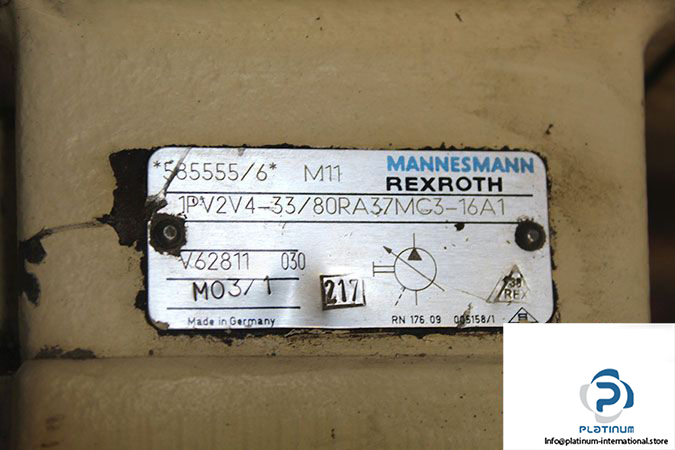

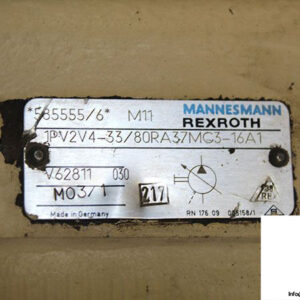

Model: 1PV2V4-33/80RA37MC3-16A1

size: 80

Displacement: 82.8 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 38 mm

Operating pressure: 160 bar

Speed Range: 900 …. 1800 rpm

Flow Rate at 1450 rpm: 116 l/m

Input Power at 1450 rpm: 32 Kw

Max. Torque: 510 N.m

Viscosity Range: 16…160 mm²/s

Weight: 54.5 Kg
