Rexroth 323 512 800 0 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
The Rexroth 323 512 800 0 ISO Cylinder is a square-shaped pneumatic actuator with a 50 mm bore, 80 mm stroke, G 1/4 connection, and double operation, built for industrial use.01/43235051280800ActuatorAirAutomationboreCompressedconnectionCylinderDoubleframeGIndustrialISOmalemmOperationPneumaticRexrothRODSquareStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

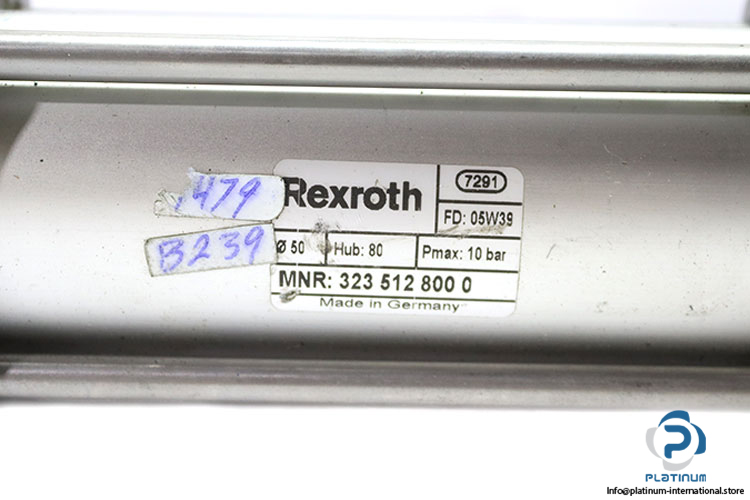

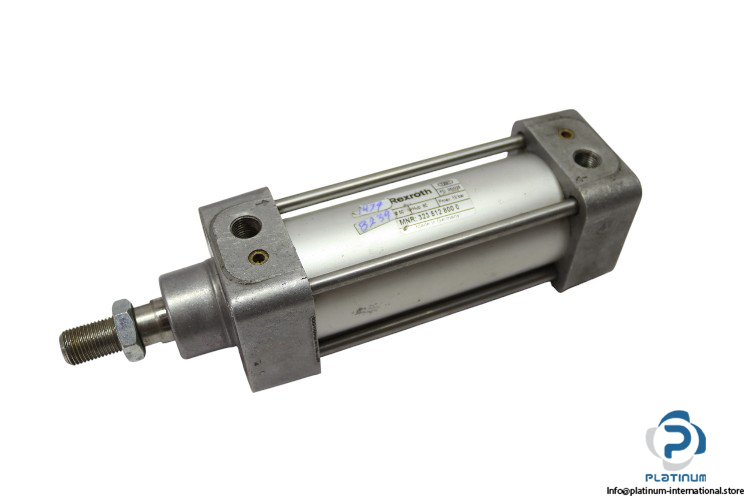

Rexroth 323 512 800 0 ISO Cylinder
The Rexroth 3235128000 ISO Cylinder is a robust and reliable pneumatic actuator built for industrial applications. Designed with a square shape and one-sided rod direction, it delivers consistent performance with a 50 mm bore and 80 mm stroke, operating under compressed air up to 10 bar.
Manufacturer: REXROTH
Type: ISO Cylinder
Model: 323 512 800 0
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke Length | 80 mm |
| Bore x Stroke | 50 x 80 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 66 x 220 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
