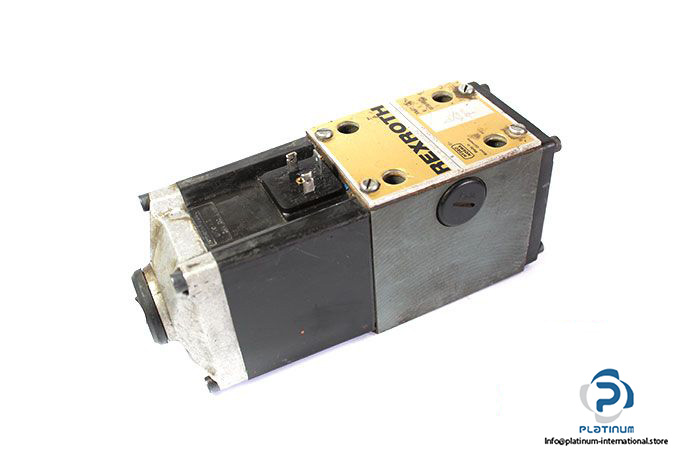

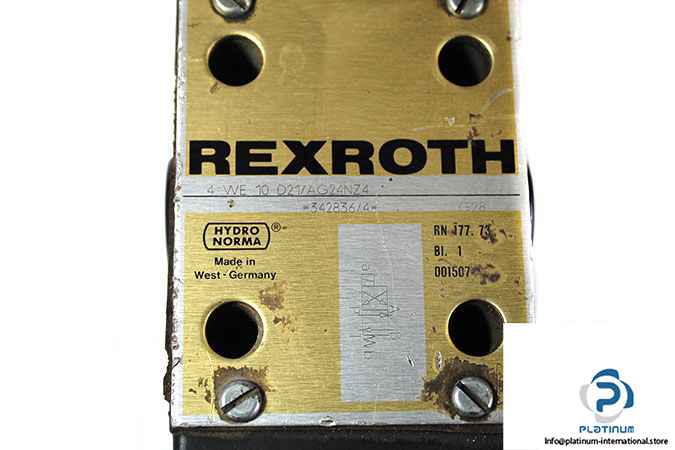

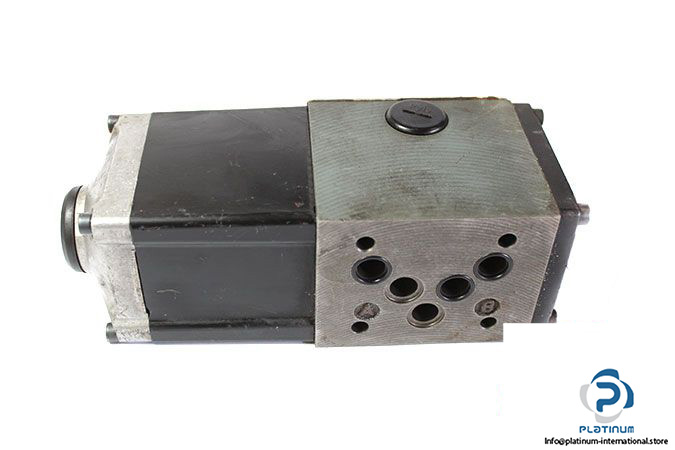

Rexroth 4 WE 10 D21/AG24NZ4 Directional Control Valve

Manufacturer: REXROTH

Type: Directional Control Valve

Model: 4WE10D21/AG24NZ4

Size: 10

Type of Actuation: Electrically

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports A, B, P :315 bar

Maximum Operating Pressure at Port T :210 bar

Maximum Flow Rate: 120 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-plate

Weight: 4.73 kg
