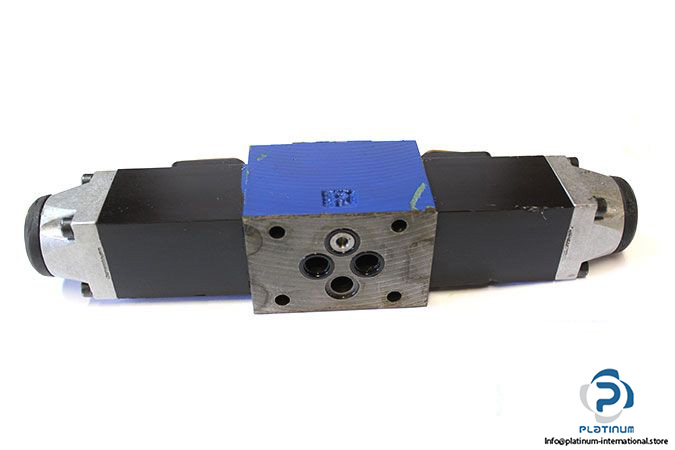

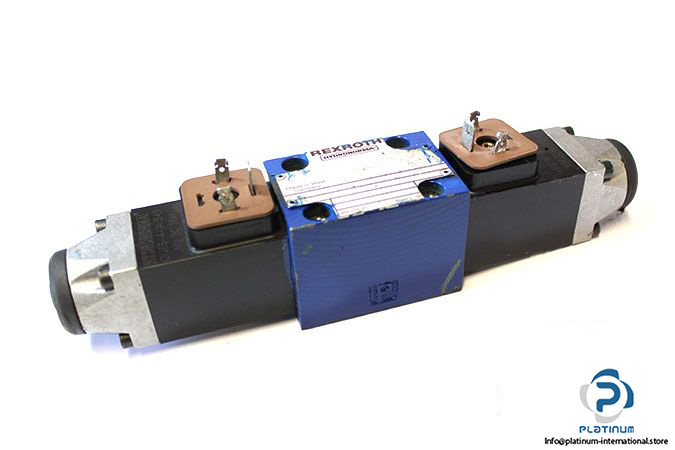

Rexroth 4 WE 6 J52/AG24NZ5L/B08 Directional Control Valve

Name: REXROTH 4 WE 6 J52/AG24NZ5L/B08 DIRECTIONAL CONTROL VALVE
SKU: 989364
Availability: LimitedAvailability

rexroth-4-we-6-j52_ag24nz5l_b08-directional-control-valve-3

rexroth-4-we-6-j52_ag24nz5l_b08-directional-control-valve-2

rexroth-4-we-6-j52_ag24nz5l_b08-directional-control-valve-1

Gebraucht

Auf Lager5 EinheitenVersandbereit

SKU

989364

Kategorie

Directional Control Valves

Zustand

Gebraucht

4/3 Control Directional Hydraulic Rexroth Valve valves Way

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: REXROTH

Type: Directional Control Valve

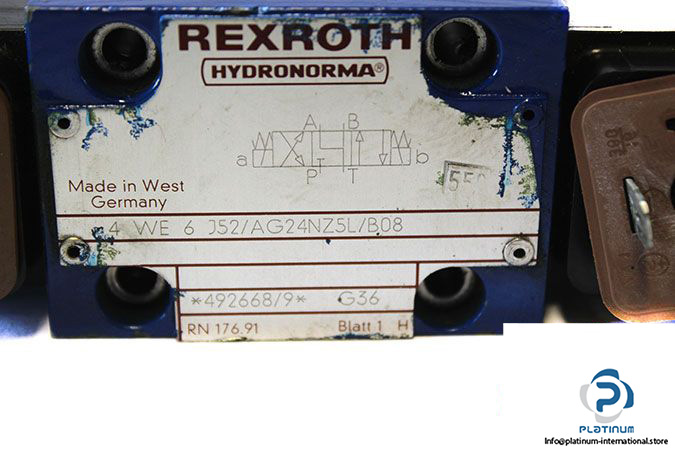

Model: 4WE6J52/AG24NZ5L/B08

Size: 6

Type of Actuation: Electrically

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports A, B, P :350 bar

Maximum Operating Pressure at Port T :210 bar

Maximum Flow Rate: 80 l/min (DC) , 60 l/min (AC)

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-plate

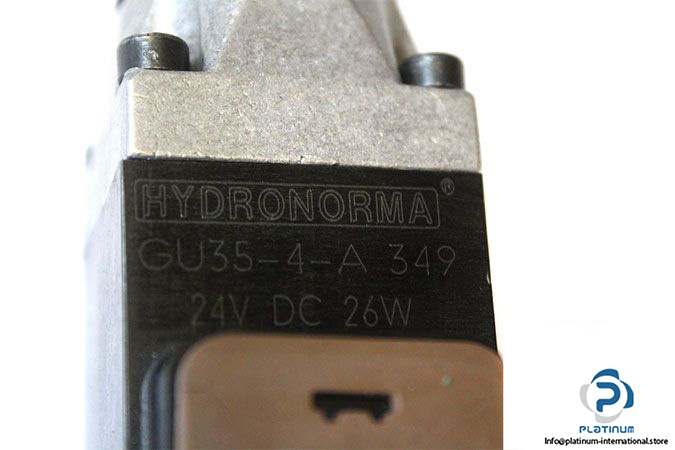

Attachment: REXROTH GU35-4-A 349 SOLENOID COIL

Manufacturer: Rexroth

Type: Solenoid Coil

Model: GU35-4-A

Voltage: 24 VDC

Power: 26 W

Weight: 1.60 kg
