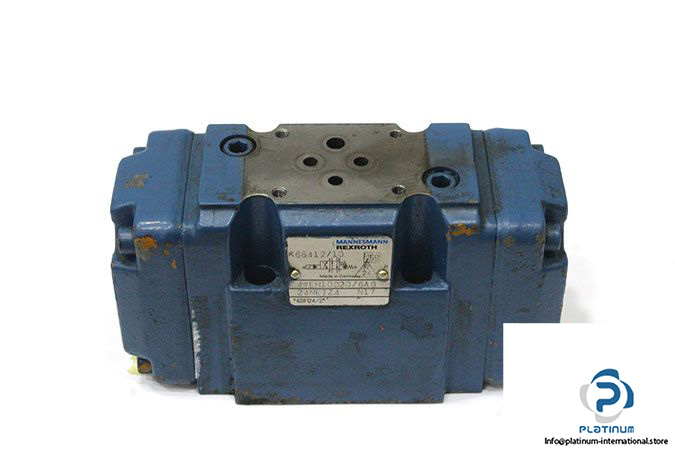

Rexroth 4WEH 10 D20/6AG24NETZ4 Pilot Operated Directional Valve
450,00$
Elektrisch-hydraulisch pilotgesteuertes Richtungsventil von Mannesmann Rexroth mit maximalem Druck von 280 bar, Durchflussrate von 160 l/min und langlebiger NBR-Dichtung für zuverlässige Hydraulikleistung.

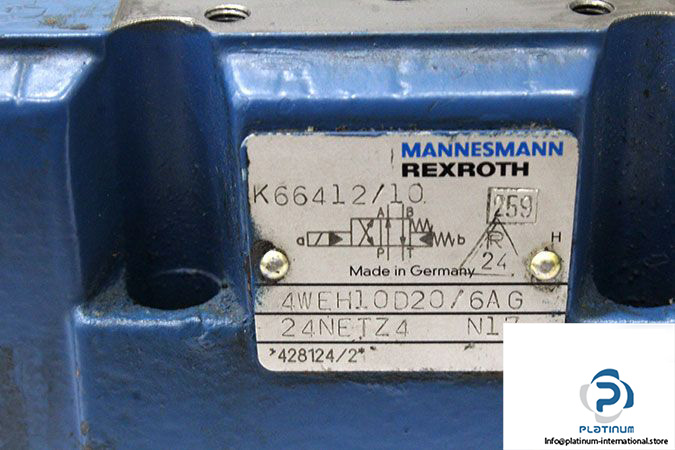

MANNESMANN REXROTH 4WEH10D206AG24NETZ4 PILOT OPERATED DIRECTIONAL CONTROL VALVE
The Mannesmann Rexroth 4WEH 10 D20/6AG24NETZ4 is a high-performance pilot operated directional control valve designed for precise hydraulic flow management in demanding industrial applications. Built for durability and reliable operation, it ensures optimal performance under high pressure and flow conditions.
Manufacturer: Mannesmann Rexroth
Type: Pilot Operated Directional Control Valve
Model: 4WEH 10 D20/6AG24NETZ4
Part No.: 428124/2
| Fluid | Oil |
| Nominal Size | 10 |
| Type of Actuation | Electro-Hydraulic |
| Max. Working Pressure | 280 bar |
| Max. Flow Rate | 160 l/min |
| Hydraulic Connection | Sub-Plate |
| Seals | NBR |
| Fluid Temperature Range | -30 / 80 °C |
| Nominal Voltage per Pilot Coil | 24 V DC |
