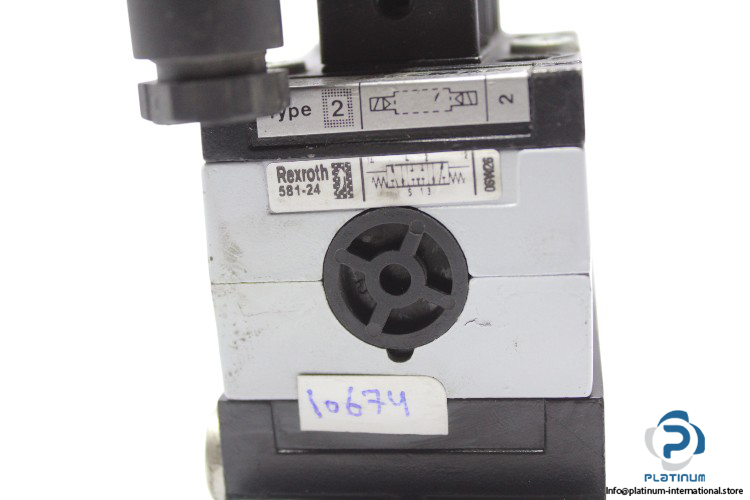

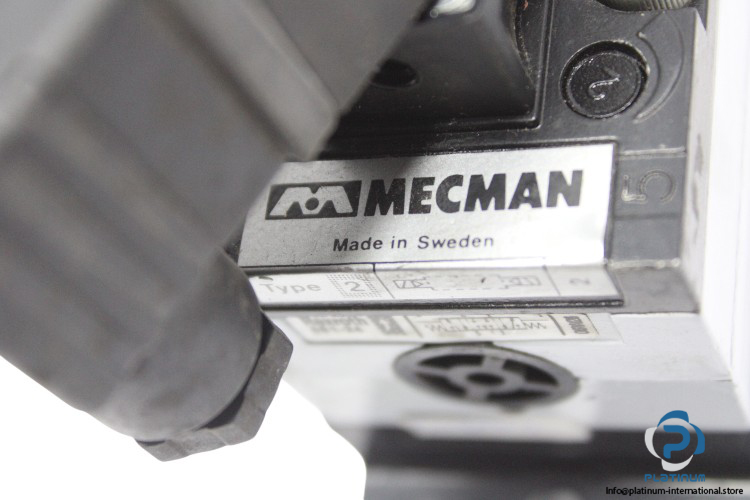

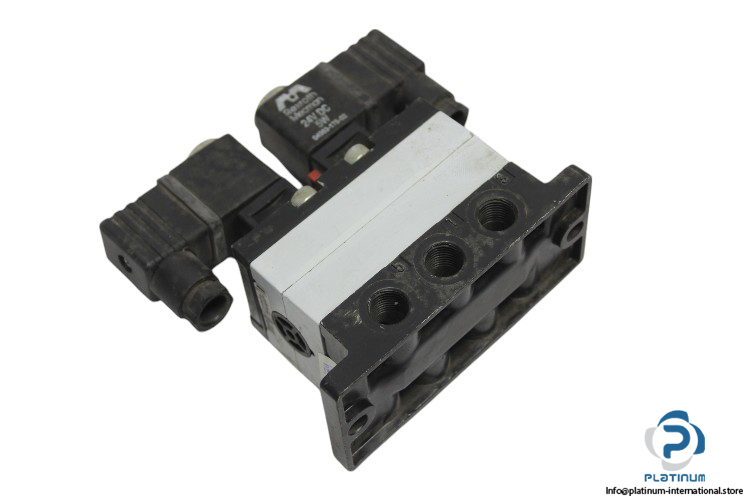

Rexroth 581-24 Double Solenoid Valve
The Rexroth Mecman Double Solenoid Valve 581-24 (attached with Rexroth 04983-175-02 Solenoid Coil) offers reliable air control with 2200 l/min flow, operating pressures from -0.95 to 10 bar, and 24 VDC coil voltage.
REXROTH MECMAN DOUBLE SOLENOID VALVE
The Rexroth Mecman Double Solenoid Valve (Model: 581-24) is designed for high-performance air control applications. It features electrically actuated operation with a nominal flow of 2200 l/min and is capable of handling operating pressures ranging from -0.95 to 10 bar. Ideal for industrial and pneumatic systems, it is attached with a Rexroth 04983-175-02 Solenoid Coil, providing efficient and reliable operation.
Manufacturer: Rexroth Mecman
Type: Double Solenoid Valve
Model: 581-24
Technical Specifications
- Type of Actuation: Electrically
- Operating Pressure: -0.95 to 10 bar
- Fluid: Air
- Max. Particle Size: 50 µm
- Voltage: VDC
- Nominal Flow Qn: 2200 l/min
- Ambient Temperature: -10 to 50 °C
- Pneumatic Connection: G1/4

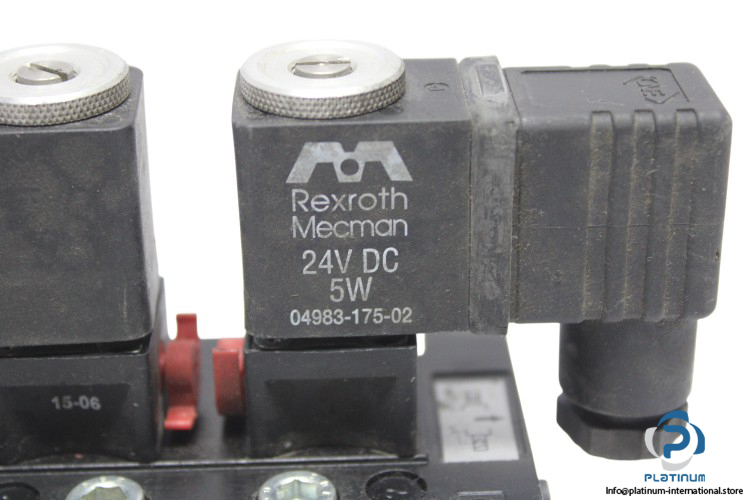

- Attached with: REXROTH 04983-175-02 Solenoid Coil
- Coil Voltage: 24 VDC
- Coil Power: 5 W
