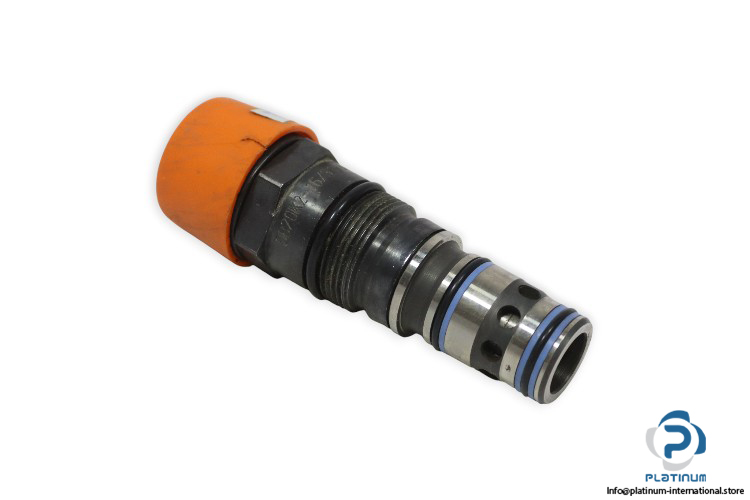

Rexroth DB20K2-16/315 XYU Direct Operated Pressure Relief Valve
Gebraucht
Auf Anfrage verfügbar
89,99$
Druckbegrenzungsventil REXROTH direkt gesteuertes Druckbegrenzungskartuschenventil DB20K2-16/315 XYU mit 315 bar Druckeinstellung, Größe 25 und G3/4 Anschluss für Hydraulikölsysteme.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
REXROTH DB20K2-16/315 XYU Pressure Relief Valve
The REXROTH DB20K2-16/315 XYU is a direct operated pressure relief cartridge valve designed for hydraulic systems using oil as the operating fluid. It provides precise pressure limitation and stable performance under high-pressure operating conditions.
Manufacturer: REXROTH
Type: Direct Operated Pressure Relief Valve
Model: DB20K2-16/315 XYU
| Fluid | Oil |
| Size | 25 |
| Design | Cartridge Valve |
| Adjustment Type for Pressure Adjustment | Sleeve with hexagon and protective cap |
| Pressure Setting | 315 bar |
| Pilot Oil Supply and Pilot Oil Drain | External pilot oil supply, internal pilot oil drain |
| Ambient Temperature Range | “30 / +80 °C |
| Hydraulic Fluid Temperature Range | “30 / +80 °C |
| Maximum Operating Pressure at Ports P, X | 350 bar |
| Maximum Operating Pressure at Port T | 315 bar |
| Max. Back Pressure at Port Y | 250 bar |
| Maximum Flow (Threaded Connections) | 200 L/min |
| Connection | G3/4 |
