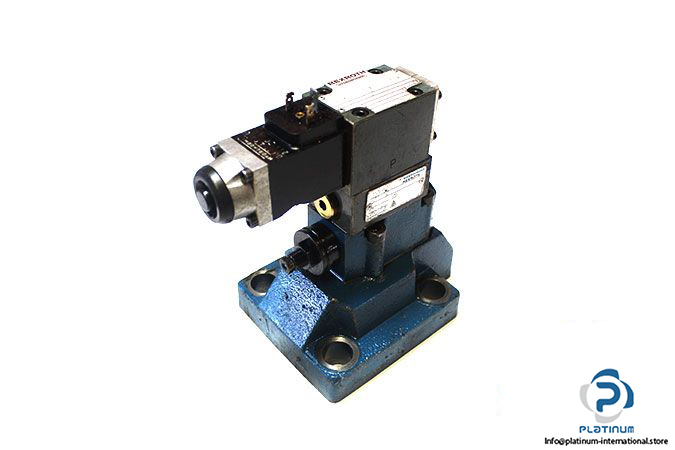

Rexroth Hydronorma DBW 30 B2-50/100-6AG24NZ5L Pilot Operated Pressure Relief Valve
Pilotgesteuertes Überdruckventil Hochkapazitatives NG30-Ventil von Rexroth Hydronorma mit Unterplattenanschluss, DC-Solenoidspule und einem Durchfluss von bis zu 650 l/min zur Regelung des hydraulischen Drucks.
REXROTH HYDRONORMA DBW30B2501006AG24NZ5L PRESSURE RELIEF VALVE
The Rexroth Hydronorma DBW 30 B2-50/100-6AG24NZ5L is a pilot-operated pressure relief valve engineered for high-performance hydraulic systems. Designed to regulate system pressure with precision, it offers robust performance even under high flow and pressure conditions.
Manufacturer: Rexroth Hydronorma
Type: Pressure Relief Valve, Pilot Operated

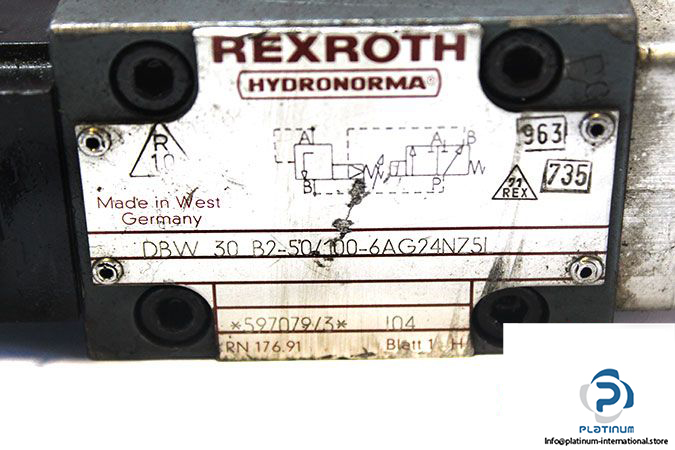

Model: DBW 30 B2-50/100-6AG24NZ5L
Part No.: 325445/5
Attachments
| Fluid | Oil |
| Size | NG30 |
| Adjustment Element | Sleeve with Hexagon and Protective Cap |
| Max Operating Pressure at Ports P, X | 350 bar |
| Max Operating Pressure at Port T | 315 bar |
| Max Backpressure at Ports Y, T | 210 bar (DC solenoid), 160 bar (AC solenoid) |
| Max Flow Rate | 650 l/min |
| Ambient Temperature Range | “30 to 80 °C |
| Viscosity Range | 10 to 800 mm²/s |

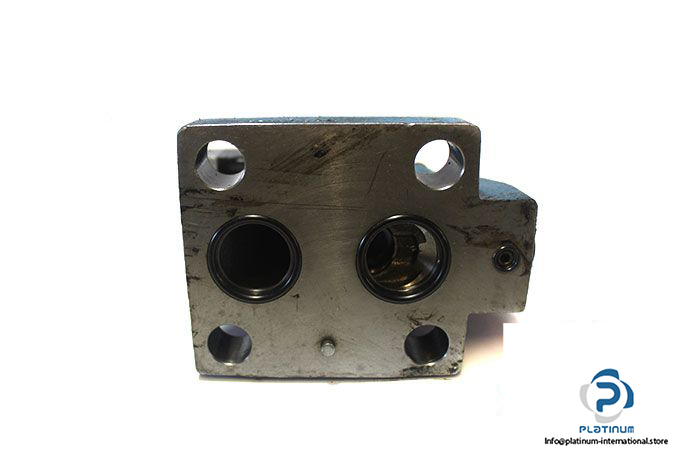

| Connection | Sub-plate |

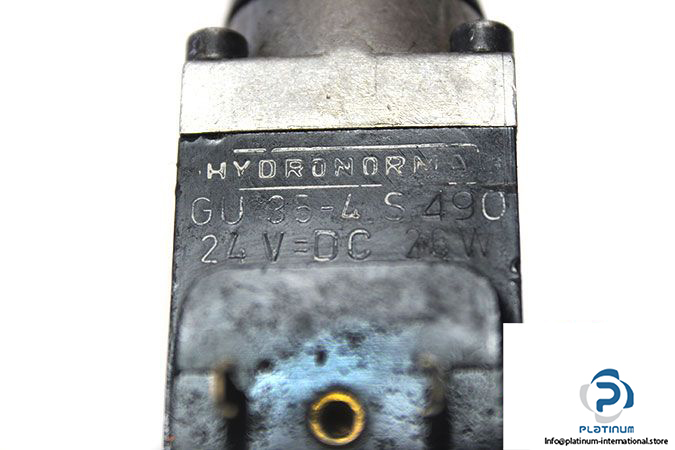

| Solenoid Coil | HYDRONORMA GU35-4-S 490 |
| Supply Voltage | 24 V DC |
| Power Consumption | 26 W |

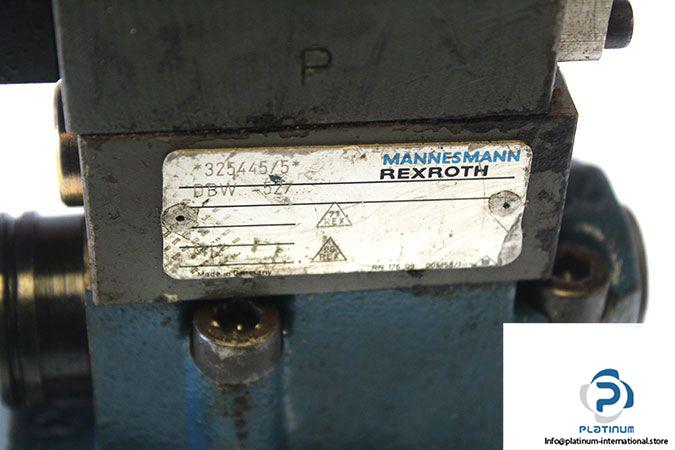

| Sub Plate | MANNESMANN REXROTH DBW-527 |
