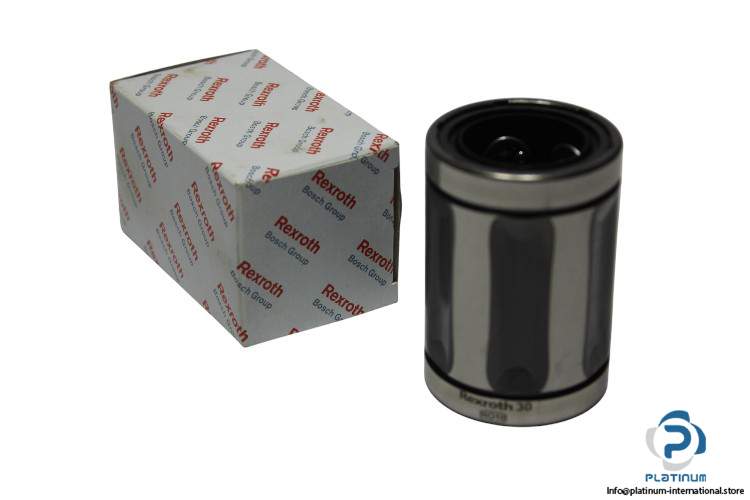

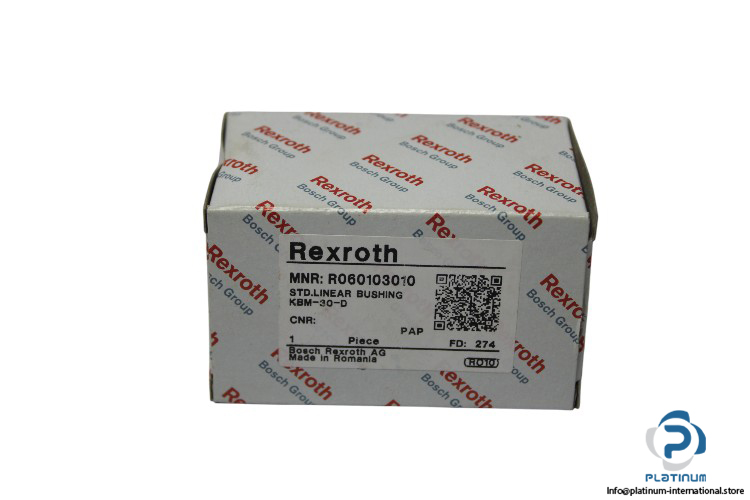

Rexroth R060103010 Standard Linear Bushing

Rexroth Standard Linear Bushing R060103010

The Rexroth Standard Linear Bushing R060103010 offers precision and reliability for linear motion applications. Designed with a close type construction and an integrated wiper seal, it ensures smooth and efficient operation in various industrial environments. With a maximum dynamic load rating of 2980 N and a permissible linear speed of 2.5 m/s, this bushing is an ideal choice for demanding applications.

🔧 Technical Specifications:

• Manufacturer: Rexroth
• Type: Standard Linear Bushing
• MNR: R060103010
• Shaft Diameter (d0): 30 mm
• Outer Diameter (D): 47 mm
• Length: 68 mm
• C1: 51.7 mm
• C2: 1.85 mm
• D1: 44.5 mm
• Design Type: Close
• Maximum Dynamic Load Rating (C): 2980 N
• Maximum Acceleration (a max): 100 m/s²
• Breakaway Force: 18 N
• Maximum Linear Speed (v max): 2.5 m/s
• Seals: 1 integrated wiper seal
• Permissible Ambient Temperature: -10 / +80 °C

Experience precision and durability with Rexroth’s standard linear bushings, engineered to meet rigorous industrial demands.
