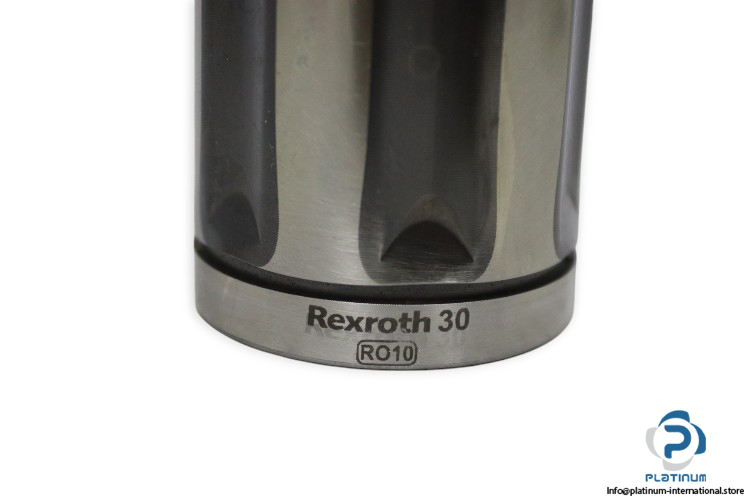

Rexroth R063203005 Standard Linear Bushing
Standard Linearlager (offen) Das Rexroth Standard Linearlager (R063203005) verfügt über einen Wellen-Ø von 30 mm, eine dynamische Traglast von 2890 N und ein vollständig abgedichtetes Design, das leistungsstarke lineare Bewegungen mit Stabilität und Präzision für industrielle Anwendungen bietet.
Rexroth Standard Linear Bushing (Open)

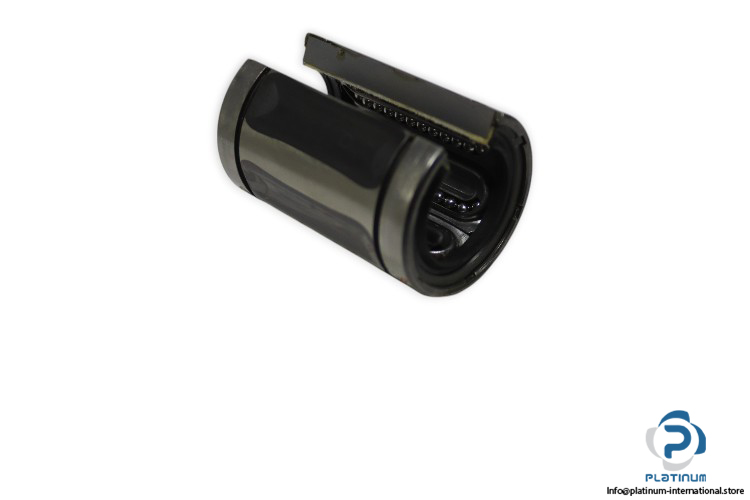

The Rexroth Standard Linear Bushing (Open) (MNR: R063203005) is designed for smooth, precise linear motion in various industrial applications. With its open design, fully sealed feature, and high load capacity, it offers reliable performance in both dynamic and static conditions.
Manufacturer: Rexroth
Type: STANDARD LINEAR BUSHING (open)
Model: R063203005
This Rexroth standard linear bushing offers precise linear motion, exceptional load ratings, and reliable performance for systems that demand durability and smooth operation under various environmental conditions.

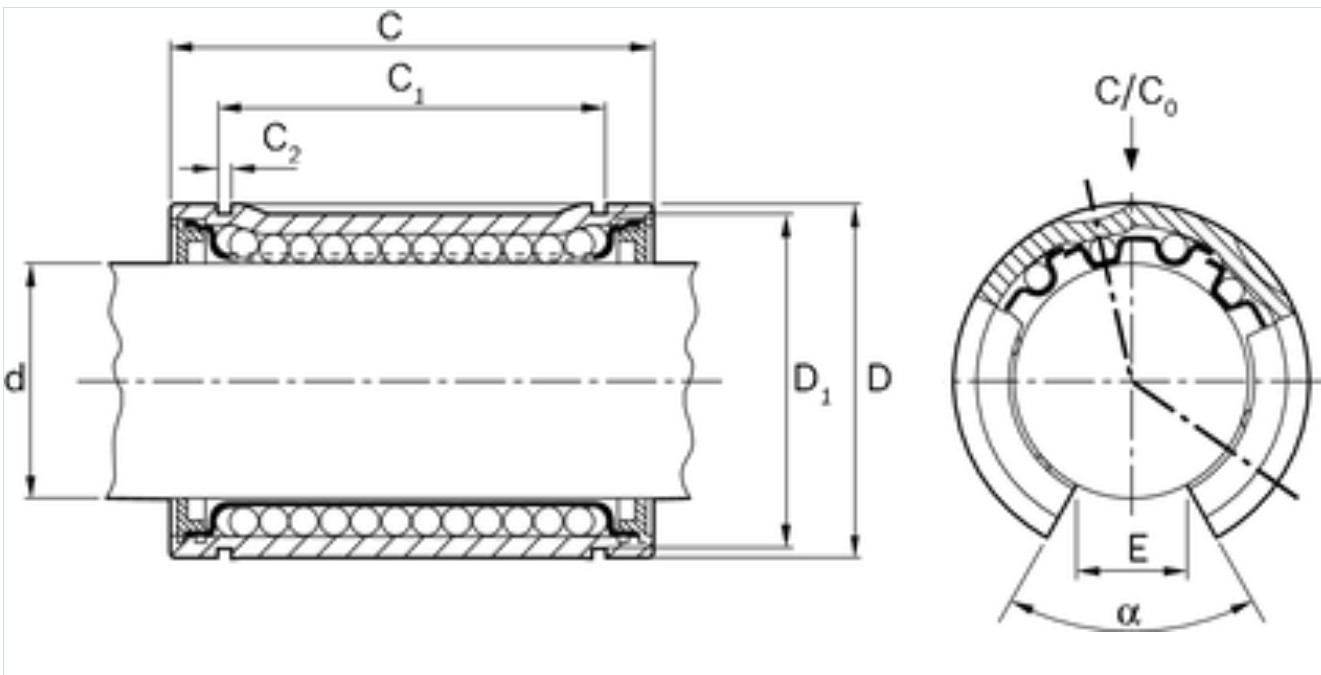

| Shaft Diameter (d0) | 30 mm |
| D | 47 mm |
| C | 68 mm |
| C1 | 51.7 mm |
| C2 | 1.85 mm |
| D1 | 44.5 mm |
| E | 12.5 mm |
| Design Type | Open |
| Dynamic Load Rating (C) | 2890 N |
| Static Load Rating (C0) | 2390 N |
| Angle α | 50° |
| Sealing | Fully sealed |
| Maximum Acceleration (a max) | 100 m/s² |
| Maximum Permissible Linear Speed (v max) | 2.5 m/s |
| Permissible Ambient Temperature | -10 to +80 °C |
