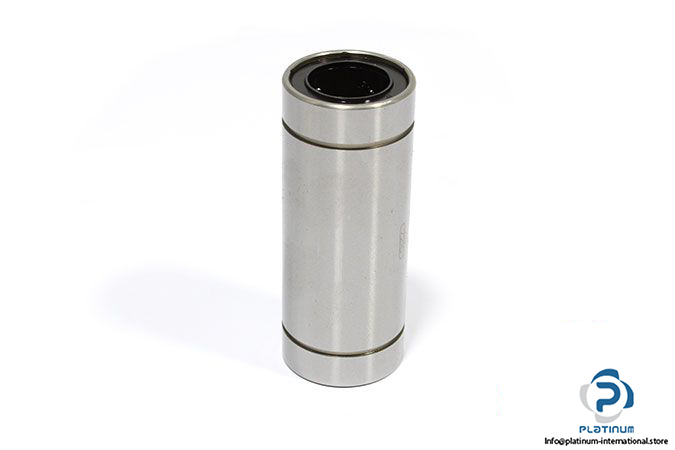

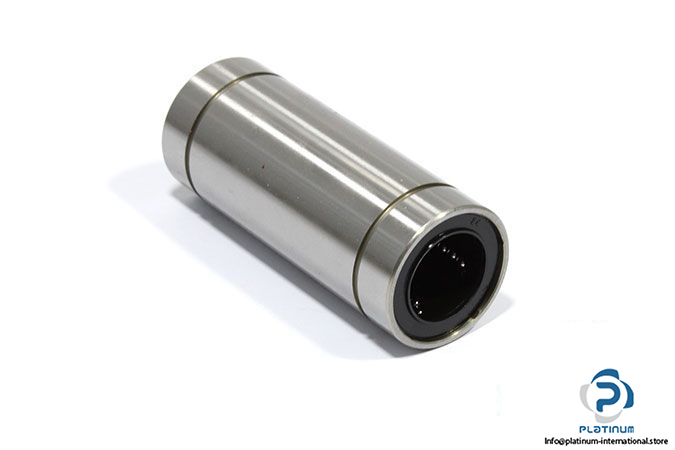

Rexroth R065052000 Standard Linear Bushing

Manufacturer: BOSCH REXROTH

Type: STD.LINEAR BUSHING KBMT-20-DD

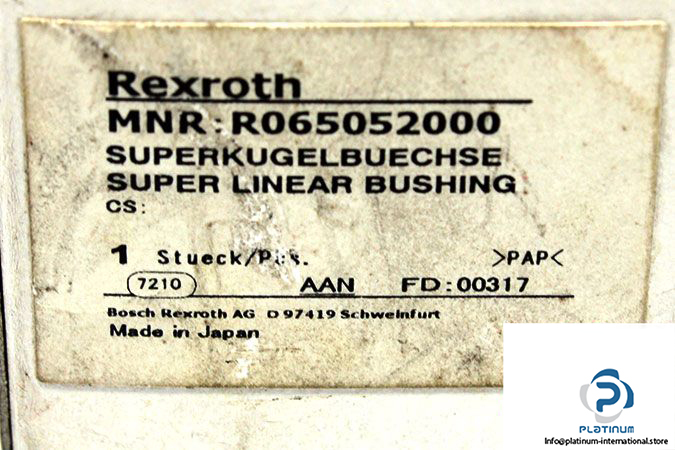

MNR: R0650 520 00

Shaft diameter d: 20 mm

Design type: Tandem

Rows of Balls: 5

Friction Force F_R: 4 N

Breakaway Force: 12 N

Maximum Acceleration Travel a_max: 100 m/s²

Max. Permissible Speed v_max: 2.5 m/s

Static longitudinal moment load capacity M_L0: 26 Nm

Dynamic Load Capacity:

C_min: 1100 N

C_max: 1300 N

Static Load Capacity:

C_0min: 1720 N

C_0max: 2500 N

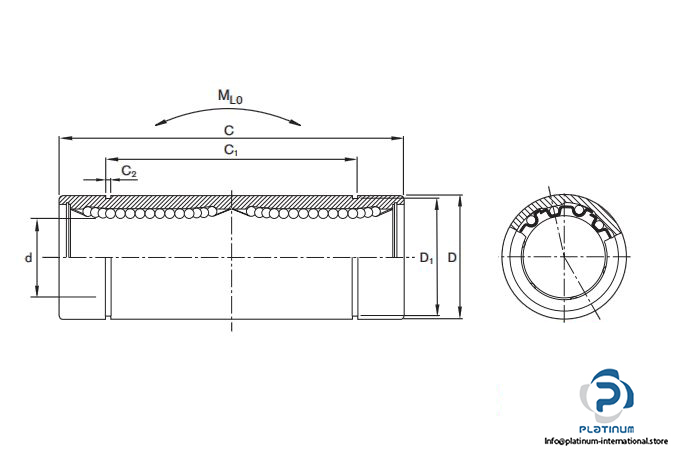

Dimensions:

D: 32 mm

C: 80 mm

Seals: With two integrated wiper seals

Permissible Ambient Temperature: -10 … +80 °C

Weight: 0.18 kg
