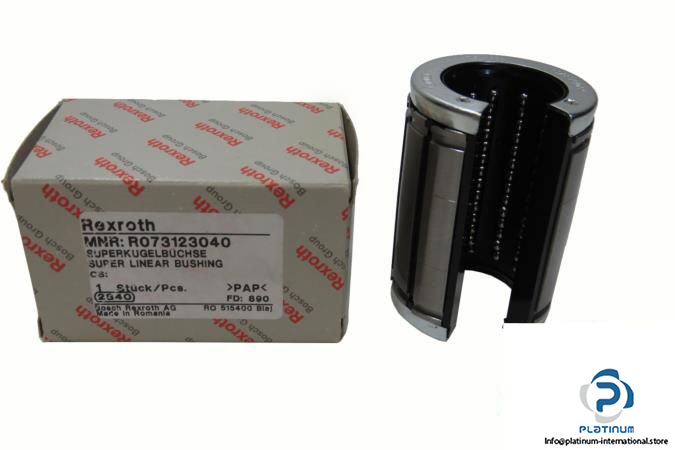

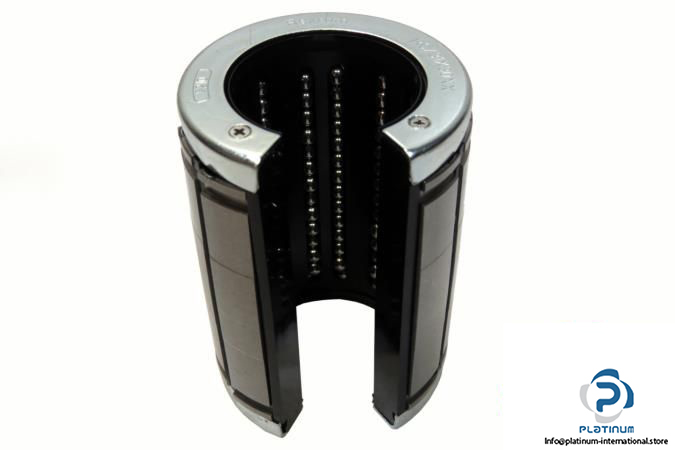

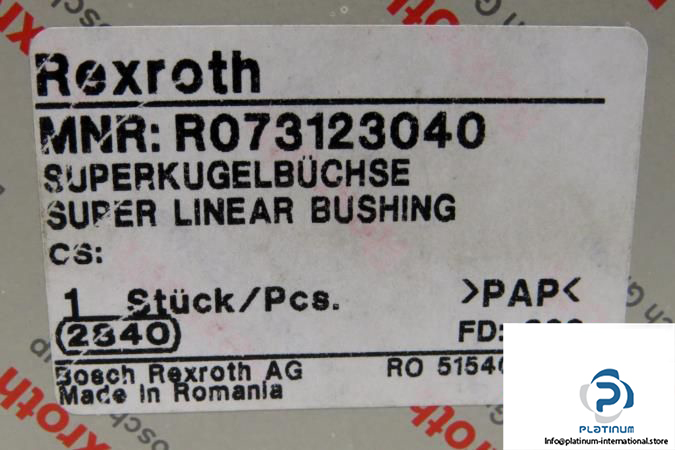

Rexroth R073123040 Super Linear Bushing SH
Neu
Auf Anfrage verfügbar
49,99$
SUPER LINEAR BUSHING Rexroth R0731 230 40 KBSH Superlineares Lager mit 30 mm Wellendurchmesser, 6 Kugelreihen, dynamische Tragzahl 6300 N, statische Tragzahl 7180 N und Geschwindigkeit bis zu 5 m/s.
230304063007180bearingBushingDynamicIndustrialKbshLinearLoadmmMotionNOpenR0731RexrothshaftStaticSuperSystemType
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Rexroth R0731 230 40 Super Linear Bushing KBSH
The Rexroth R0731 230 40 KBSH Super Linear Bushing is designed for precise linear motion with high load capacity and durability. Featuring a 30 mm shaft diameter, six rows of balls, and robust sealing, it ensures smooth operation even under demanding industrial conditions.
Manufacturer: Rexroth
Type: Super Linear Bushing KBSH
MNR: R0731 230 40
| Shaft Diameter (d0) | 30 mm |
| Rows of Balls | 6 |
| Design Type | Open |
| Maximum Permissible Linear Speed (vmax) | 5 m/s |
| Maximum Acceleration (amax) | 150 m/s² |
| Breakaway Force | 9 N |
| Dynamic Load Rating (C) | 6300 N |
| Static Load Rating (C0) | 7180 N |
| Dimensions (D) | 47 mm |
| Dimension (C) | 68 mm |
| Dimension (C1) | 51.7 mm |
| Dimension (D1) | 44.5 mm |
| Dimension (C2) | 1.85 mm |
| Seals | Two seals |
| Permissible Ambient Temperature | -20 / +80 °C |
